Aavara Hdmi OverIP Transmitter

The Aavara HDMI Over IP Transmitter PB5000 series offers a premium HD video distribution solution ideal for digital out-of-home (DOOH) advertising and signage deployments. It delivers stunning 1080p Full HD video and CD-quality audio over a Gigabit Ethernet network, ensuring crystal-clear images and sharp text for maximum visual impact.

Key Features

• 1080p Ultra High Quality video transmission with up to 16 multicast groups
• Flexible and scalable HDMI 1080p broadcasting over Gigabit Ethernet LAN
• Supports 1-to-1, 1-to-many, and multicast broadcasting architectures without increasing LAN bandwidth load
• Multicast group support via managed Gigabit switches with 802.1Q VLAN and IGMP functions (up to 16 groups)
• Easy multicast group matching with 16 sets of Class C IP dip switch configuration on both sender and receiver
• IR Pass-Thru function for remote control in 1-to-1 extender configurations
• Plug and play setup with simple dip switch channel matching—no complex network configuration required

Specifications

• HDMI Specification: 1.3 Compatible
• DVI Specification: 1.0 Compliant
• HDCP Specification: 1.1 / 1.2 Compliant

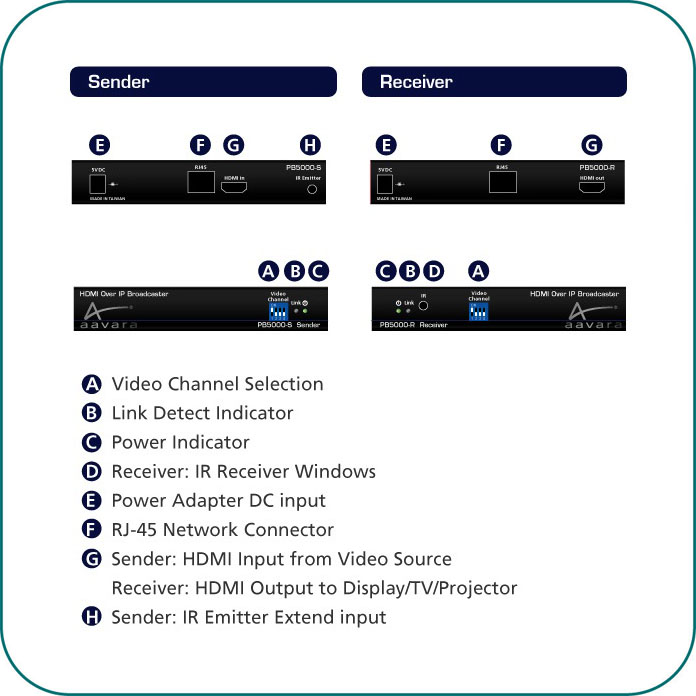

• Sender Connectors: Power adapter input, RJ45 Ethernet, IR emitter connector, HDMI input
• Receiver Connectors: Power adapter input, RJ45 Ethernet, HDMI output
• Receiver HDMI Audio Output: Stereo L/R, 16-bit, 48kHz
• Supported HDMI Video Resolutions: 480i/p, 576i/p, 720p, 1080i/p
• Supported PC Resolution: Up to 1920x1200 @ 60Hz
• Extender Mode CAT5e Cable Length: 100 metres
• Extender Mode: Direct connection from sender to receiver via CAT5e/6/7 cable
• Broadcaster Mode: One sender to many receivers over LAN (Local Area Network)
• Broadcaster Mode Length: Unlimited within LAN
• IR Control Pass-Thru: Allows IR remote control of source equipment from the receiver side
• 1-to-many broadcaster mode IR control works only with the first powered-on PB5000 receiver as remote console
• Operating Temperature: 0–40ºC
• Storage Temperature: -20–50ºC
• Humidity Range: 5%–90% RH
• Power Consumption: 5W
• Power Adapter: DC 5V/2A
• Material: Metal
• Dimensions: 165 x 116 x 28 mm
• Product Weight: 325 g
• Optional Accessory: Mounting Kit (MK-100)

What's in the Box

• 1080p HDMI Broadcaster Sender & Receiver
• 5V DC Power Adapter
• User Manual
• IR Emitter Cable

Installation

Audico recently installed a 2x2 video wall using the Aavara PB5000R and PB5000S. If you plan to build a similar video wall, please contact us for expert assistance. Our team can help design and simplify the installation process to ensure optimal performance.

Product Images

Downloads

• User Guide (PDF)
• Dimensional Illustrations
• Product Image
