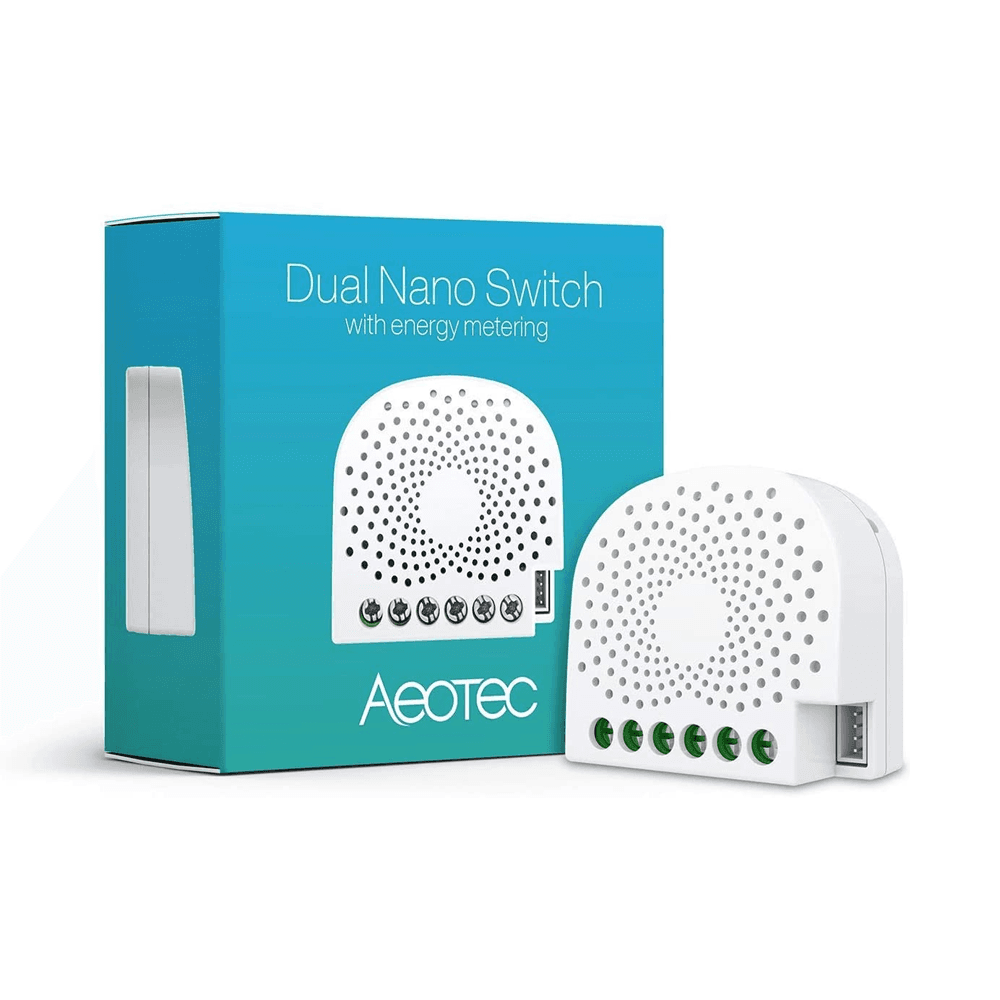

Aeotec ZW 132 DualNano Switch withPower

Aeotec ZW132 Dual Nano Switch with Power Monitoring provides reliable Z-Wave on/off control for wall switches with real-time power consumption monitoring and enhanced wireless range, perfect for smart home automation in South Africa.

Description

The Aeotec Dual Nano Switch is an affordable Z-Wave device designed to remotely control any wall switch. It delivers immediate wattage consumption readings and tracks kWh energy usage over time. Its non-volatile memory retains all programmed settings during power outages. The switch supports connection to two external manual switches for independent load control and includes a pin socket for touch panel integration, enabling control via touch panels. As a security Z-Wave device, it supports Over The Air (OTA) firmware upgrades for easy updates.

Stronger Signal

Featuring Z-Wave Plus technology, the Aeotec Dual Nano Switch offers a stronger wireless signal without increasing power consumption. It provides a signal strength 2.5 dBm higher than previous versions, extending wireless range up to approximately 150 metres outdoors—an improvement of nearly 50%. This ensures reliable and robust connectivity for your smart home.

Key Features

• Dual-channel Z-Wave switch with independent on/off control
• Real-time wattage and kWh energy monitoring
• Non-volatile memory retains settings during power outages

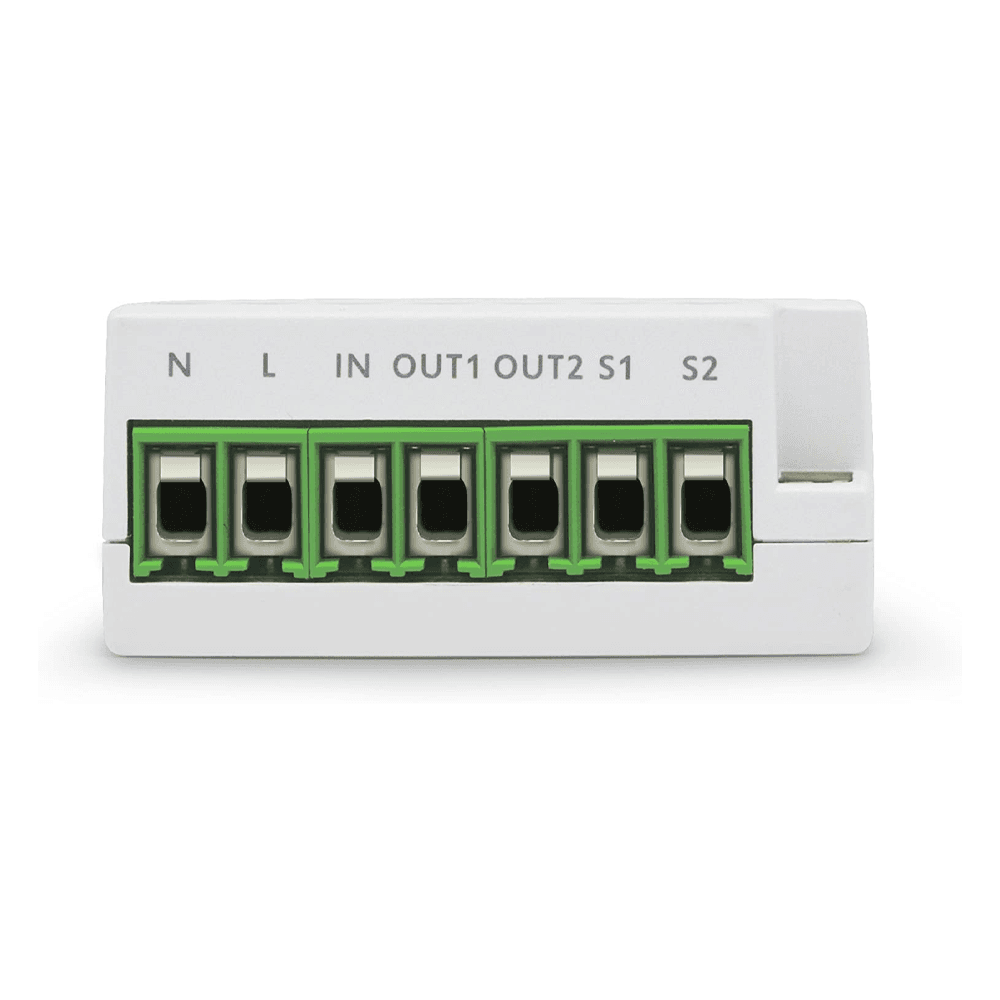

• Supports connection to two external manual switches
• Pin socket for touch panel integration
• Security Z-Wave device with OTA firmware upgrade support
• Enhanced wireless range up to 150 metres outdoors
• Low standby power consumption (0.8W)

Specifications

• Model number: ZW132
• Z-Wave Frequency: Europe 868.4 MHz
• Power input: 220V
• Rated output: 6.5A per channel (resistive load)
• Total current: Max 10A
• Max standby power: 0.8W
• Operating temperature: 0℃ to 40℃ (32℉ to 104℉)
• Relative humidity: 8% to 80%
• Operating distance: 150 metres outdoors
