Ajax LightCoreSmart DimmerSwitch

Ajax LightCore Smart Dimmer Switch — in-wall smart dimmer relay that integrates with the Ajax ecosystem to enable app-based and wireless button dimming control of existing lighting circuits.

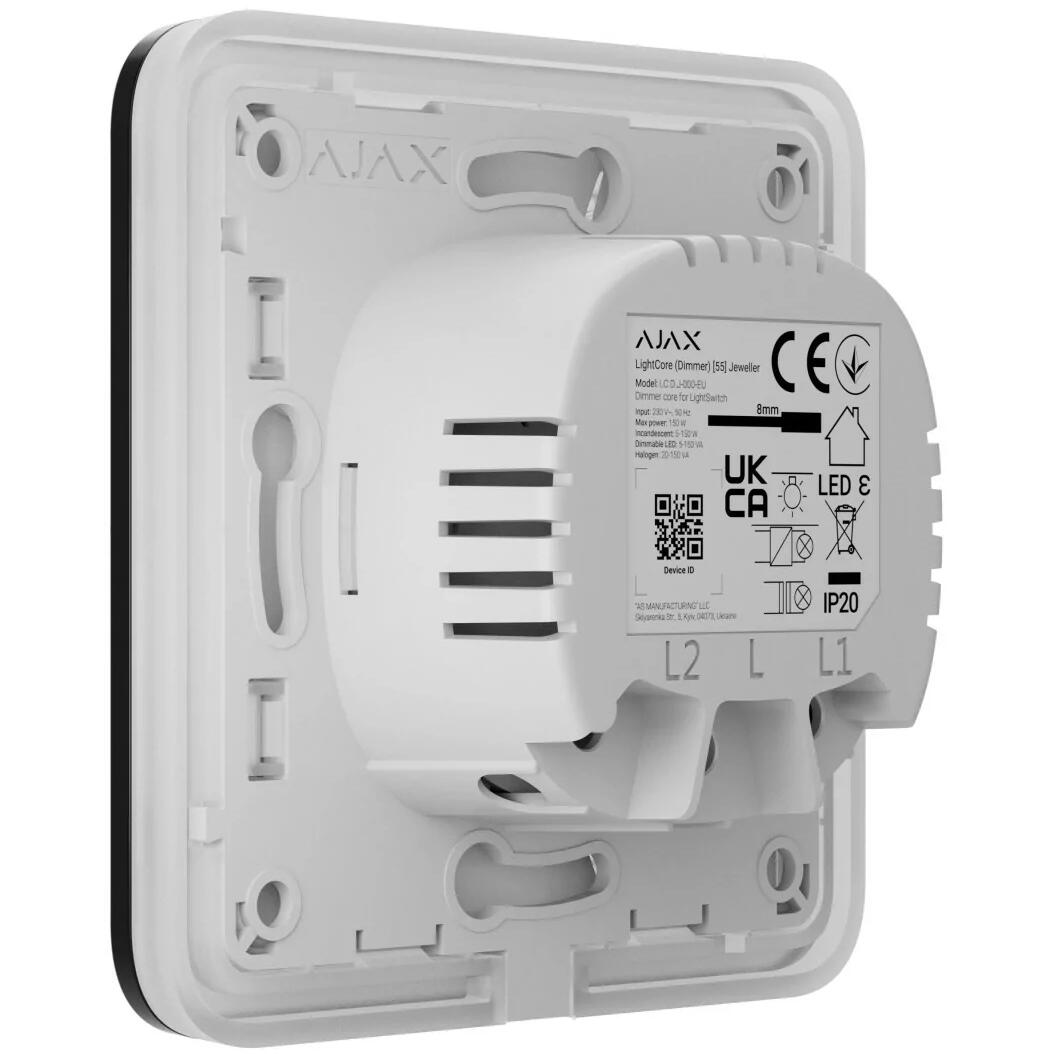

The Ajax LightCore (Dimmer) fits inside a standard single gang back box and connects to your existing light switch wiring, transforming a fixed on/off circuit into a fully dimmable smart lighting point. Once installed, brightness can be controlled from the Ajax app, via automations and schedules, or through a paired Ajax SoloButton (Dimmer) — sold separately. The LightCore communicates with Ajax Hub over the Jeweller protocol and does not require a neutral wire in most standard wiring configurations.

Key features

• In-wall dimmer relay — fits standard single gang back box
• Controlled via Ajax app, automations, or SoloButton (sold separately)
• No neutral wire required in most installations
• Ajax Jeweller wireless protocol to Hub
• Compatible with dimmable LED and incandescent loads
• Energy monitoring via Ajax app

Specifications

• Model: AJAX-LC-DIM
• Load type: dimmable LED, incandescent
• Max load: 200W LED / 500W incandescent
• Protocol: Ajax Jeweller (wireless)
• Requires: Ajax Hub
• Note: SoloButton not included
