AKG ProfessionalC414 XL II STMatched

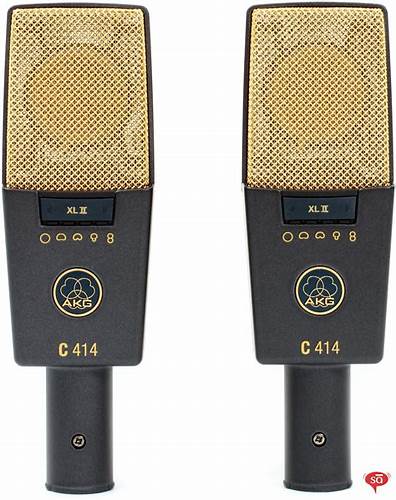

AKG C414 XL II ST is the matched stereo pair of the C414 XL II large-diaphragm condenser microphone - the successor to the C414 B-TL II, voiced with the up-front character associated with the classic AKG C12. AKG creates stereo sets using its matching method for three-dimensional recordings.

Key Features

• Matched stereo pair (ST / MatPair) of C414 XL II - not a single mic, not C414 XLS
• 1" edge-terminated large-diaphragm pressure-gradient capsule
• Nine selectable polar patterns
• Three switchable bass-cut filters and three pre-attenuation pads
• Lock Mode disables controls for live / fixed install; Peak Hold LED flags overload peaks

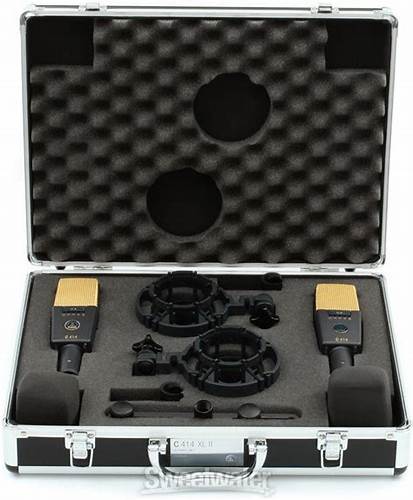

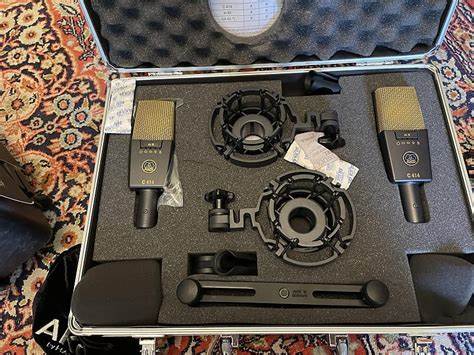

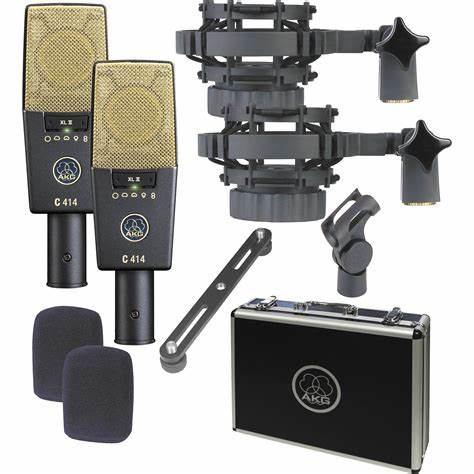

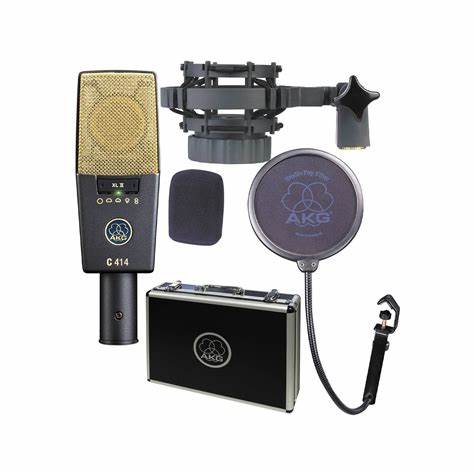

• 48 V phantom power (IEC 61938); elastic capsule suspension; pop filter, windscreen and spider shock mount included per mic (per cut sheet kit)

Sonic character

The C414 XL II shows the unique sonic signature of the highly sought-after AKG C12, helping place lead vocals and solo instruments in dense mixes, and is also known for distant miking applications such as classical recording or drum ambience. The C414 XLS (neutral / B-ULS character) is a different model and is not this SKU.

Specifications

Source: AKG C414 XLS & C414 XL II Cut Sheet (official akg.com PDF). Electrical specs are common to both models; this SKU is the XL II matched stereo pair.

Key specifications (each microphone)

Type	One-inch large-diaphragm pressure-gradient microphone
Polar patterns	Nine, selectable
Open-circuit sensitivity	23 mV/Pa (−33 dBV ± 0.5 dB)
Frequency range	20 Hz to 20,000 Hz
Impedance	≤ 200 ohms
Recommended load impedance	≥ 2200 ohms
Bass cut filter slopes	12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
Pre-attenuation pads	−6 dB, −12 dB, −18 dB (selectable; corroborated by max SPL 0/−6/−12/−18 dB rows)
Equivalent noise level (IEC 60268-4)	20 dB (0 dB pre-attenuation)
Equivalent noise level A-weighted (IEC 60268-4)	6 dB-A (0 dB pre-attenuation)
Signal/noise ratio re 1 Pa (A-weighted)	88 dB
Max. SPL for 0.5% THD	140 / 146 / 152 / 158 dB SPL (0 / −6 / −12 / −18 dB pre-attenuation)
Dynamic range	134 dB min.
Max. output level	5 V rms (+14 dBV)
Powering	48 V phantom power to IEC 61938
Current consumption	Approx. 4.5 mA
Connector	3-pin XLR (pin 2 hot)
Dimensions	50 × 38 × 160 mm (2 × 1.5 × 6.3 in)
Net weight (each)	300 g (10.6 oz)
Environment	Temperature −10 °C to +60 °C; R.H. 95% (+20 °C); 85% (+60 °C)
Stereo set	AKG matched stereo pair (ST / MatPair); product page item example 3059X00240

Datasheet

Public manufacturer documents (link only - this does not add a downloads module):

• AKG C414 XLS & C414 XL II Cut Sheet (PDF)
• AKG C414 XL II Matched Pair product page
