Allen Heath SQ 796kHz, 48 Channel,36

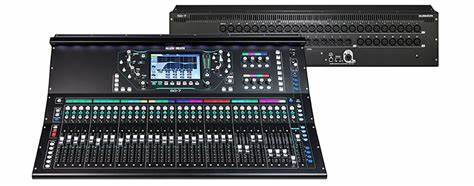

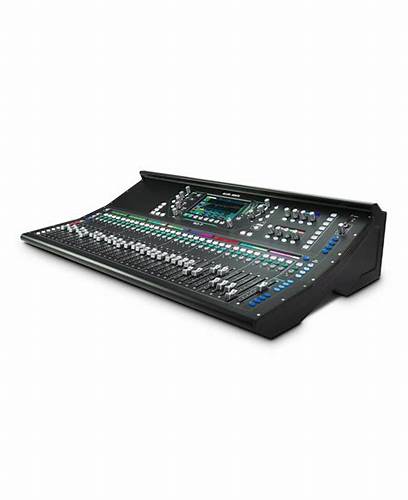

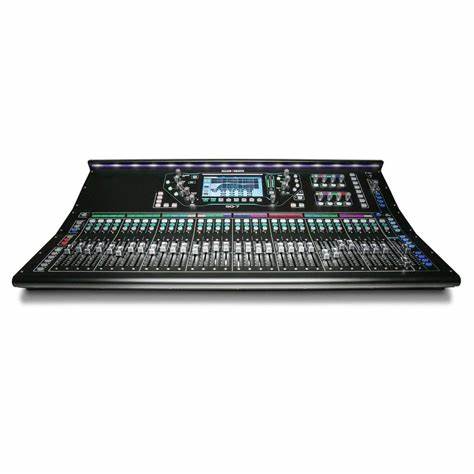

Allen & Heath SQ-7 is a compact 96 kHz digital mixer built around a 48×36 XCVI FPGA processing matrix. The surface provides 32+1 motorised faders across 6 layers, a 7" colour touchscreen, 16 SoftKeys and 8 Soft Rotaries, with 32 local mic/line XLR inputs and deep onboard processing including DEEP and automatic mic mixing.

Key Features

• 48 input channels / 36 total busses; 12 stereo mixes (Aux or Group) + Main; 96 kHz sample rate, up to 96-bit accumulator

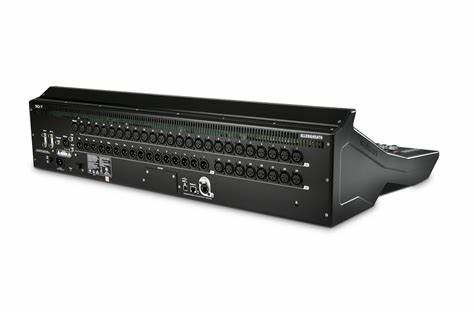

• 32 local mic/line XLR inputs (fully recallable preamps); 2× ¼" stereo TRS + 1× 3.5 mm stereo input; dedicated Talkback XLR
• 18 assignable local outputs (16 XLR + 2× ¼" TRS) plus AES digital output

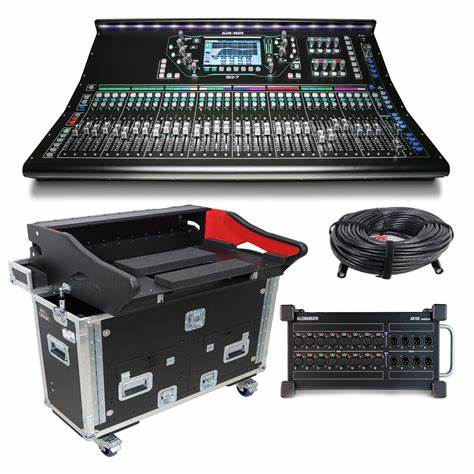

• SLink EtherCON remote audio (dSnake/ME, DX or GigaACE/GX, up to 128×128); I/O Port for optional Dante / Waves / extra SLink

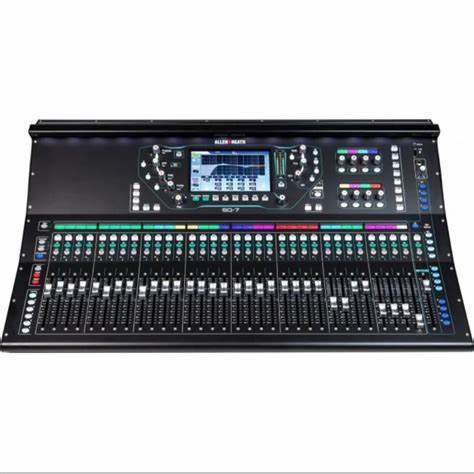

• 33 motorised faders (6 layers); 7" capacitive touchscreen; 16 SoftKeys; 8 Soft Rotaries; channel LCD displays
• 8 stereo FX engines; DEEP processing ready; DEEP Automatic Mic Mixing (2×24 or 1×48); 32×32 USB audio streaming; SQ-Drive USB-A record/playback
• Latency <0.7 ms local mic input to Main L/R; mains 100-240 V AC, 50/60 Hz, 110 W max

Overview

SQ-7 is the largest surface in the SQ series (not SQ-5 / SQ-6). All SQ mixers share the same 48×36 / 96 kHz core; SQ-7 adds more local I/O, SoftKeys and Soft Rotaries on a wider 33-fader surface.

Specifications

Source: Allen & Heath SQ-7 Technical Datasheet (official allen-heath.com PDF) and SQ-7 Cut Sheet.

System overview

Model	Allen & Heath SQ-7
Core	96 kHz XCVI FPGA; 48 input channels × 36 bus mix engine
Local mic/line inputs	32× balanced XLR, fully recallable
Stereo line inputs	ST1/ST2 balanced ¼" TRS; ST3 unbalanced 3.5 mm
Talkback	Dedicated XLR mic input
Local analogue outputs	16× XLR + 2× balanced ¼" TRS (18 assignable)
AES digital output	Balanced XLR, 2-channel; switchable 44.1 / 48 / 88.2 / 96 kHz
SLink	Neutrik EtherCON; dSnake 40in/20+40(ME)out; DX 32×32; GigaACE/GX 128×128
I/O Port	Option card slot (e.g. Dante / Waves / additional SLink; up to 128×128 per A&E text)
Faders / layers	32+1 motorised faders; 6 layers (192 assignable strips)
Touchscreen	7" capacitive, 800 × 480, 24-bit RGB
SoftKeys / Soft Rotaries	16 / 8
Mute / DCA groups	8 / 8
FX	8× RackFX stereo engines + 8 dedicated stereo FX returns
AMM	DEEP Automatic Mic Mixing: 2×24ch or 1×48ch, gain sharing
USB streaming	USB-B 32×32, 48/96 kHz, 24-bit
SQ-Drive	USB-A stereo/multitrack record & playback (WAV)
Scenes	300 scene memories per show

Analogue I/O performance

Mic/Line input sensitivity	−60 to +0 dBu
Analogue gain	0 dB to +60 dB, 1 dB steps
Pad	−20 dB switchable
Maximum input level	+30 dBu
Input impedance (Mic/Line)	>5 kΩ
Phantom power	+48 V (+3 V / −2 V)
THD+N (unity gain 0 dB)	0.002% −92 dBu (20 Hz-20 kHz, AES Direct Out @ 0 dBu 1 kHz)
THD+N (mid gain +30 dB)	0.003% −91 dBu (20 Hz-20 kHz, AES Direct Out @ −30 dBu input 1 kHz)
Nominal / maximum output	+4 dBu / +22 dBu
Output impedance	<75 Ω
Residual output noise	−90 dBu (muted, 20 Hz-20 kHz)

System audio performance

Dynamic range	112 dB (balanced XLR in to XLR out, 0 dB gain, 0 dBu input)
Frequency response	+0 / −0.5 dB 20 Hz to 20 kHz
Headroom	+18 dB
THD+N Mic/Line to Main L/R	0.006%, −84 dBu (unity faders @ 0 dB, 20-20 kHz)
Sampling rate	96 kHz
Latency	<0.7 ms, local Mic Input to Main L/R
dBFS alignment	+18 dBu = 0 dBFS (+22 dBu at XLR output)

Physical and power

Desk dimensions (W × D × H)	804 × 514.9 × 198 mm (31.7" × 20.3" × 7.8")
Unpacked / packed weight	17.8 kg (39.3 lbs) / 21.9 kg (48.3 lbs)
Packed carton	960 × 685 × 360 mm
Mains power	100-240 V AC, 50/60 Hz, 110 W max (SQ-7)
Operating temperature	0 °C to 40 °C (Mixer Specifications); A&E also cites recommended 5-35 °C

Datasheets

Public manufacturer documents (link only - this does not add a downloads module):

• Allen & Heath SQ-7 Technical Datasheet (PDF)
• Allen & Heath SQ-7 Cut Sheet (PDF)
• Allen & Heath SQ-7 product page
