AlphaTheta XDJ-AZ4-channelprofessional

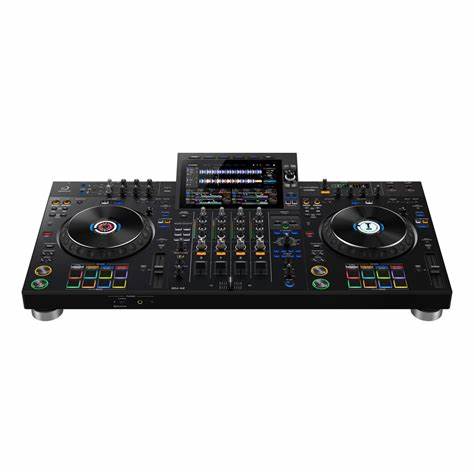

AlphaTheta XDJ-AZ is a 4-channel professional all-in-one DJ system with club-standard layout, 10.1-inch capacitive touchscreen, built-in Wi-Fi for rekordbox CloudDirectPlay / StreamingDirectPlay, Serato DJ Pro support, and integrated SonicLink transmitter.

Key Features

• 4-channel / 4-deck standalone playback; full-size 206 mm jog wheels with Jog Feeling

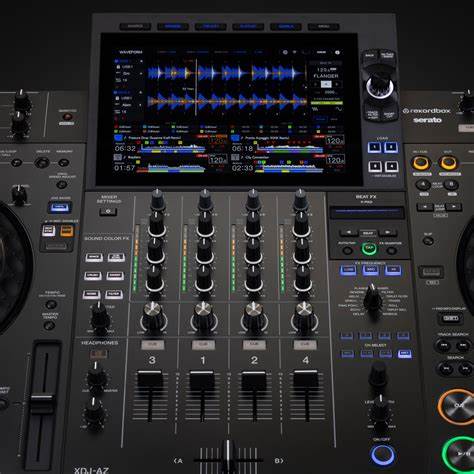

• 10.1-inch capacitive touchscreen (up to 13 tracks listed; Playlist Bank, Touch Preview, Touch Cue)
• Built-in Wi-Fi (IEEE 802.11 a/b/g/n/ac, 2.4 / 5 GHz); rekordbox CloudDirectPlay & StreamingDirectPlay
• Compatible software: rekordbox for Mac/Windows & iOS/Android; Serato DJ Pro
• 32-bit ESS Technology MASTER D/A converter; 3-band Master EQ
• Integrated SonicLink transmitter (2.4 GHz) for ultra-low-latency wireless monitoring with HDJ-F10
• PRO DJ LINK via LAN (100BASE-TX); Bluetooth 5.3 (SBC, AAC)
• USB Type-A ×2 + USB Type-C ×1; LINE/PHONO ×2; MIC ×2; MASTER XLR + RCA; BOOTH; dual headphones

Overview

Flagship 4-channel all-in-one (not XDJ-XZ). Combines multi-deck USB playback, PC/Mac DJ software unlock, cloud/streaming workflows and club I/O in a single chassis with grab handles.

Specifications

Source: AlphaTheta XDJ-AZ product page, Fact Sheet PDF, and Instruction Manual Specifications (printed pp. 151-153). Metric preferred. Universal AC 110-240 V. No price or stock.

General

Power requirements	AC 110-240 V, 50/60 Hz
Power consumption	60 W
Power consumption (off)	0.3 W
Maximum dimensions (W × D × H)	895 × 504.1 × 133.4 mm
Main unit weight	13.5 kg
Operating temperature	+5 °C - +35 °C
Operating humidity	5% - 85% (no condensation)
Accessories	Power cord; Quick Start Guide; Precautions for use; Warranty (for some regions)

Audio

Sampling rate	44.1 kHz
MASTER D/A converter	32-bit
Other A/D and D/A converters	24-bit
Frequency response (USB, LINE, MIC 1/2)	20 Hz - 20 kHz
S/N (rated output, A-weighted)	USB 115 dB; LINE 96 dB; PHONO 85 dB; MIC 79 dB
THD (20 Hz-20 kHz BW)	USB 0.0018%; LINE 0.005%
Standard input level / impedance	LINE −12 dBu / 47 kΩ; PHONO −52 dBu / 47 kΩ; MIC −57 dBu / 3 kΩ
Channel / Master EQ	HI/MID/LOW −26 dB to +6 dB (10 kHz / 1 kHz / 20 Hz)

Terminals

Inputs	LINE/PHONO ×2 (RCA); MIC ×2 (XLR & 1/4" TRS)
Outputs	MASTER ×2 (XLR ×1, RCA ×1); BOOTH ×1 (1/4" TRS); PHONES ×2 (1/4" stereo + 3.5 mm mini)
USB	Type-A ×2 (5 V / 1 A or less); Type-C ×1
LINK (PRO DJ LINK)	LAN 100BASE-TX ×1

Wireless and performance control

Wireless LAN	IEEE 802.11 a/b/g/n/ac; 2.4 GHz / 5 GHz
Bluetooth	Ver. 5.3; codecs SBC, AAC; max ~20 m (unobstructed guideline)
SonicLink	2.4 GHz; max ~5 m (unobstructed guideline); for HDJ-F10 (not WAVE-EIGHT)
Channels / deck control	4 channels; 4 decks (USB storage); 4 decks (DJ software)
Jog wheel	206 mm; Jog Feeling
Compatible software	rekordbox for Mac/Windows; rekordbox for iOS/Android; Serato DJ Pro
Sound Color FX	Dub Echo, Noise, Sweep, Filter, Space, Crush
Beat FX	Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Filter, Triplet Filter, Flanger, Phaser, Roll, Triplet Roll, Helix, Mobius

Datasheets

Public manufacturer documents (link only - this does not add a downloads module):

• AlphaTheta XDJ-AZ product page
• AlphaTheta XDJ-AZ Instruction Manual EN (PDF)
