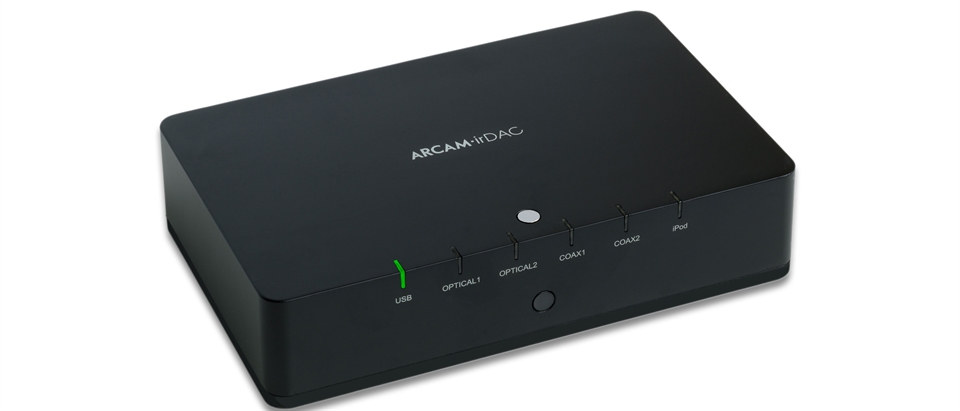

Arcam irDAC - Premium Digital to Analogue Converter (DAC)
The Arcam irDAC is a high-performance DAC designed to deliver exceptional sound quality for all music lovers. Featuring advanced Burr Brown PCM1796 technology and infra-red remote control, it offers seamless connectivity and superior audio performance at an unbeatable price.
Key Features
- High-quality Burr Brown PCM1796 DAC chip for outstanding audio fidelity
- Infra-red remote control compatible with PCs, Macs, and Apple devices
- Multiple digital inputs including asynchronous USB, SPDIF, optical, and direct iPod connection
- Ultra-low noise power supplies with 8 separately regulated units for clean sound
- Jitter reduction technology derived from Arcam’s flagship FMJ D33 DAC
- Direct coupled signal paths and isolation of digital and analogue stages for improved performance
- Supports sample rates up to 192kHz and bit depths of 16-bit and 24-bit
Product Overview
Arcam re-entered the DAC market with the rDAC, building on their pioneering history since 1989. The irDAC is an enhanced version, incorporating feedback from users and technology developed for the reference D33 DAC. It is designed to be the heart of your digital audio system, offering simple operation and compatibility with a wide range of digital sources.
The irDAC’s engineering focuses on delivering a virtually jitter-free signal, utilising advanced circuitry and ultra-low noise power supplies. Its direct iPod connection ensures optimal sound quality from Apple devices, while the IR remote handset provides convenient control over all inputs and connected devices.
Specifications
- DAC Chip: TI PCM1796
- Inputs: USB, SPDIF, Optical, iPod
- Frequency Response: 10Hz – 20kHz, ±0.1dB
- Total Harmonic Distortion + Noise: 0.002%
- Signal-to-Noise Ratio (A-weighted): 112dB (24-bit)
- Line Output Level: 2.2Vrms
- Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
- Supported Bit Depths: 16-bit, 24-bit
- Power Requirements: 7W max
- Dimensions (W x D x H): 190 x 120 x 44 mm
