Aten VS1824KIT 4KHDMI over Cat6Splitter

Aten VS1824KIT — 4-port 4K HDMI over Cat6 splitter kit distributing one HDMI source to 4 displays up to 40m away, with Power over Cable receivers, lossless audio, and a local HDMI monitoring output.

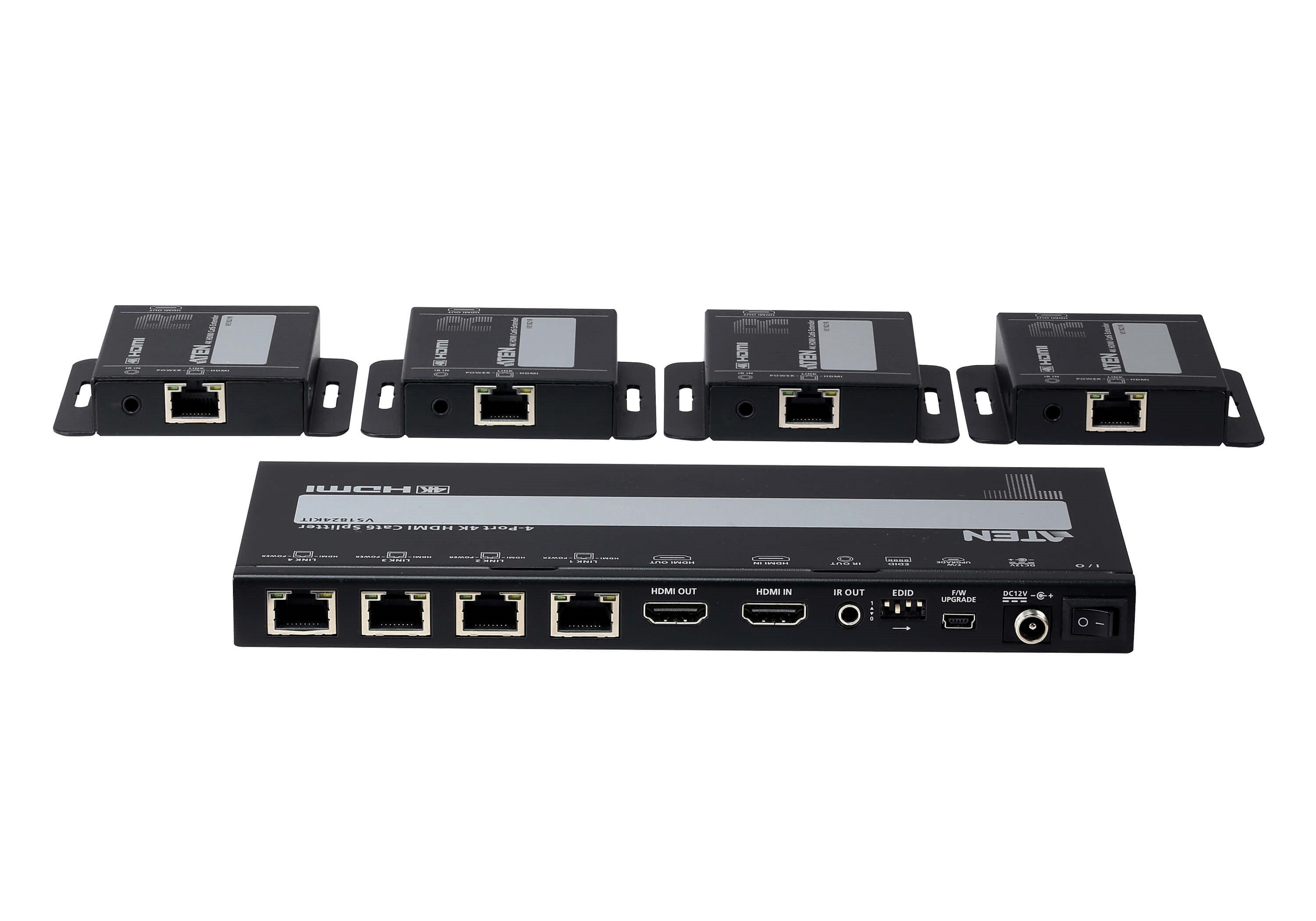

The VS1824KIT contains a 1-to-4 HDMI splitter and four HDBaseT receivers in a single package. Connect an HDMI source to the splitter and run Cat 6 cables to each receiver at distances up to 40m — the receivers are powered by the splitter via Power over Cable (PoC), so no local power supplies are needed at each display location. Signal quality is maintained at 4K @ 30 Hz (4:4:4) with full lossless audio: LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. A local HDMI output port on the splitter allows content monitoring or cascading. A user-adjustable EDID switch manages display compatibility. Choose the VS1828KIT for 8 outputs.

Key features

• 1-to-4 HDMI distribution over Cat 6 — up to 40m per output
• Power over Cable: splitter powers all 4 receivers, no remote supplies needed
• 4K @ 30 Hz (4:4:4) with LPCM 7.1ch, Dolby TrueHD, DTS-HD Master Audio
• Local HDMI output for monitoring or cascading
• User-adjustable EDID switch for display compatibility management

Specifications

• Outputs: 4× HDBaseT (Cat 6) + 1× local HDMI
• Max distance: 40m per output (Cat 6)
• Video: 4K @ 30 Hz, 4:4:4
• Audio: LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
• Power over Cable: Yes (splitter powers receivers)
• Package contents: 1× VS1824 splitter, 4× HDBaseT receivers
• See also: VS1828KIT for 8-output version
