Aten VC882 True 4KHDMI Repeater withAudio

Aten VC882 — True 4K HDMI repeater with audio embedder and de-embedder, supporting HDR10/HDR10+/Dolby Vision/HLG, HDCP 2.2, ARC, and HDMI audio extraction or injection via DIP switch selection.

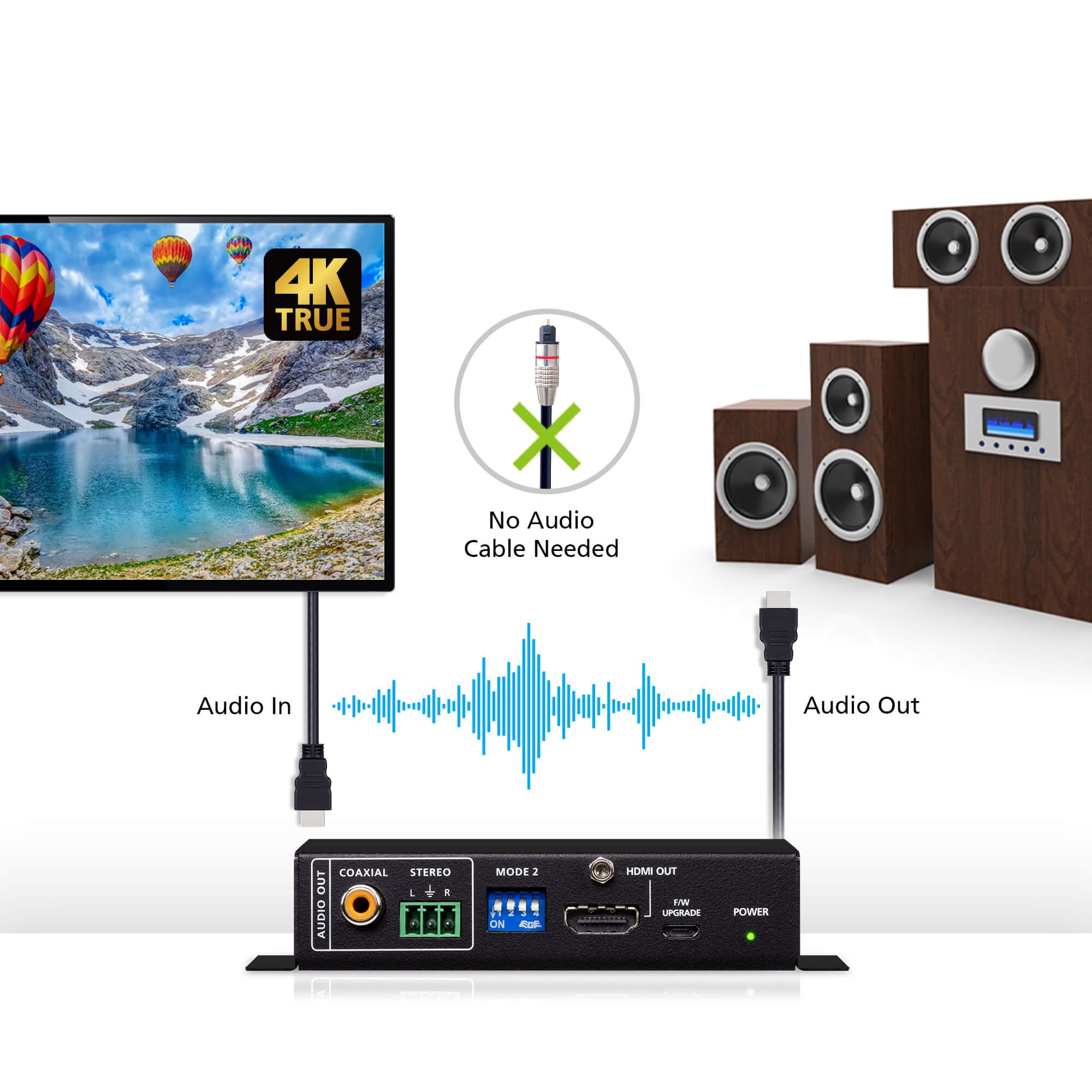

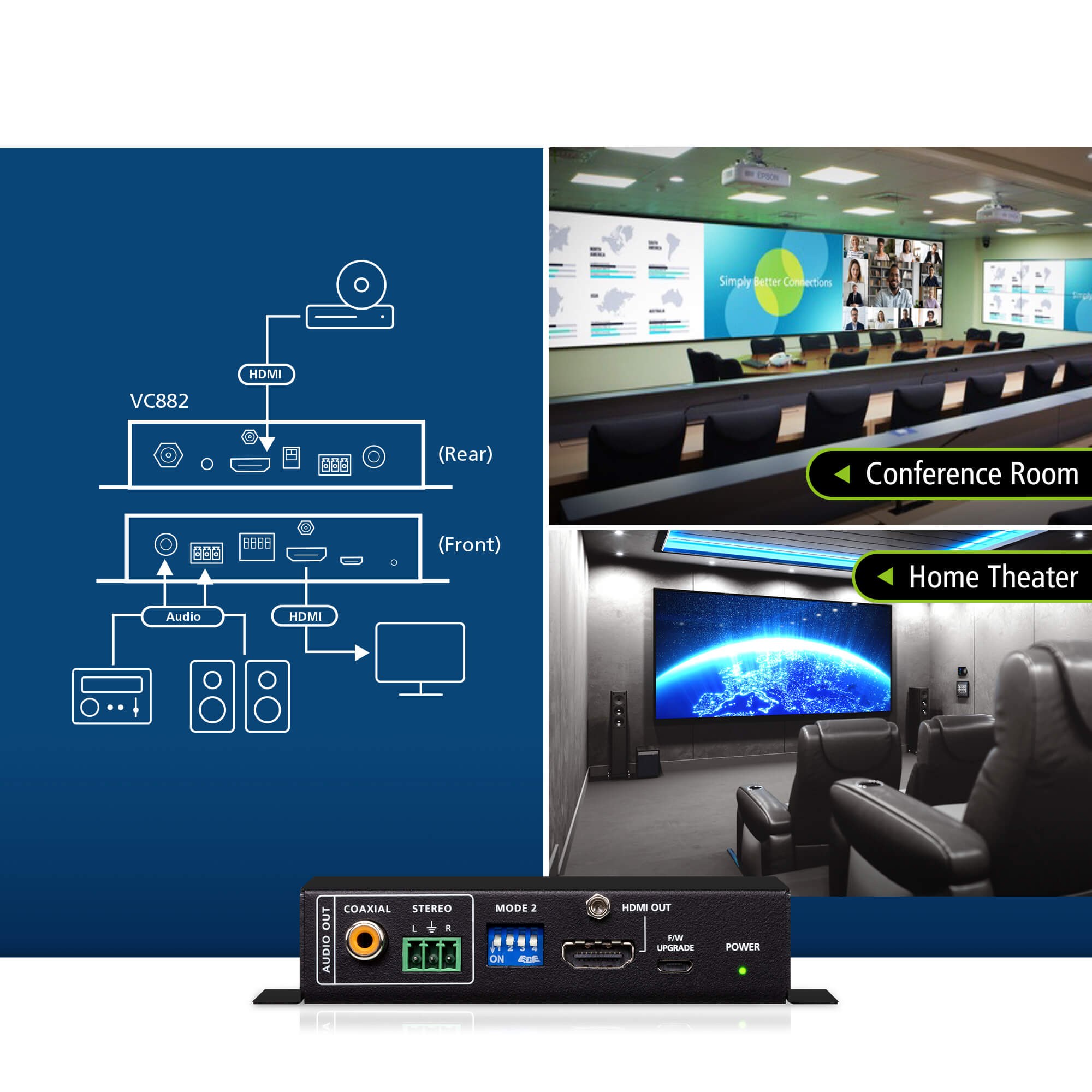

The Aten VC882 serves two roles in one compact metal unit: it repeats an HDMI signal over distances up to 5 metres while simultaneously providing audio embedding and de-embedding. In de-embed mode, digital audio is extracted from the incoming HDMI signal and routed to a separate audio output — useful for feeding a dedicated audio system from an HDMI source without a separate audio matrix. In embed mode, an external audio signal is injected into the outgoing HDMI stream — allowing audio from a separate source to replace or augment the HDMI audio. Mode selection is via 2-pin or 4-pin DIP switches on the unit. True 4K resolution (4096x2160 @ 60Hz, 4:4:4) is maintained with full HDR support including HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG). HDCP 2.2 compliance covers the latest 4K content protection requirements. ARC (Audio Return Channel) eliminates additional cabling when connecting AV receivers or home theatre systems to a TV. Supports LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1, and DTS Digital 5.1 audio formats. Firmware upgradeable. Suitable for training rooms, conference rooms, video production, and home theatre installations.

HDMI audio de-embedder — extracts audio from HDMI to separate output

HDMI audio embedder — injects external audio into HDMI stream

True 4K (4096x2160 @ 60Hz, 4:4:4) with HDR10, HDR10+, Dolby Vision, HLG
