Club3D CAC-158920m USB 3.2 Gen2Type-C

Club3D CAC-1589 — 20m USB 3.2 Gen2 Type-C active optical cable for 4K@60Hz display and 10Gbps data over long runs without signal loss.

The Club3D CAC-1589 uses active optical fibre to maintain full USB 3.2 Gen2 performance over 20 metres — a distance that would render a passive copper cable unusable. It carries DisplayPort Alt Mode for 4K @ 60 Hz and 3D video alongside 10 Gbps data. The unidirectional design requires correct orientation; the marked source-end connector must connect to the host. Note: USB Power Delivery is not supported over the optical run.

Key features

• 20m active optical cable — lossless signal over long runs
• USB 3.2 Gen2 — up to 10 Gbps data transfer
• DisplayPort Alt Mode — up to 3840 × 2160 @ 60 Hz and 3D video

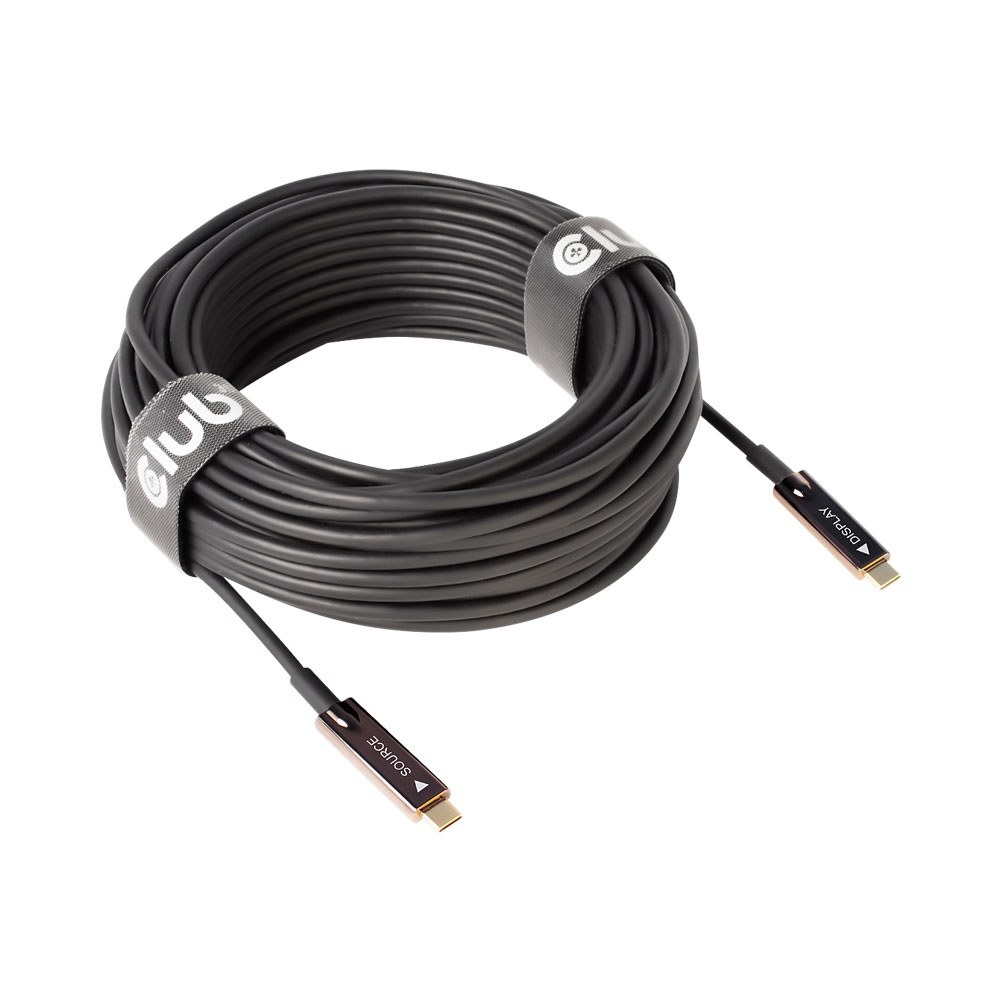

• Unidirectional — source-end connector must connect to the host
• USB Power Delivery not supported (optical limitation)

Specifications

• Length: 20 m
• Connectors: USB Type-C both ends
• Data: USB 3.2 Gen2, up to 10 Gbps
• Video: DisplayPort Alt Mode, up to 3840 × 2160 @ 60 Hz
• 3D video: Yes
• Cable type: Active Optical Cable (AOC), unidirectional
• Power delivery: Not supported
