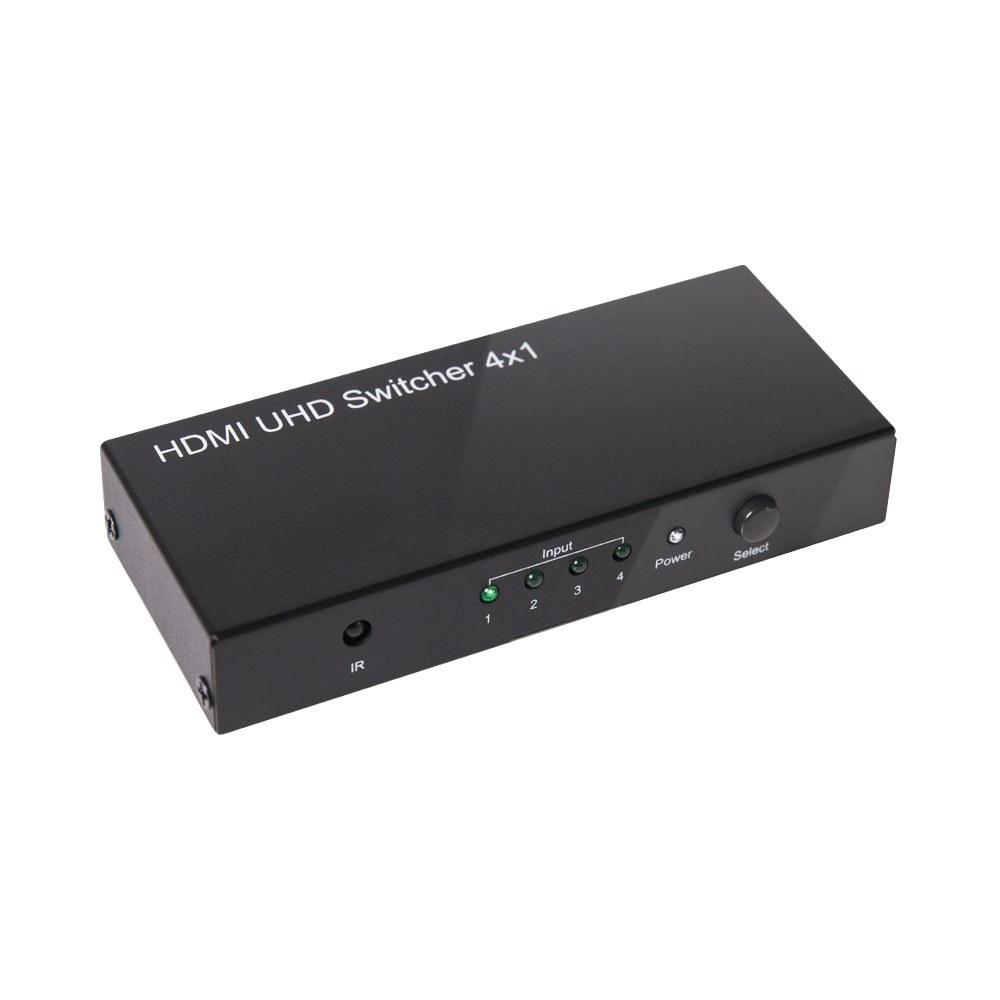

Club3D 4-Port HDMI2.0 4K Switchbox(CSV-1370)

Club3D CSV-1370 — 4-port HDMI 2.0 switchbox supporting 4K UHD @ 60Hz, allowing four HDMI sources to share a single display with both manual and automatic switching.

The CSV-1370 connects four HDMI sources — such as a PC, game console, media player, and set-top box — to a single HDMI display. Switching is available mechanically via the front-panel button or automatically based on active signal detection. CEC support allows compatible devices to control switching. EDID bypass ensures smooth handshaking across mixed equipment. HDCP pass-through, DTS, and Dolby Digital audio are fully supported.

Key features

• 4 HDMI inputs, 1 HDMI output
• 4K UHD up to 4096 × 2160 @ 60Hz
• Full 3D support
• Manual and automatic (intelligent) switching
• CEC function support
• EDID bypass
• HDCP pass-through
• DTS Digital and Dolby Digital audio

Specifications

• Inputs: 4× HDMI 2.0
• Outputs: 1× HDMI 2.0
• Max resolution: 4096 × 2160 @ 60Hz
• HDCP: Pass-through
• CEC: Supported
• Switching: Manual + Auto
