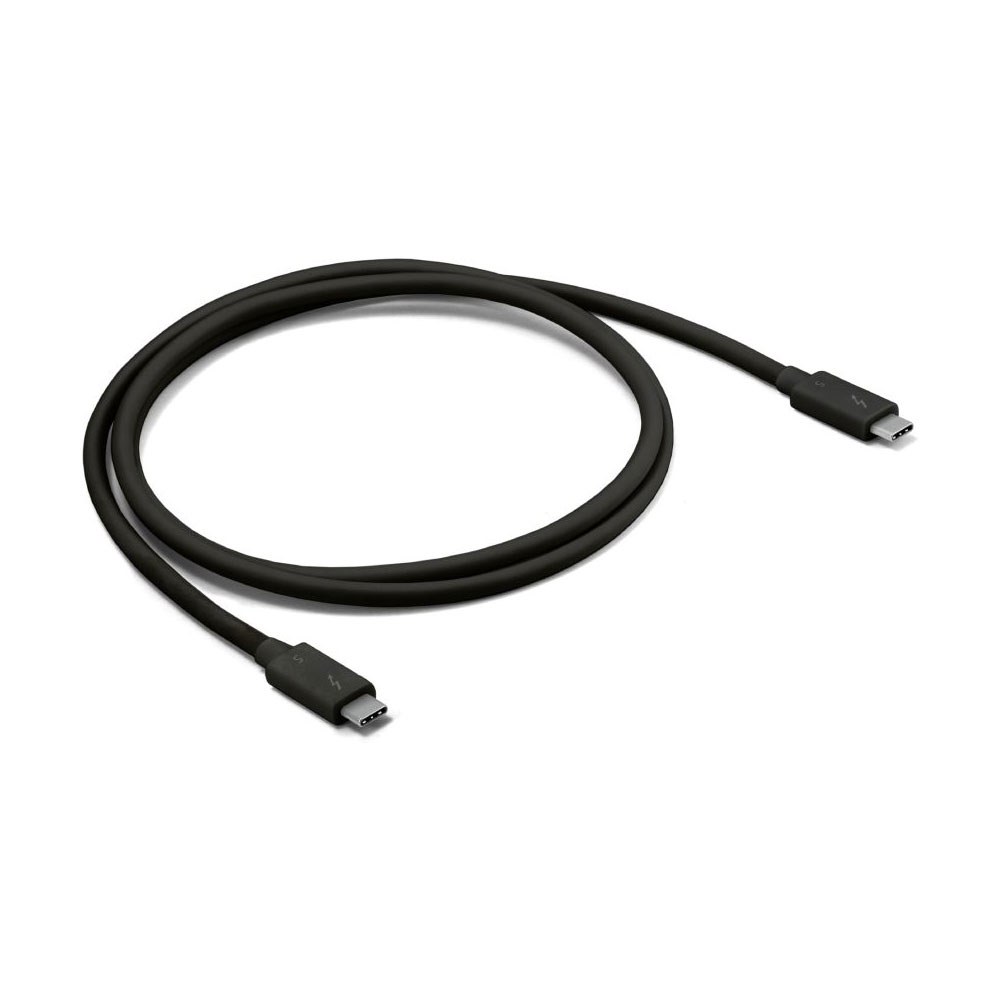

Club3D CAC-2501 1mThunderbolt 5Certified

Club3D CAC-2501 — 1m Thunderbolt 5 certified USB-C cable delivering 80Gbps sustained bandwidth (boosted to 120Gbps for display-only workloads), 240W EPR charging (48V/5A), DisplayPort 2.1 with DSC, and PCIe 64Gbps support for external PCIe devices.

Thunderbolt 5 provides the highest bandwidth of any USB-C cable standard for simultaneous data transfer, display output, and charging. At 80Gbps the cable handles data and display simultaneously; bandwidth boosts to 120Gbps when only driving displays. DisplayPort 2.1 with DSC enables a single 4K @540Hz display, two 8K @60Hz displays, or three 4K @144Hz displays depending on host and display hardware capabilities. PCIe 64Gbps support connects external GPU enclosures and PCIe expansion boxes.

Key features

• Thunderbolt 5 certified
• 80Gbps data bandwidth — boosts to 120Gbps (display-only)
• 240W EPR charging (48V / 5A)
• DisplayPort 2.1 with DSC
• Max display configs: 1× 4K @540Hz / 2× 8K @60Hz / 3× 4K @144Hz
• PCIe 64Gbps for external PCIe devices
• 1m length

Specifications

• Model: CAC-2501
• Standard: Thunderbolt 5
• Bandwidth: 80Gbps (120Gbps display boost)
• Power: 240W EPR (48V / 5A)
• Display: DP 2.1 with DSC
• PCIe: 64Gbps
• Length: 1m
• Connectors: USB Type-C both ends
