Club3D CSV-7200HDisplayPort 1.4 toDual

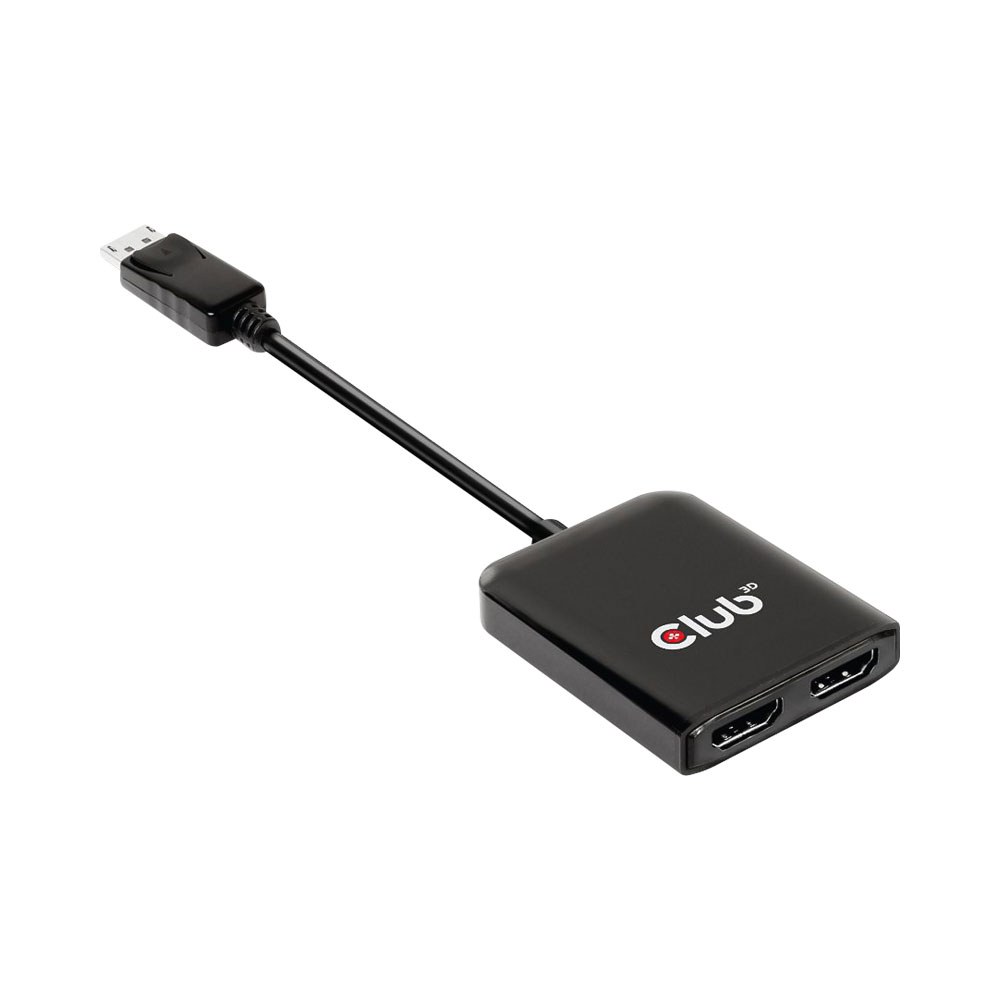

Club3D CSV-7200H — DisplayPort 1.4 to dual HDMI 4K@60Hz MST hub that expands a single DP1.4 output into two simultaneous HDMI displays, supporting resolutions up to 3840×2160@60Hz per screen with HDCP 2.2 content protection.

The CSV-7200H uses Multi-Stream Transport (MST) to drive two HDMI monitors from a single DisplayPort 1.4 source — with no daisy-chaining or software configuration required. When connected to a DP1.4 with DSC 1.2 source, both HDMI outputs can run at full 4K@60Hz simultaneously. On DP1.2 sources the hub delivers 4K@30Hz on one screen and 1080p@60Hz on the other. Audio is passed through alongside video. HDCP 1.4 and 2.2 ensure compatibility with protected premium content.

Key features

• Dual HDMI outputs from a single DisplayPort 1.4 source
• Up to 4K@60Hz per output (DP1.4 + DSC 1.2 source required)
• MST (Multi-Stream Transport) — no daisy-chain setup needed
• HDCP 1.4 and 2.2 content protection
• Main link rates: HBR3 (8.1Gbps), HBR2 (5.4Gbps), HBR (2.7Gbps)
• Audio and video signal transmission

Specifications

• Model: CSV-7200H
• Input: DisplayPort 1.4 (also supports DP1.2)
• Output: 2× HDMI (4K@60Hz each — DP1.4 + DSC1.2 source)
• Max resolution (DP1.2): 3840×2160@30Hz + 1920×1080@60Hz
• Standards: VESA DDM, HDCP 1.4 & 2.2
• Audio: Yes (via HDMI)
