Club3D DisplayPort1.2 to HDMI 2.0 4KActive

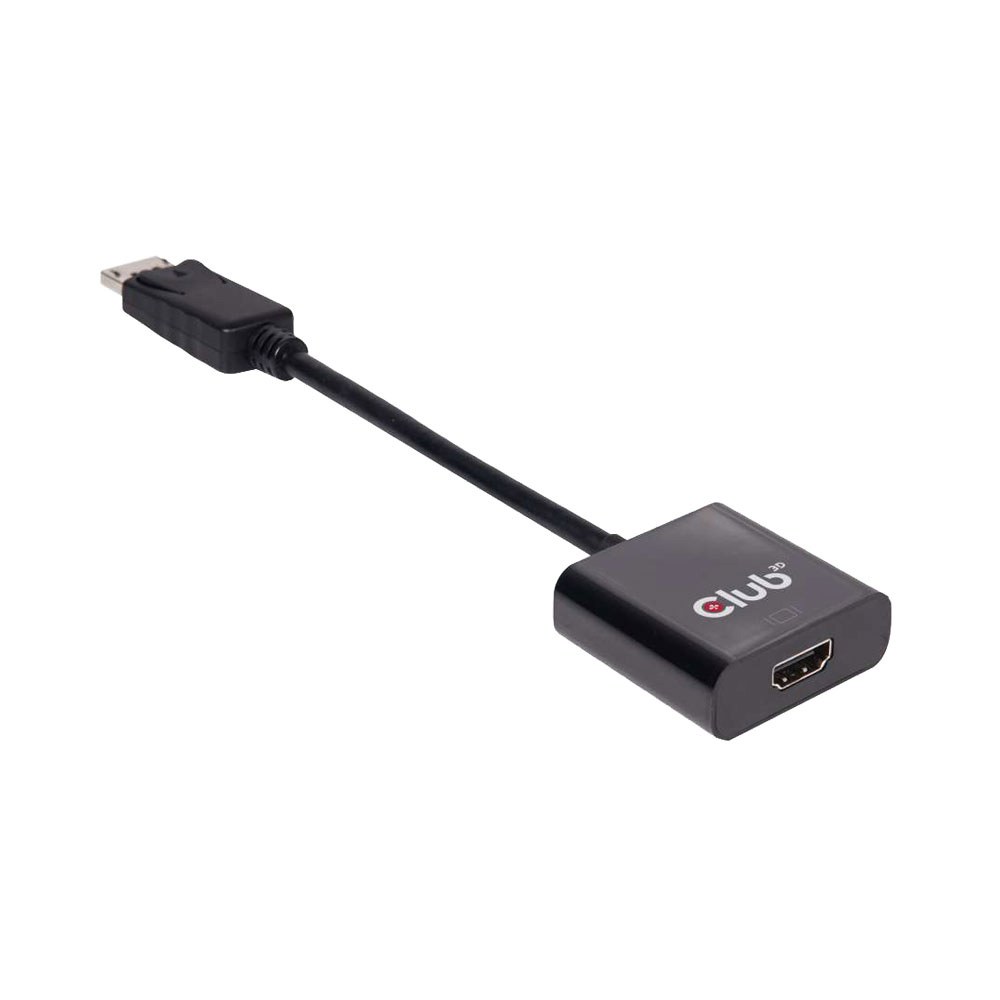

Club3D CAC-2070 — active DisplayPort 1.2 to HDMI 2.0 adapter supporting 4K UHD up to 4096 × 2160 @ 60Hz with HDCP 2.2 and 24-bit 4:4:4 colour.

The CAC-2070 performs active signal conversion from DisplayPort 1.2 to HDMI 2.0, enabling DP-equipped PCs and workstations to drive HDMI monitors, TVs, and projectors at 4K @ 60Hz. The DP 1.2 receiver handles up to 5.4Gbps per lane across four lanes (17.28Gbps effective video bandwidth); the HDMI 2.0 output provides 18Gbps total throughput. HDCP 1.3 and 2.2 repeater support ensures compatibility with protected 4K content streams.

Key features

• Active DisplayPort 1.2 to HDMI 2.0 conversion
• 4K UHD up to 4096 × 2160p @ 60Hz
• DP 1.2 receiver: 5.4Gbps per lane × 4 (17.28Gbps effective)
• HDMI 2.0 output: 18Gbps total
• HDCP 1.3 and HDCP 2.2 repeater
• 24-bit colour, 4:4:4 colour sampling

Specifications

• Input: DisplayPort 1.2
• Output: HDMI 2.0
• Max resolution: 4096 × 2160p @ 60Hz
• DP bandwidth: 17.28Gbps effective
• HDMI bandwidth: 18Gbps
• HDCP: 1.3 and 2.2
• Conversion type: Active
