Club3D DisplayPort1.4 to DisplayPort+

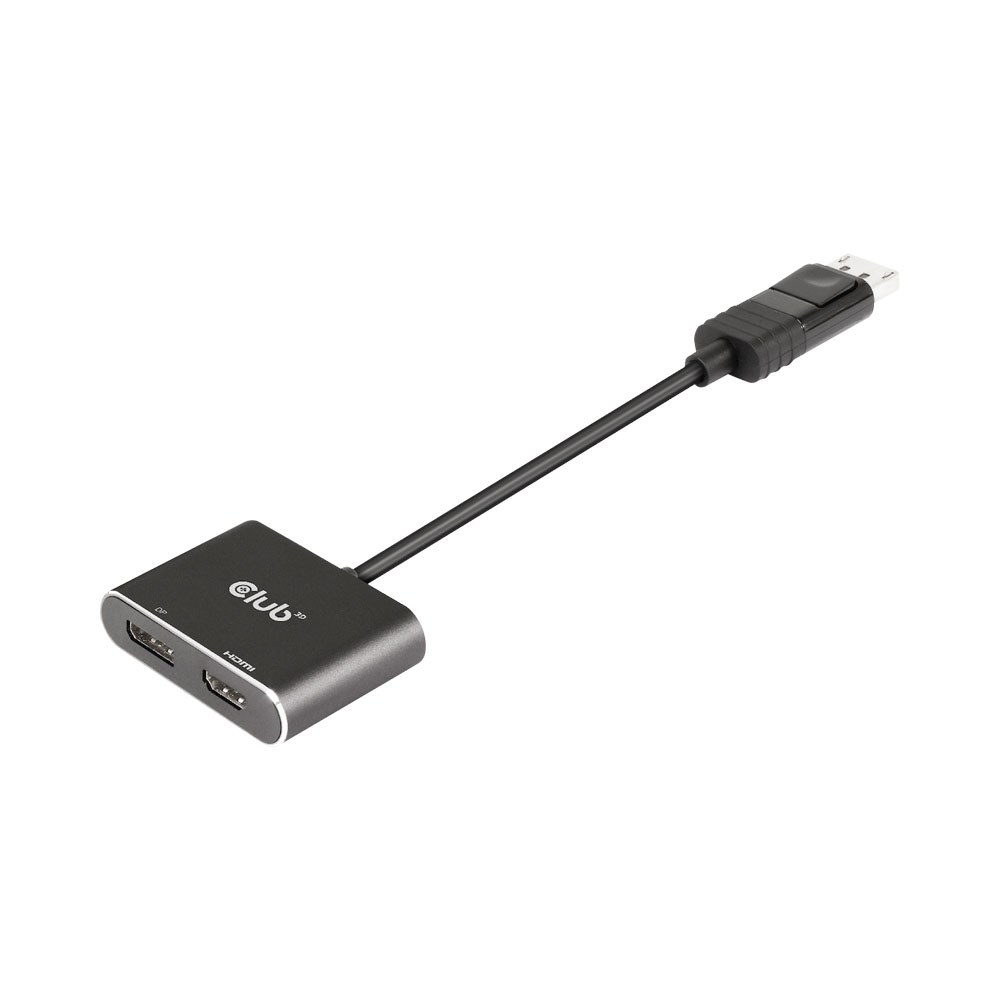

Club3D CSV-7220 — DisplayPort 1.4 to DisplayPort + HDMI MST hub enabling dual 4K@60Hz display output from a single DisplayPort 1.4 source.

The CSV-7220 uses Multi-Stream Transport (MST) on Windows to drive two displays simultaneously — one via DisplayPort and one via HDMI — both at up to 3840×2160@60Hz. On macOS, SST (single stream) mode is used. HDCP 2.2 content protection and 3D signal pass-through are supported.

Key features

• DisplayPort 1.4 input
• 1× DisplayPort output + 1× HDMI output
• Dual display at up to 4K@60Hz (3840×2160) via MST (Windows)
• SST single-display mode on macOS
• HDCP 2.2 content protection
• 3D signal pass-through

Specifications

• Model: CSV-7220
• Input: DisplayPort 1.4
• Outputs: 1× DisplayPort + 1× HDMI
• Max resolution: 4K@60Hz per output
• HDCP: 2.2
• OS modes: MST (Windows), SST (macOS)
