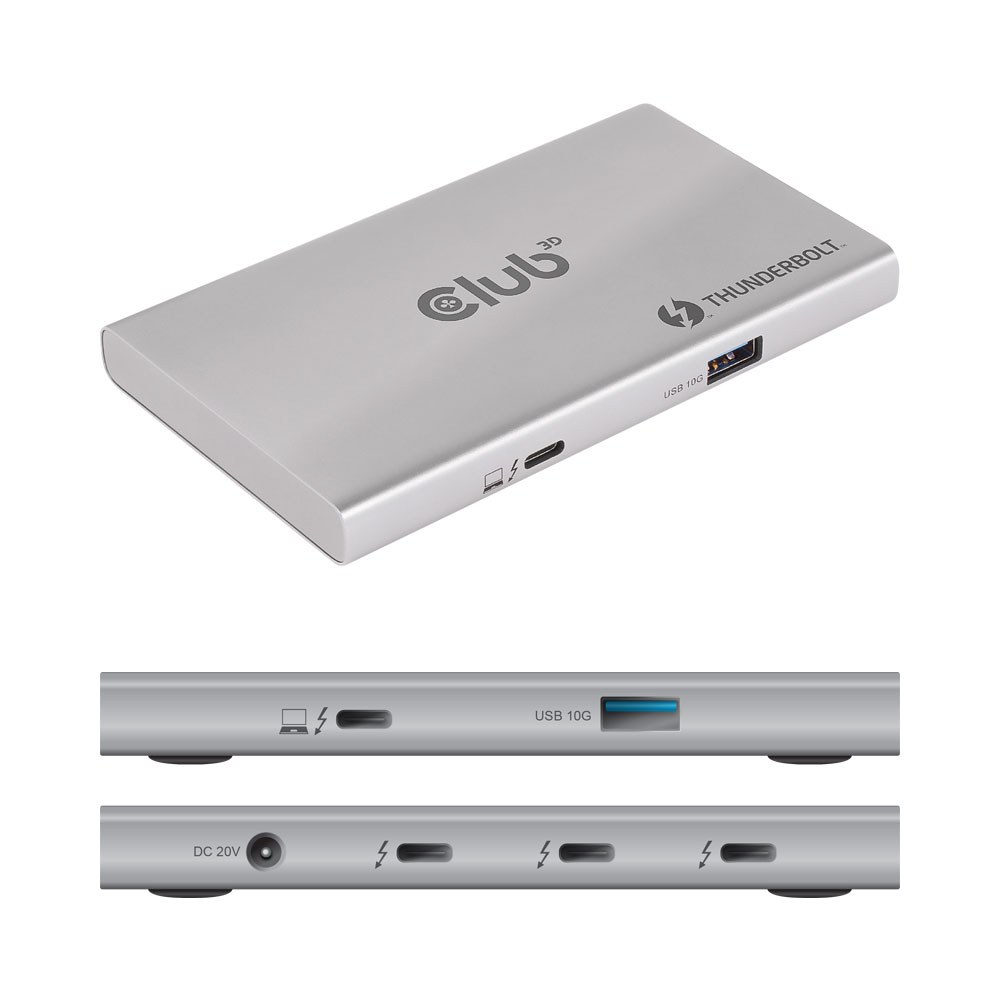

Club3D Thunderbolt4 Smart Hub(CSV-1580)

Club3D CSV-1580 — Thunderbolt 4 smart hub with three downstream Thunderbolt 4 ports for cascading Thunderbolt devices, dual 4K or single 8K display output, and up to 85W host charging.

Using the Intel Goshen Ridge solution, the CSV-1580 provides three Thunderbolt 4 downstream ports that support both Thunderbolt device cascading and USB Gen2 (10Gbps) data transfer. Video output supports a single display at up to 8K@30Hz or dual displays at up to 4K@60Hz each. Self-powered via DC adapter — up to 60W to the host alone, or up to 85W when the hub itself is in use.

Key features

• 3× Thunderbolt 4 downstream ports
• Cascade Thunderbolt devices up to 6 deep
• Video: single 8K@30Hz or dual 4K@60Hz
• USB Gen2 data transfer (max 10Gbps) on all ports
• Up to 60W host charging (85W hub + host)
• Self-powered via DC adapter (included)

Specifications

• Model: CSV-1580
• Ports: 3× Thunderbolt 4 downstream
• Video: 8K@30Hz (single) / 4K@60Hz (dual)
• Data: USB Gen2, 10Gbps
• Power delivery: Up to 85W (hub + host)
• Chipset: Intel Goshen Ridge
