Club3D USB-C Gen2Smart PDTriple-Display

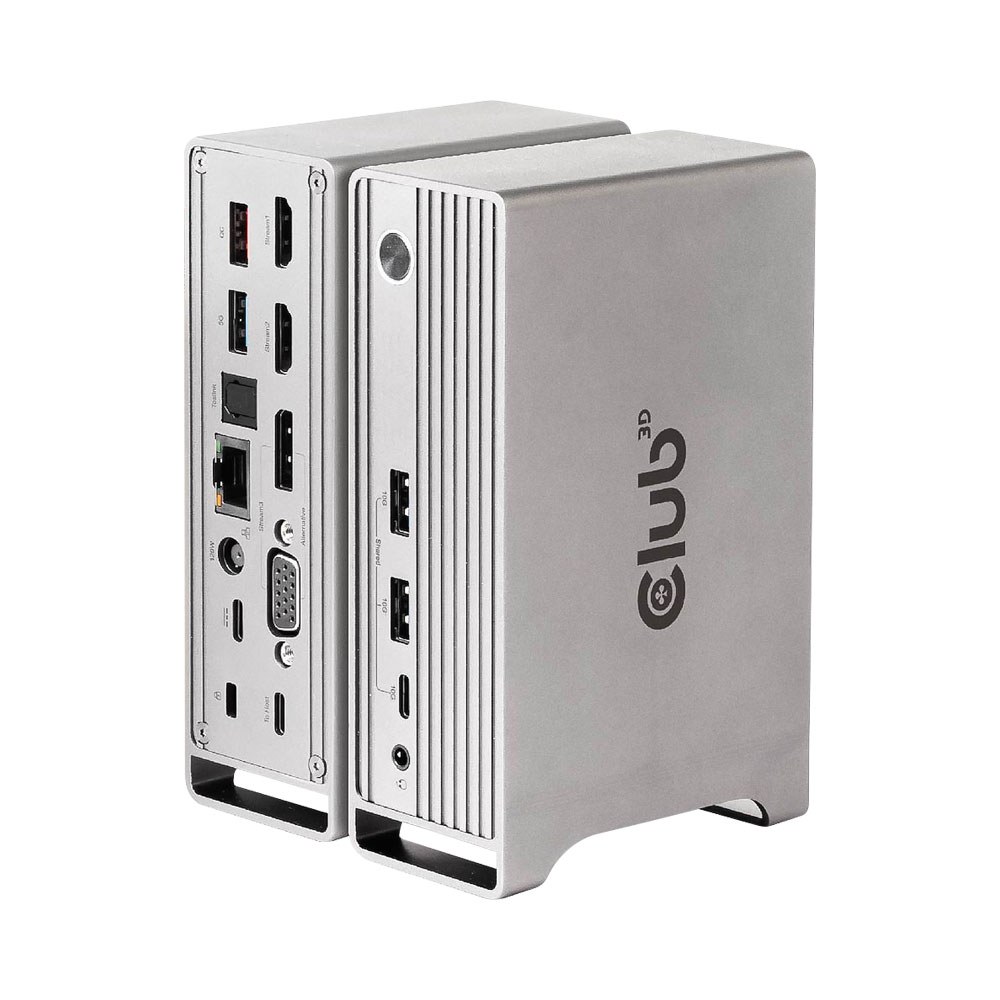

Club3D CSV-1568 — USB-C Gen2 port replicator with 120W PSU supporting up to three simultaneous displays via MST, plus a full complement of connectivity ports for a complete desktop workstation setup.

The CSV-1568 drives up to three displays simultaneously (2× HDMI plus either DisplayPort or VGA) using MST. When only one display is connected, maximum resolution is 4K@60Hz on HDMI or DisplayPort. All display outputs support HDR, HDCP 2.2, and deep colour. The 120W power supply unit charges the connected laptop while running all ports at full capacity.

Up to 3× simultaneous displays (2× HDMI + DisplayPort or VGA via MST)

Single display: HDMI/DP up to 4K@60Hz, VGA up to 1920×1200@60Hz

HDR, HDCP 2.2 + 1.4, 8/10-bit deep colour on DP and HDMI
