Club3D USB 3.0Dual DisplayPort4K

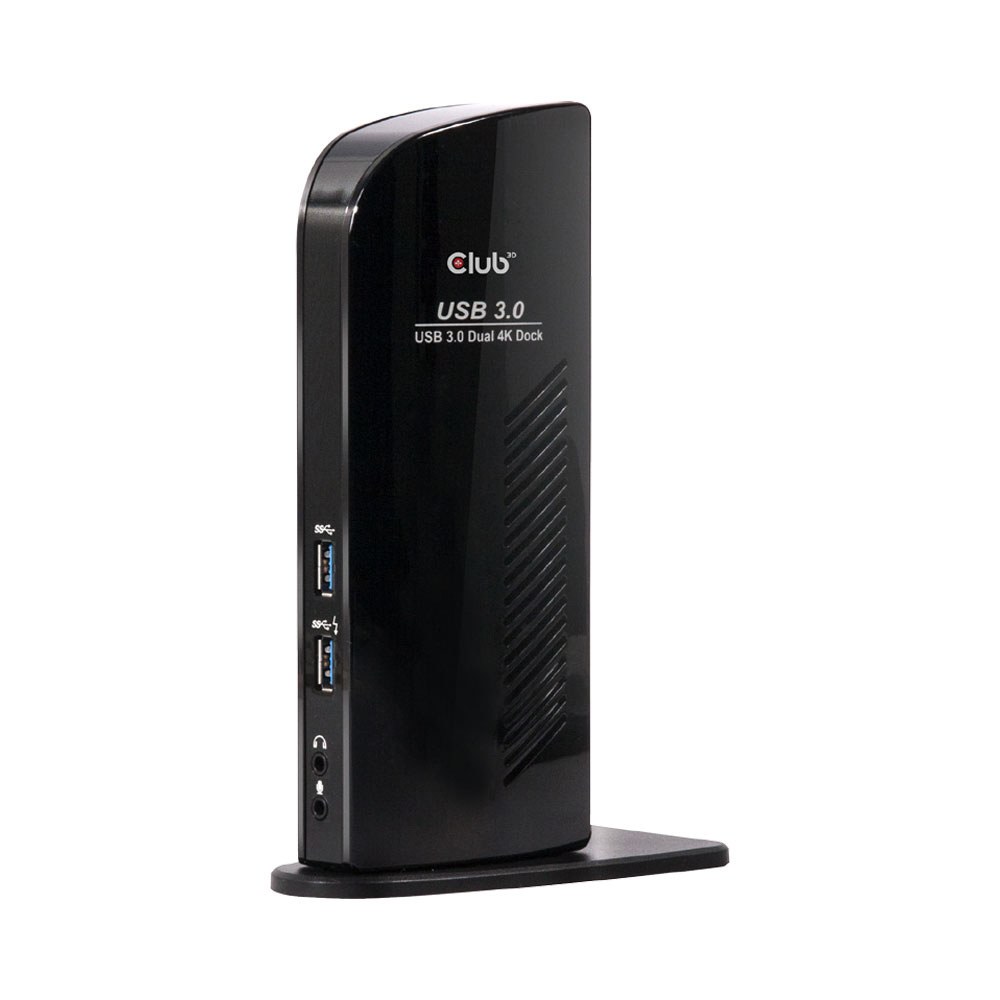

Club3D CSV-1460 — USB 3.0 universal docking station with DisplayLink DL-6950 chip, dual DisplayPort outputs, six USB ports, and Gigabit Ethernet for a complete single-cable desk setup.

The CSV-1460 uses the DisplayLink DL-6950 chipset — no DisplayPort Alternate Mode required on the host. Connect via USB 3.0 or the included USB-C cable and gain dual external DisplayPort monitors at up to 2×4K @ 60Hz, or a single 5K display at 5120×2880 @ 60Hz. Six USB 3.1 Gen 1 downstream ports (including one BC 1.2 quick-charge port) expand connectivity, and Gigabit Ethernet provides a stable wired network connection. Dual 3.5mm audio jacks handle headphones and microphone.

Key features

• DisplayLink DL-6950 chip — works via USB 3.0, no DP Alt Mode needed
• Dual DisplayPort outputs: 2×3840×2160 @ 60Hz or single 5120×2880 @ 60Hz
• 6× USB 3.1 Gen 1 downstream (1× BC 1.2 quick charge)
• Gigabit Ethernet (10/100/1000Mbps)
• 2× 3.5mm audio jack (headphone + microphone)
• USB-C cable included; compatible with USB-A 3.0 and USB-C hosts

Specifications

• Host connection: USB 3.0 / USB-C
• Display chip: DisplayLink DL-6950
• Video outputs: 2× DisplayPort
• Dual monitor max: 2× 3840×2160 @ 60Hz
• Single monitor max: 5120×2880 @ 60Hz
• USB: 6× USB 3.1 Gen 1
• Network: Gigabit Ethernet
