Club3D USB-C toHDMI 2.0 UHDActive

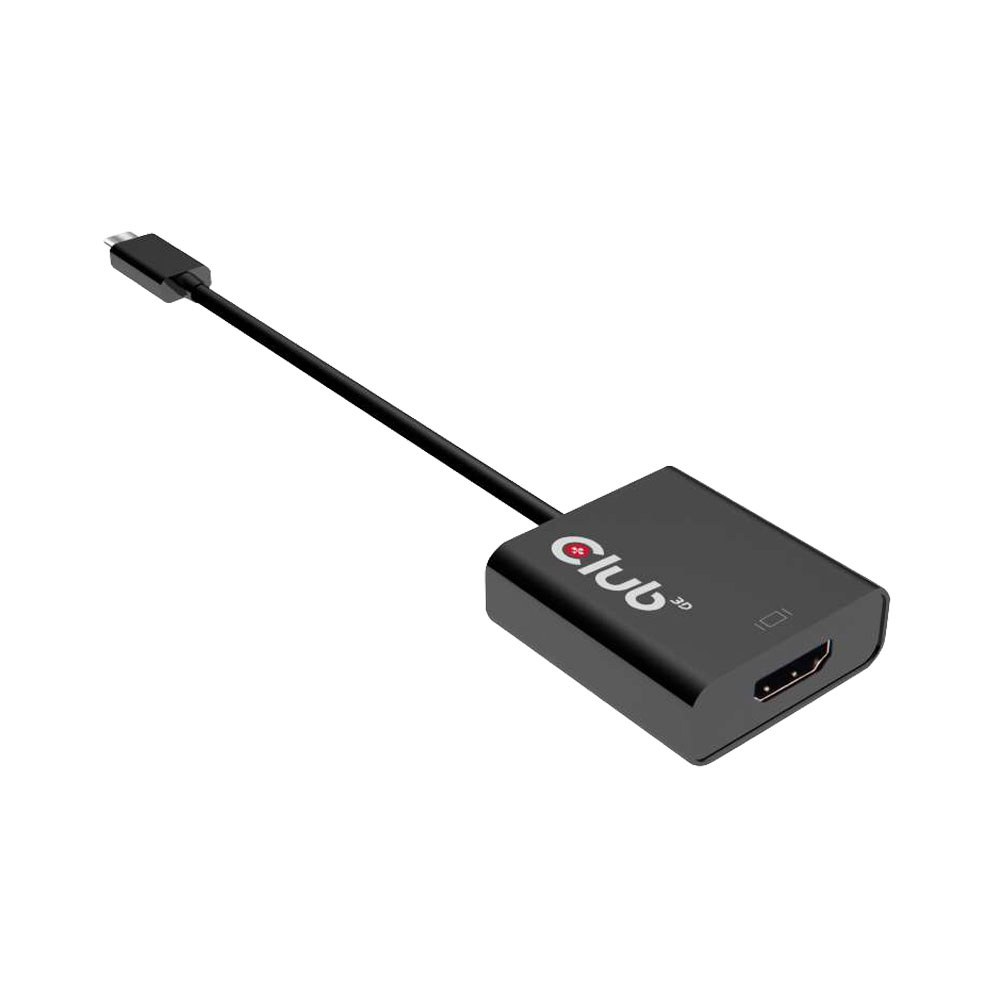

Club3D CAC-2504 — active USB-C to HDMI 2.0 adapter with a DisplayPort 1.4 receiver, supporting 4K UHD output and stereoscopic 3D transport from USB-C laptops and tablets.

The CAC-2504 uses a DP 1.4 receiver over the USB-C DisplayPort Alternate Mode connection, providing HBR2 link rates up to 5.4Gbps and a dual-pixel path at up to 600MHz for deep colour (16bpc) output. RGB, YCbCr 4:2:2, and 4:2:0 pixel formats are all supported. Stereoscopic 3D transport converts frame-sequential 3D to stacked top-bottom format for HDMI-connected 3D displays. The reversible USB-C connector fits either orientation.

Key features

• USB-C (USB 3.1 Type-C) to HDMI 2.0 active conversion
• DisplayPort 1.4 receiver, HBR2, 5.4Gbps link rate
• Dual pixel path up to 600MHz, 16bpc deep colour
• RGB / YCbCr 4:2:2 / 4:2:0 pixel formats
• Stereoscopic 3D: frame-sequential to top-bottom conversion
• Reversible USB-C connector
• DisplayPort Alternate Mode compliant

Specifications

• Input: USB 3.1 Type-C (DisplayPort Alt Mode)
• Output: HDMI 2.0
• DP receiver: DP 1.4, HBR2, 5.4Gbps
• Colour depth: Up to 16bpc
• 3D: Stereoscopic supported
• Conversion type: Active
