Club3D CSV-1550USB-C 3.2 Gen1DisplayPort

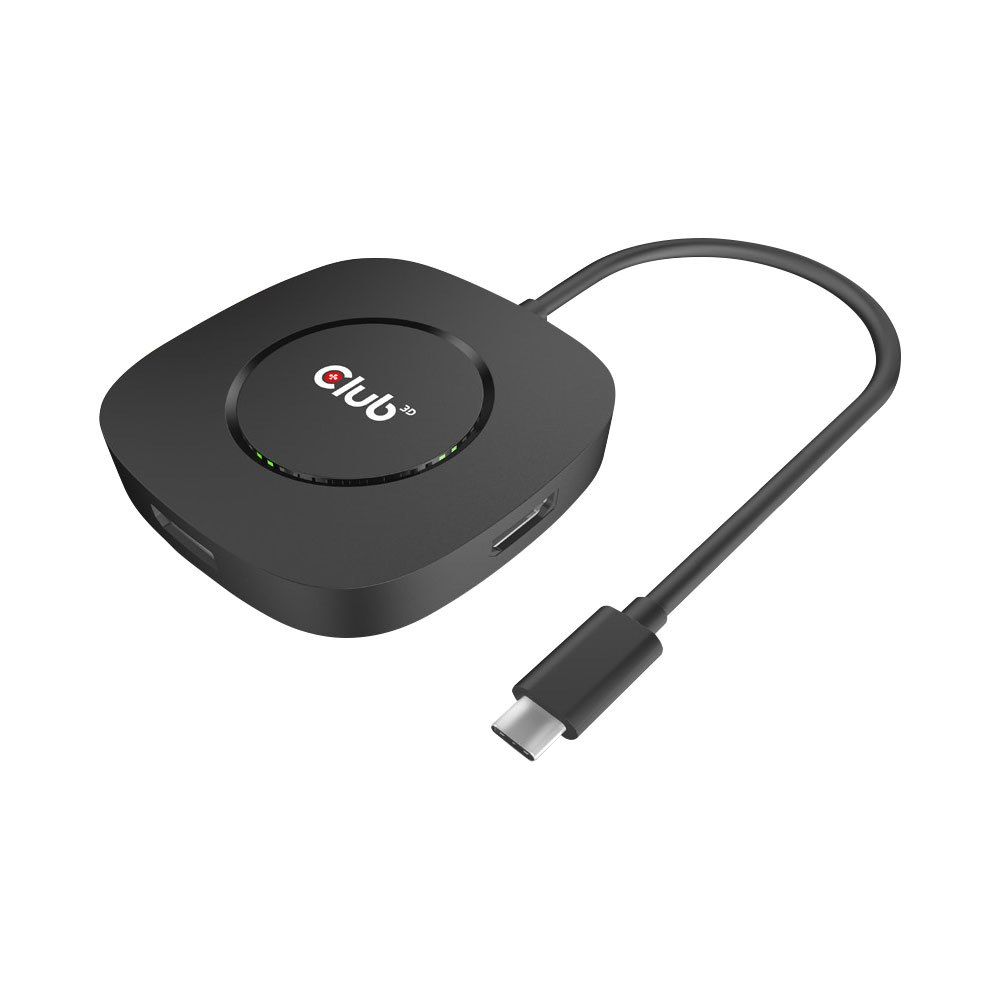

Club3D CSV-1550 USB-C 3.2 Gen1 DisplayPort 1.4 Triple Monitor MST Hub 4K 60Hz — a USB-C Multi-Stream Transport hub for driving up to three 4K @ 60Hz DisplayPort monitors from a single USB-C port.

The Club3D CSV-1550 uses DisplayPort 1.4 MST (Multi-Stream Transport) to extend a single USB-C 3.2 Gen1 connection to three simultaneous 4K @ 60Hz displays when DSC 1.2 is active, or two 4K @ 60Hz displays without compression. HDR and HDCP 2.2 are supported, and the hub operates in both SST (single-stream) and 3-stream MST modes.

Key features

• Drive up to 3 × 4K @ 60Hz DisplayPort monitors via DSC 1.2
• 2 × 4K @ 60Hz @ 24bpp without compression
• DisplayPort 1.4 with HDCP 2.2 and HDR
• SST or 3-stream MST mode
• USB-C 3.2 Gen1 host connection

Specifications

• Host interface: USB-C 3.2 Gen1
• Display standard: DisplayPort 1.4
• Max displays: 3 × 4K @ 60Hz (DSC 1.2) / 2 × 4K @ 60Hz (uncompressed)
• Content protection: HDCP 2.2
• HDR: Supported
• MST streams: Up to 3
