Club3D CSV-1591USB-C 4-in-1 PortReplicator

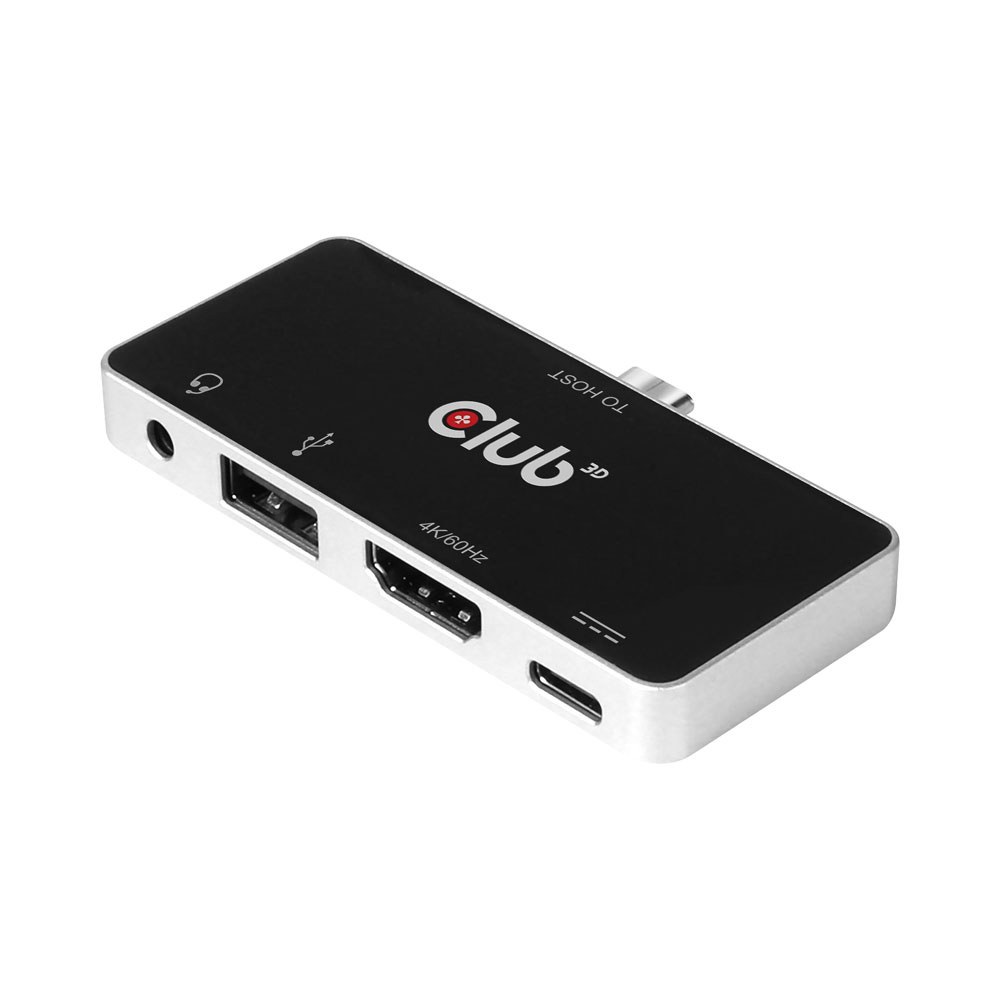

Club3D CSV-1591 USB-C 4-in-1 Port Replicator with HDMI, USB-C PD, USB-A & Audio — a compact USB-C hub adding HDMI 4K @ 60Hz, USB-C PD passthrough, USB-A 2.0, and audio to a laptop’s single USB-C port.

The Club3D CSV-1591 expands a single USB-C (DP 1.2 Alt-Mode) port into four connections for desk use. The HDMI output supports 4K @ 60Hz at 4:4:4 8-bit with HDR and HDCP 2.2 / 1.4. USB-A 2.0 delivers up to 480Mbps data transfer with BC 1.2 charging at 7.5W. A USB-C passthrough port provides PD charging for the host notebook.

Key features

• HDMI output — 4K @ 60Hz, 4:4:4, HDR, HDCP 2.2 / 1.4
• USB-C PD passthrough charging
• USB-A 2.0 with BC 1.2 charging (7.5W)
• Audio output
• USB-C host via DP 1.2 Alt-Mode (21.6Gbps total)

Specifications

• Host interface: USB-C (DP 1.2 Alt-Mode, 5.4Gbps × 4 lanes)
• HDMI output: 4K @ 60Hz, 4:4:4 8-bit, 18Gbps, HDR
• Content protection: HDCP 2.2, HDCP 1.4
• USB-A: USB 2.0, 480Mbps, BC 1.2 (7.5W charging)
• USB-C: PD passthrough charging
• Audio: Yes
