Club3D USB-C/A2-in-1 PortReplicator,

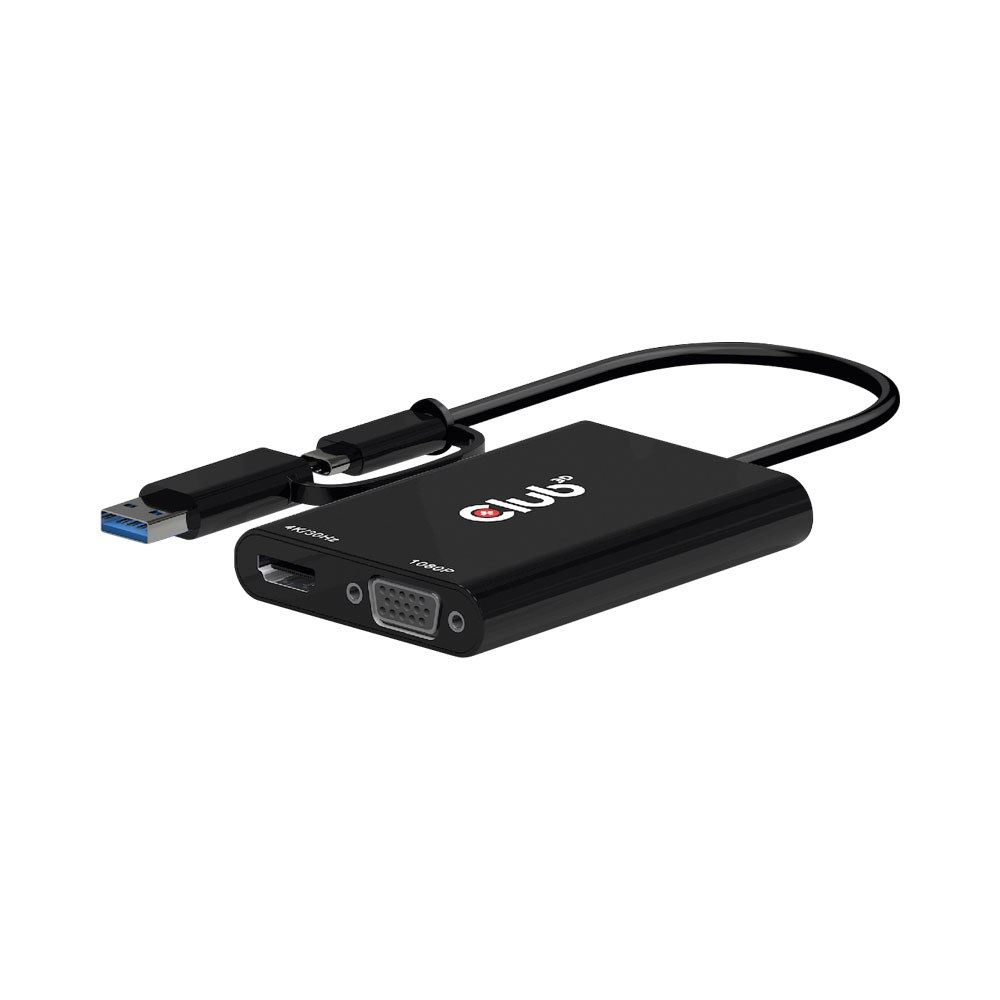

Club3D CSV-1611 — 2-in-1 USB-C/A port replicator supporting dual display output via HDMI at 4K@30Hz and VGA at 1080p@60Hz simultaneously using MST, with no external power required.

The CSV-1611 accepts either a USB Gen1 Type-C or Type-A input from the host, making it compatible with a wide range of laptops and desktops. Under MST (Multi-Stream Transport) mode on Windows, both HDMI (up to 3840×2160@30Hz) and VGA (up to 1920×1080@60Hz) outputs operate simultaneously. On MacBooks with M1, dual output is supported. No external power supply is needed — the device draws power from the host USB port.

Key features

• USB Gen1 Type-C or Type-A host input (2-in-1)
• HDMI output: up to 4K (3840×2160) @30Hz
• VGA output: up to 1080p (1920×1080) @60Hz
• MST dual display: 4K@30Hz + 1080p@60Hz simultaneously
• Compatible with MacBook M1 (dual output)
• Bus-powered — no external PSU required
• HDCP 1.4 content protection

Specifications

• Model: CSV-1611
• Host: USB Gen1 Type-C or Type-A
• HDMI max: 3840×2160 @30Hz
• VGA max: 1920×1080 @60Hz
• Colour depth: 8-bit
• HDCP: 1.4
• Power: Bus-powered
