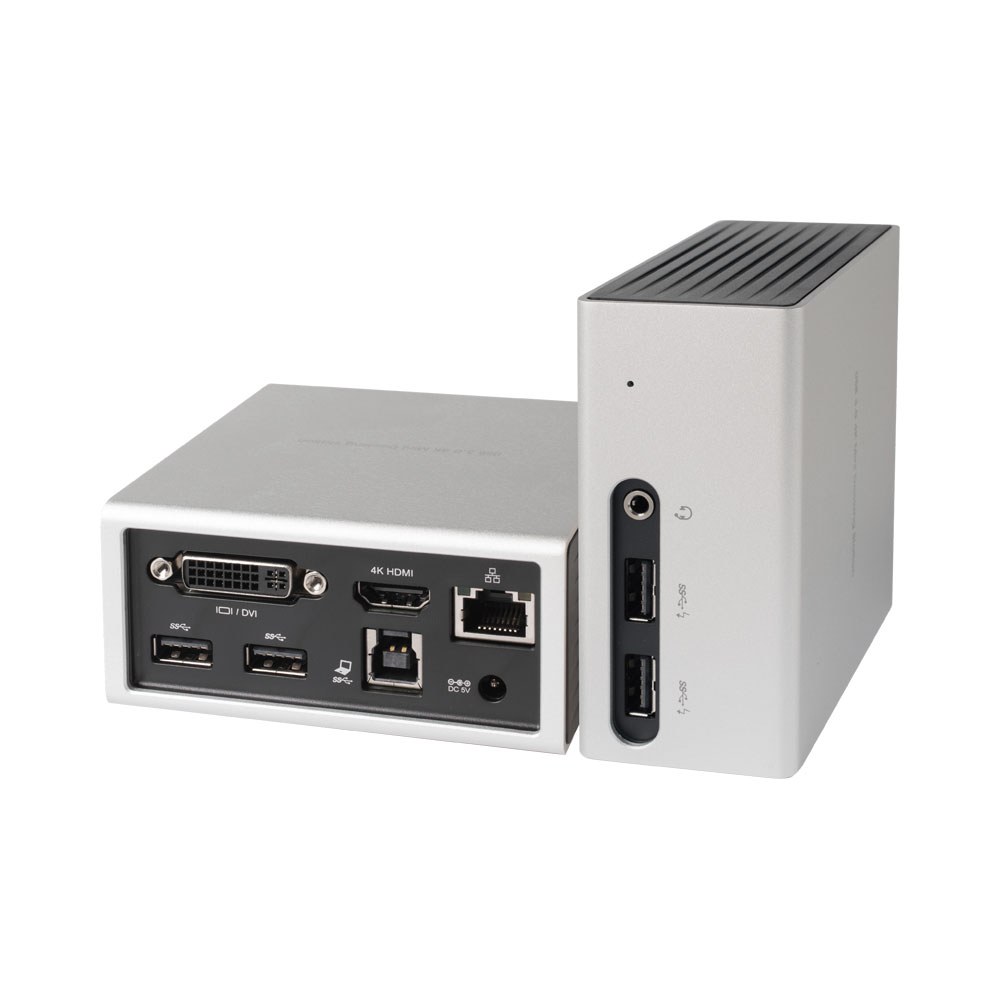

Club3D USB 3.2Gen1 4K@30Hz MiniDocking

Club3D CSV-3104D — compact USB 3.2 Gen1 mini docking station with dual monitor support, Gigabit Ethernet, and four USB downstream ports, powered by the DisplayLink DL-5900 chipset.

The CSV-3104D adds dual external monitor capability and a full set of ports to any USB 3.2 Gen1 laptop or desktop. The DL-5900 DisplayLink chipset supports up to 4K@30Hz on a single HDMI display, or dual 1920×1200@60Hz when both HDMI and DVI-I outputs are in use. Gigabit Ethernet provides wired network connectivity and 3.5mm audio jacks cover headphone and microphone connections.

Key features

• Dual monitor: HDMI 1.4 + DVI-I via DisplayLink DL-5900
• Single display: up to 4K (3840×2160) @30Hz
• Dual display: up to 2× 1920×1200 @60Hz
• 4× USB 3.2 Gen1 downstream ports (2× with BC1.2 charging)
• Gigabit Ethernet
• 3.5mm stereo audio + microphone
• Dimensions: 9.5 × 9.4 × 4.4cm

Specifications

• Model: CSV-3104D
• Host connection: USB 3.2 Gen1
• Display outputs: HDMI 1.4 + DVI-I
• Max resolution: 4K@30Hz (single) / 1920×1200@60Hz (dual)
• USB ports: 4× USB 3.2 Gen1
• Network: Gigabit Ethernet
• Chipset: DisplayLink DL-5900
