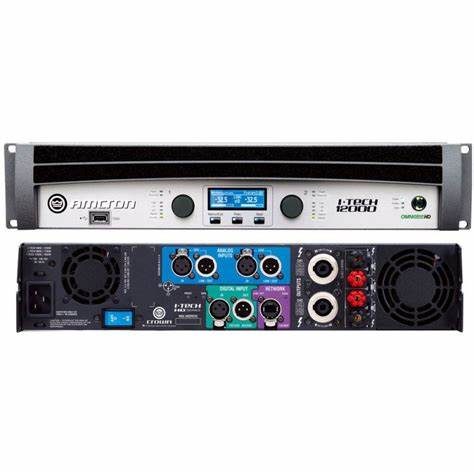

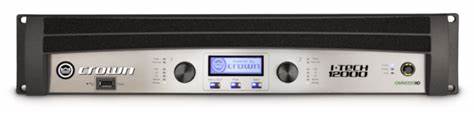

CROWN IT12000HD-U-EKFX - Two-channel, 4500W @ 4Ω Power Amplifier
The CROWN IT12000HD-U-EKFX is a high-performance professional power amplifier designed for large venues and demanding sound reinforcement applications. It delivers pristine audio quality and unmatched power output, making it ideal for touring and permanent installations.
Key Features
- Two-channel amplifier delivering 4500W at 4Ω
- Part of Crown's renowned I-Tech HD series
- Patented Class-I circuitry for maximum efficiency and reduced heat generation
- Advanced DSP features for flexibility and precise sound control
- Integrated network control and monitoring with high-resolution LCD display
- Supports Harman HiQnet protocol for seamless system integration
- Rugged 2U rackmount chassis for durability
- Advanced protection circuits against overloads, short circuits, and overheating
- Consistent, distortion-free performance during extended high-output use
Overview
The IT12000HD-U-EKFX utilises patented Crown technologies to ensure reliable and efficient operation. Its integrated network control allows for easy configuration on the unit or remotely via Ethernet. This amplifier is widely chosen by audio engineers, rental companies, and performance venues for concerts, theatres, and stadiums requiring state-of-the-art sound reinforcement and operational reliability.
( Specifications )
| AC Input Voltage Range | 100 – 240 V AC, 50/60 Hz |
| Brand | CROWN |
| Certifications | CE, RoHS, FCC |
| Chassis Material | Steel |
| Class Type | Class I |
| Compatible Software | Harman Audio Architect, System Architect |
| Controls | Front panel LCD, Encoder, Power Switch, Network control |
| Cooling | Front-to-rear forced air |
| Country of Manufacture | USA |
| Crossover types | Butterworth, Bessel, Linkwitz-Riley |
| Crosstalk (at 1 kHz) | > 85 dB |
| Damping Factor (at 20 Hz – 1 kHz) | > 5000 |
| Delay Range | Up to 2 seconds per channel |
| Digital Signal Processing (DSP) | Onboard BSS OMNIDRIVE HD |
