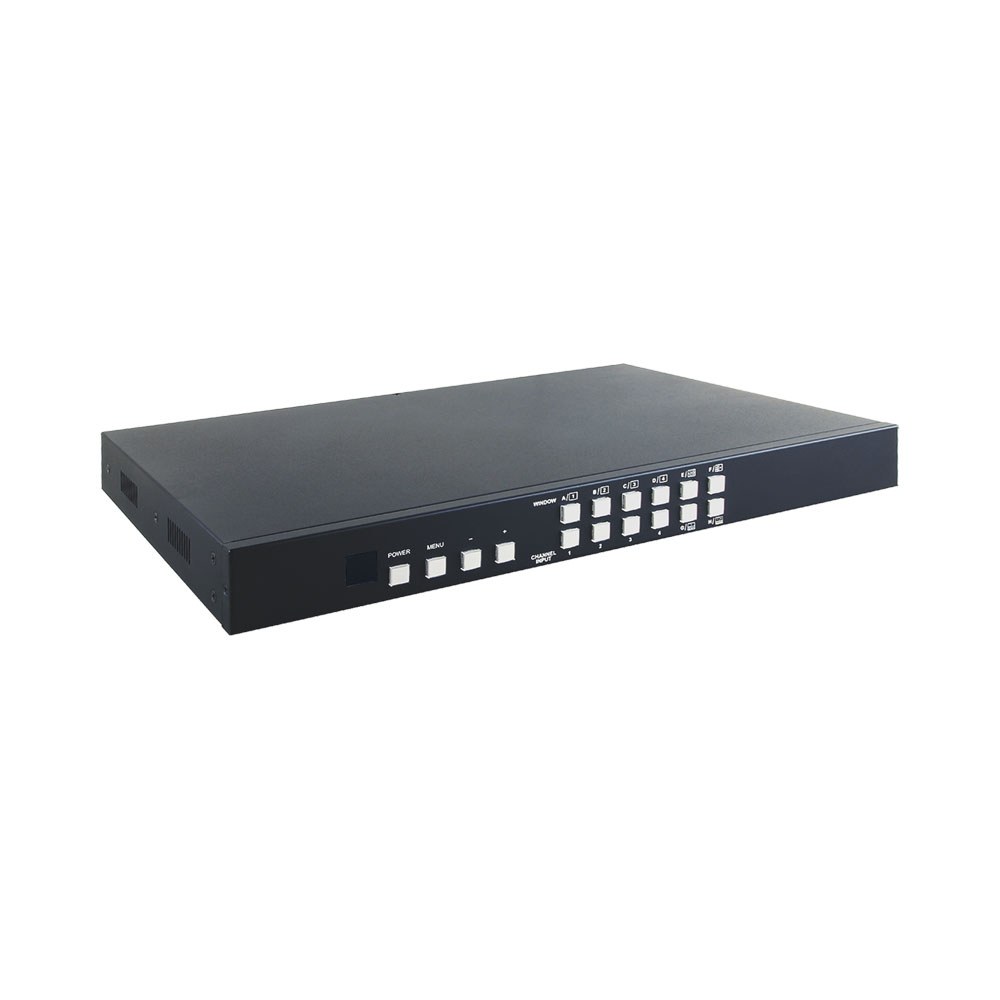

CYP CDPS-41SQ 4×1HDMI Switcher withPiP,

CYP CDPS-41SQ — 4×1 HDMI switcher and multi-window display processor supporting seamless source switching, Picture-in-Picture (PiP), Picture-outside-Picture (PoP), and simultaneous display of up to four input windows with independent size, position, and layer priority control.

The CDPS-41SQ routes any of four HDMI inputs to a single HDMI output with processing functions for multi-window presentation layouts. Window size and screen position are independently adjustable, and layer priority determines which window appears in front. Video processing functions include crossfade transitions, chroma-key compositing, mirror, and 90°/180° rotation. A user-definable graphic can be overlaid on top of the video output. Eight dedicated hot-keys handle window and source selection; four hot-keys store and recall customisable window layout presets.

Key features

• 4×1 HDMI switcher with multi-window output
• PiP, PoP, and multi-window display (up to 4 windows)
• Seamless switching between sources and windows
• Independent window size, position, and layer priority
• Crossfade, chroma-key, mirror, and rotate (90°/180°)
• Custom graphic overlay on video output
• 8× hot-keys (window/source) + 4× layout preset hot-keys

Specifications

• Model: CDPS-41SQ
• Inputs: 4× HDMI
• Output: 1× HDMI
• Display modes: PiP, PoP, multi-window (up to 4 sources)
• Processing: Crossfade, chroma-key, mirror, rotate
• Hot-keys: 8× window/source + 4× layout preset
