CYP CDPS-4KQ-AD 4K1×4 HDMI VideoWall

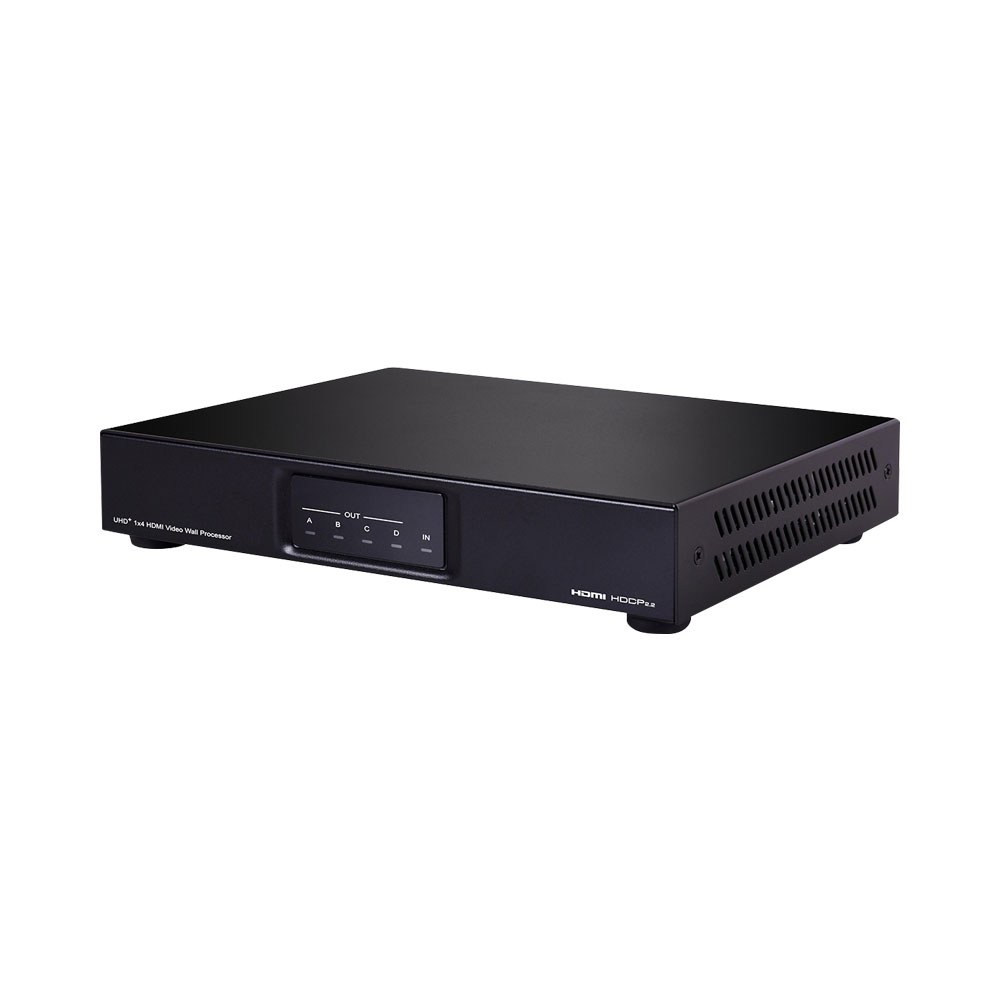

CYP CDPS-4KQ-AD — 4K 1×4 HDMI video wall processor accepting a single 4K/18Gbps source and distributing it across four 1080p @60Hz HDMI outputs in a tiled video wall configuration, with HDR-to-SDR conversion, full audio format passthrough, and RS-232 automation.

The CDPS-4KQ-AD accepts 4K sources at up to 4096×2160 @60Hz (4:4:4, 8-bit) or 4K @60Hz YUV 4:2:0 with up to 12-bit colour (HDR). Each of the four HDMI outputs is fixed at 1080p @60Hz, with the 4K source scaled and tiled across the display array. HDR content is automatically converted to SDR for the 1080p outputs. Audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream are passed through. RS-232 control enables basic signal event automation and integration with third-party control systems.

Key features

• 1× HDMI in (4K up to 18Gbps / 600MHz)
• 4× HDMI out (fixed 1080p @60Hz)
• 4K input: up to 4096×2160 @60Hz, 4:4:4 8-bit or YUV 4:2:0 12-bit
• HDR automatically converted to SDR for 1080p output
• Audio passthrough: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
• RS-232 control for signal automation

Specifications

• Model: CDPS-4KQ-AD
• Input: 1× HDMI, 18Gbps (600MHz)
• Output: 4× HDMI, fixed 1080p @60Hz
• Max input resolution: 4096×2160 @60Hz (4:4:4, 8-bit)
• HDR: Input supported; auto-converted to SDR on output
• Audio: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
• Control: RS-232
