CYP CH-1109 HDMIOver CAT6/7Extender

CYP CH-1109 — HDMI over CAT6/7 extender kit transmitting uncompressed 1080p@60Hz video with Deep Colour, IR pass-through, RS232, PoE, and Ethernet over a single CAT6/7 cable up to 100m.

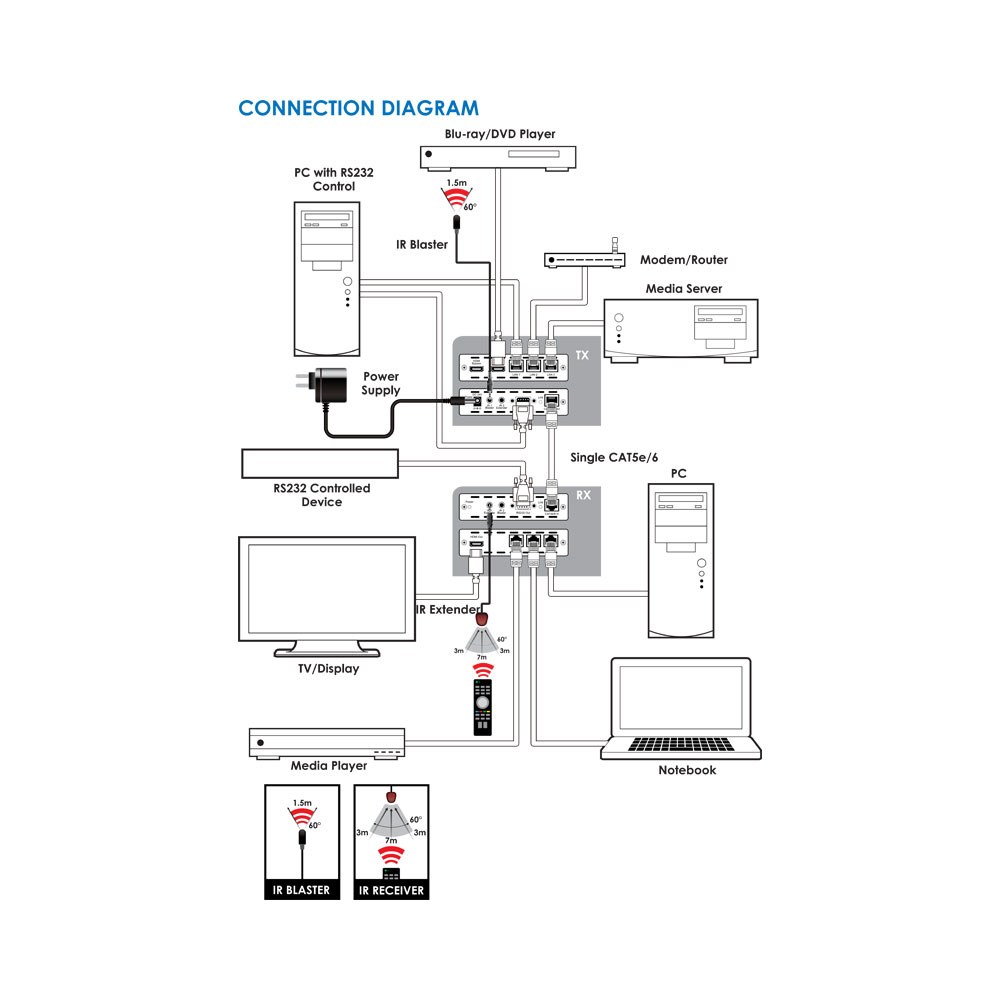

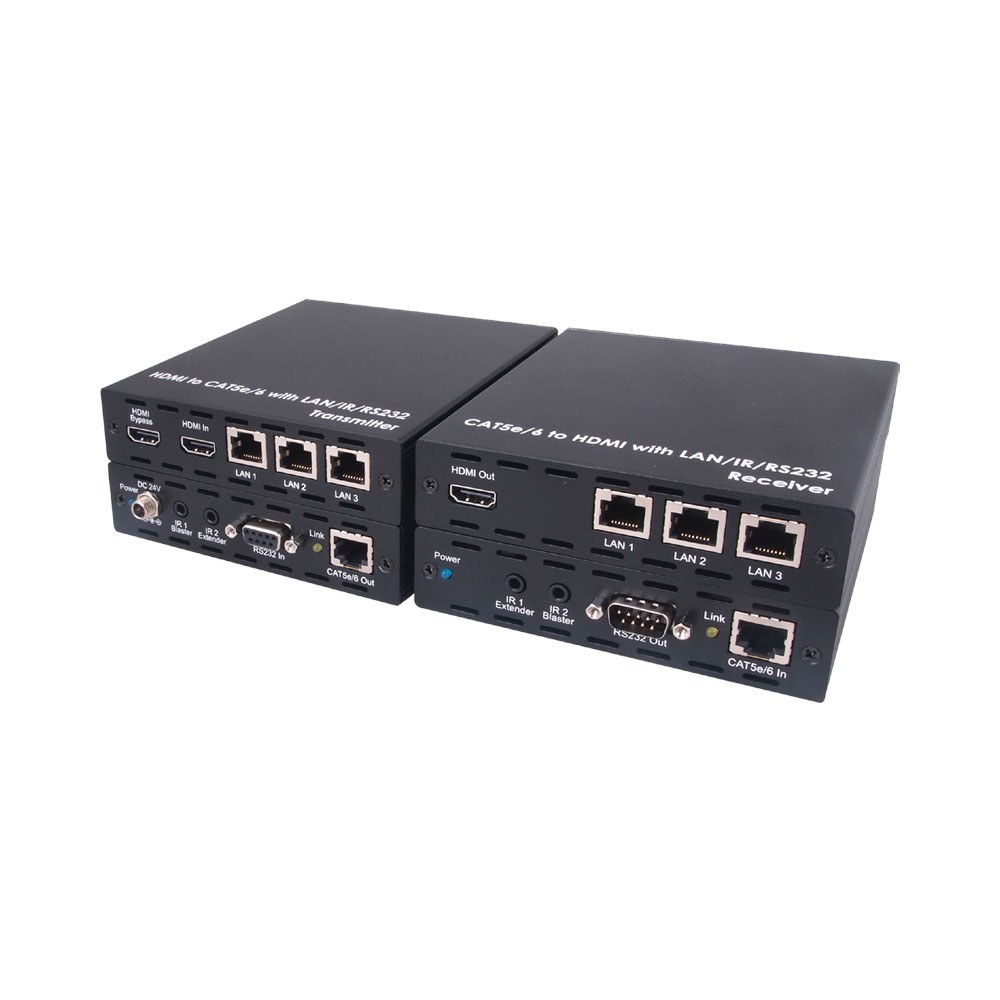

The CH-1109 transmitter and receiver pair extends HDMI signals across standard structured cabling, eliminating the need for long HDMI cables. PoE removes the need for a separate power supply at the receiver end. The integrated Ethernet switch allows up to 6 devices to share a 100Mbps network connection simultaneously over the same cable run. HDMI 3D, 4K, and CEC bypass are supported, with IR and RS232 pass-through for remote control and automation system integration.

Key features

• HDMI over single CAT6/7 cable — up to 100m
• 1080p@60Hz with Deep Colour (uncompressed)
• HDMI 3D, 4K, and CEC bypass support
• IR pass-through for remote control over the extension link
• RS232 pass-through for automation system control
• PoE — receiver powered over the CAT cable from the transmitter
• Integrated 100Mbps Ethernet switch — up to 6 connections

Specifications

• Model: CH-1109
• Video: HDMI 1080p@60Hz, Deep Colour, 3D, 4K
• Transmission medium: CAT6 or CAT7
• Max range: 100m
• Power: PoE (receiver powered from transmitter)
• Ethernet: 100Mbps, up to 6 connections
• Control: IR pass-through, RS232 pass-through, CEC bypass
