CYP CLUX-H2SDIHDMI to 3G SDIDual-Output

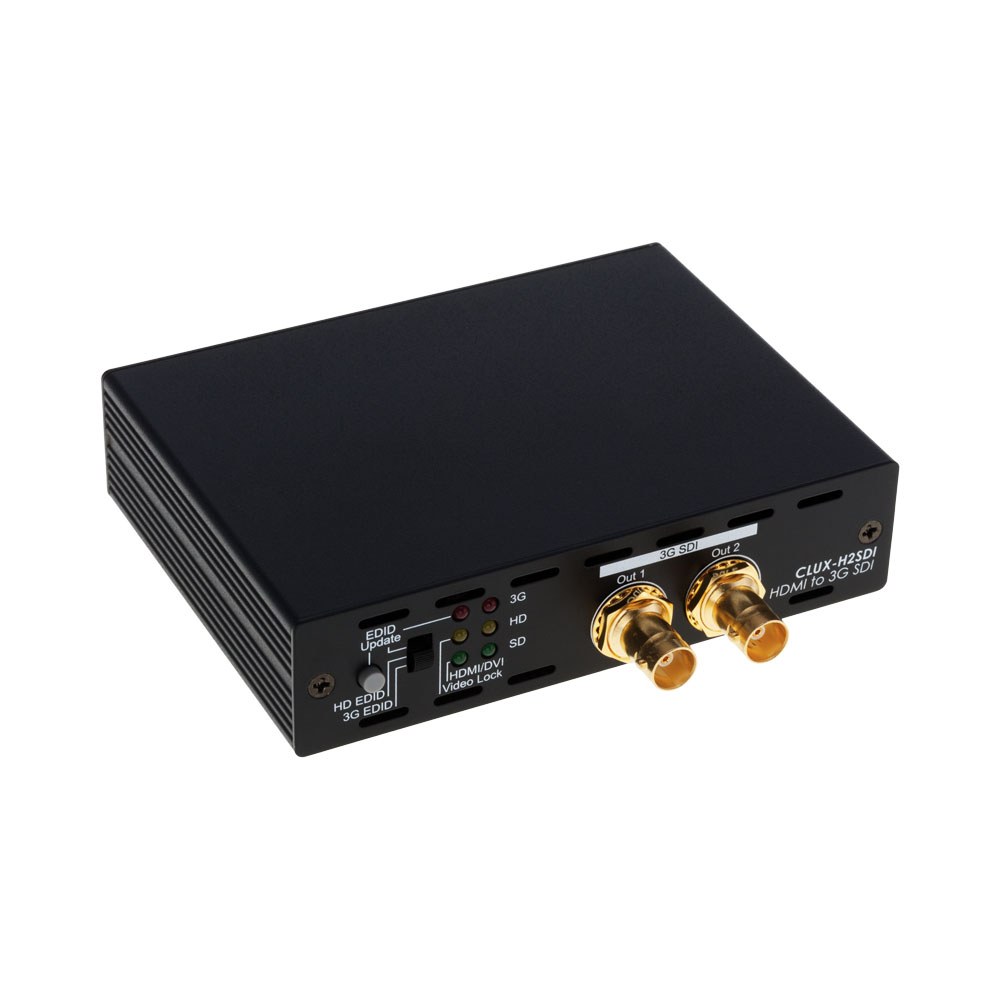

CYP CLUX-H2SDI — HDMI to 3G SDI converter with two simultaneous SDI outputs, supporting SD-SDI (SMPTE 259M-C, 270Mbps), HD-SDI (SMPTE 292M, 1.485Gbps), and 3G-SDI (SMPTE 424M/425M-AB, 2.97Gbps) output formats from a single HDMI source, for connecting HDMI sources to professional broadcast and production SDI displays and monitors.

The CLUX-H2SDI presents a single HDMI source on two SDI displays simultaneously, enabling signal distribution in broadcast and production environments where SDI cabling is already installed. The converter automatically selects the appropriate SDI bitrate based on the HDMI input signal: 480i/576i sources output at SD-SDI (270Mbps); 720p/1080i at HD-SDI (1.485Gbps); 1080p at 3G-SDI (2.97Gbps or 2.97/1.001Gbps). All standard SDI bitrates are supported including drop-frame variants.

Key features

• HDMI input to 2× SDI output simultaneously
• SD-SDI: SMPTE 259M-C, 270Mbps (480i/576i)
• HD-SDI: SMPTE 292M, 1.485Gbps (720p/1080i)
• 3G-SDI: SMPTE 424M/425M-AB, 2.97Gbps (1080p)
• Drop-frame bitrate variants supported

Specifications

• Model: CLUX-H2SDI
• Input: 1× HDMI
• Output: 2× SDI (simultaneous)
• SDI bitrates: 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.97Gbps, 2.97/1.001Gbps
• Standards: SMPTE 259M-C, 292M, 424M, 425M-AB
