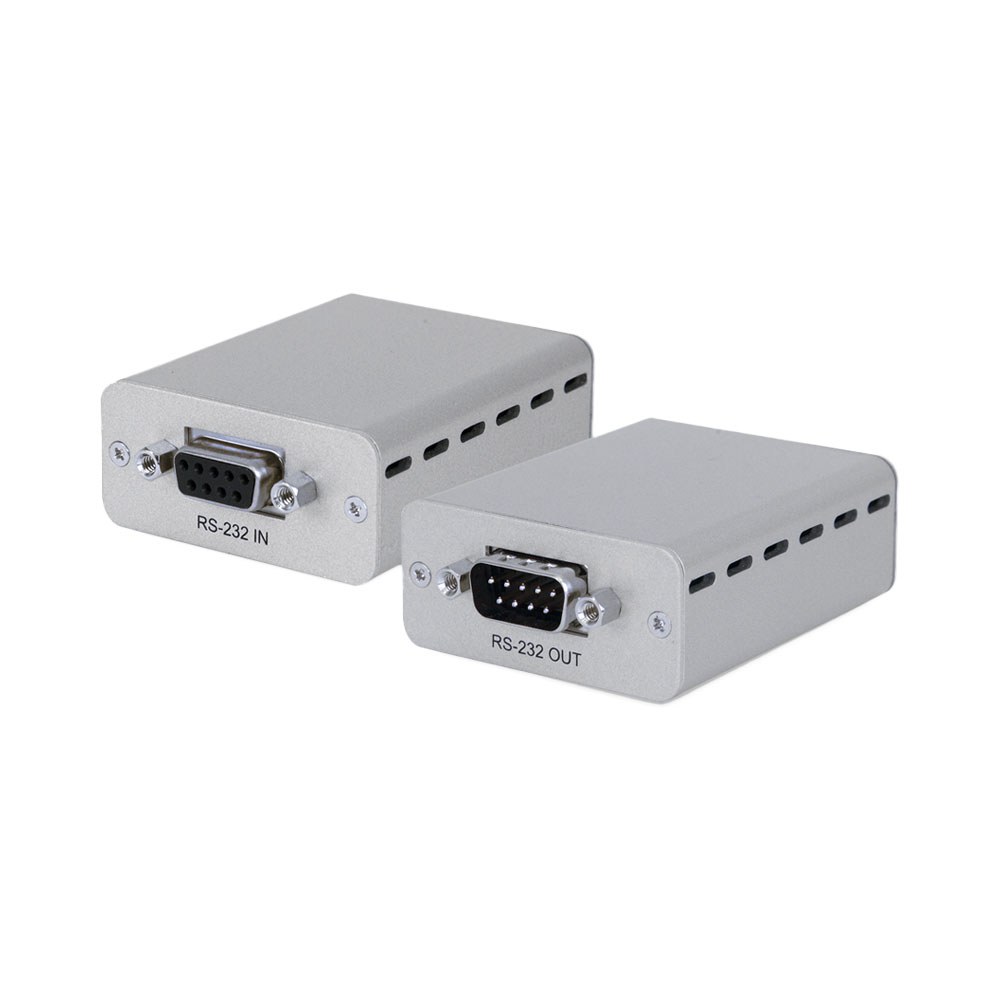

CYP CRS-232 RS-232Extender overSingle

CYP CRS-232 — RS-232 serial extender transmitting bidirectional RS-232 control signals over a single CAT5e cable (or better) to distances up to 250m, supporting baud rates from 110 to 921,600bps for AV control system integration and digital signage applications.

The CRS-232 removes the 15m cable length limitation of standard RS-232 by using standard structured CAT5e/6/7 cabling already present in the building. Any RS-232-compatible device can be connected at either end of the extended link for full bidirectional serial control. The wide baud rate range (110–921,600bps) with 8-bit data supports virtually all commercial control systems, media players, and digital signage controllers. A typical application is extending the RS-232 control port of a display, projector, or AV device to a control system rack located up to 250m away.

Key features

• Extends RS-232 up to 250m over single CAT5e or better
• Baud rates: 110 to 921,600bps
• 8-bit data
• Bidirectional RS-232 pass-through
• For AV control, digital signage, and building automation

Specifications

• Model: CRS-232
• Interface: RS-232 both ends
• Cable: Single CAT5e / CAT6 / CAT7
• Max range: 250m
• Baud rates: 110–921,600bps
• Data: 8-bit
