CYP CH-1529RX HDMIExtender Receiverover

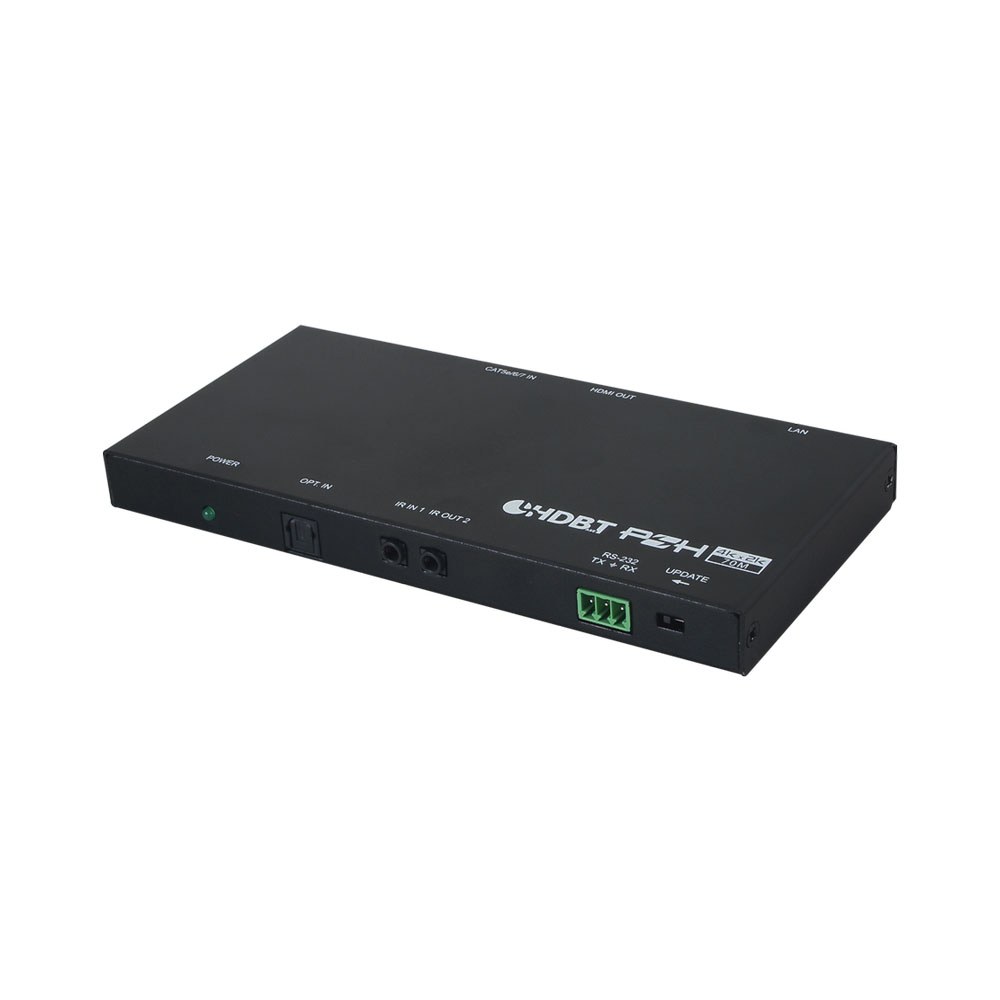

CYP CH-1529RX HDMI Extender Receiver over Cat6/7 with PoH — professional HDMI receiver unit for long-distance 4K signal distribution over Cat6 or Cat7 cable.

The CH-1529RX is the receiver component of a CYP HDMI-over-Cat extender system. It receives 4K@60Hz HDMI signals and optical audio return (OAR) via Cat6 or Cat7 cable, and is powered remotely at 48V over the same cable (Power over HDBaseT), eliminating the need for a local power supply. Supports HDCP 2.2 and CEC bypass for seamless AV control system integration. Pairs with a compatible CYP transmitter.

Key features

• 4K@60Hz (4:4:4) and 3D HDMI support
• HDCP 2.2 and HDCP 1.0 compliant
• Output up to 4K@50/60Hz (YUV 4:2:0)
• 12-bit Deep Colour support up to 1080p@60Hz
• CEC bypass
• Optical Audio Return (OAR) function
• 48V Power over HDBaseT (PoH) — no local power supply needed
• DVI 1.0 compatible

Specifications

• Signal: HDMI over Cat6/Cat7
• Max resolution: 4K@60Hz (4:4:4)
• HDCP: 2.2 / 1.0
• Power: 48V PoH from transmitter
• Audio return: Optical Audio Return (OAR)
• Cable type: Cat6 or Cat7
