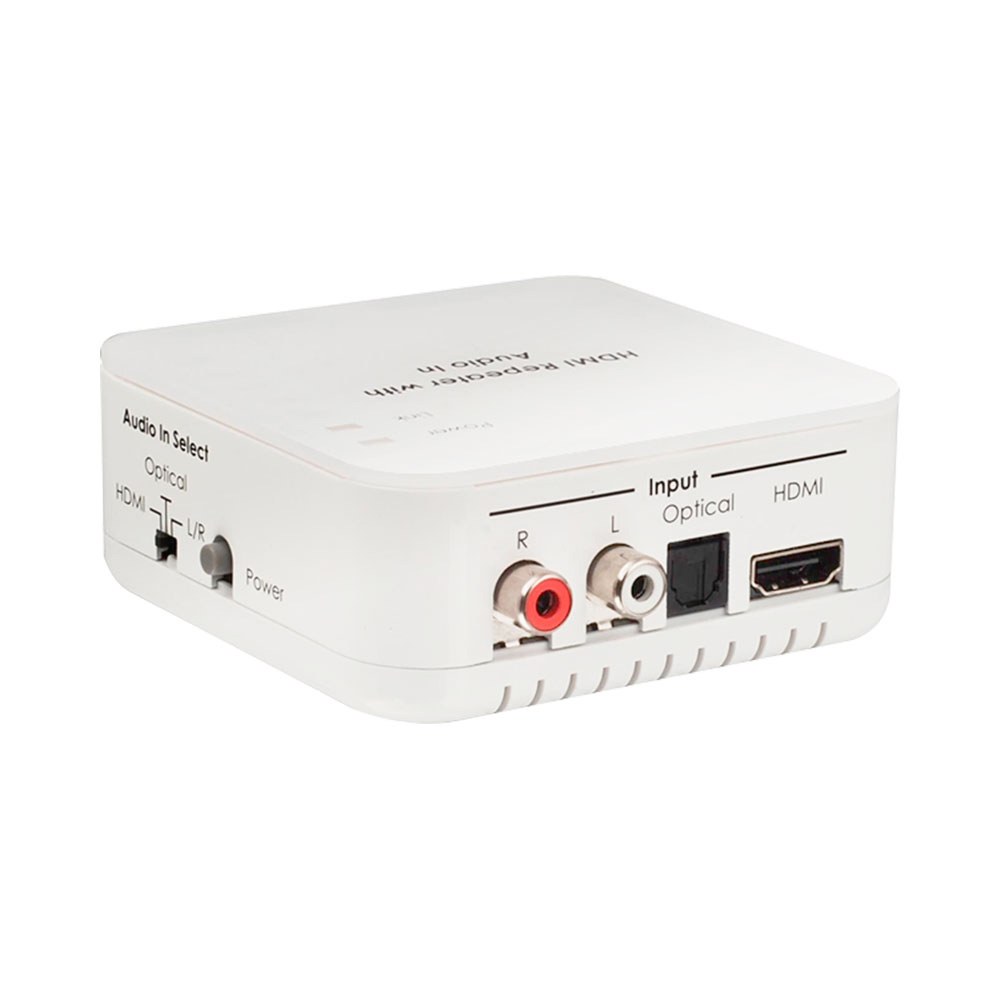

CYP CLUX-11CA HDMI Audio Inserter with TOSLINK and RCA Inputs — inserts digital or analogue audio into an HDMI signal for sources that carry no embedded audio.

The CLUX-11CA accepts HDMI video plus audio from a TOSLINK optical or stereo RCA input, embeds the audio into the HDMI output stream, and passes it to the connected display. Supports HDMI sampling rates up to 192kHz and High-Bit-Rate audio. Built-in Audio EDID management allows switching between LPCM 2CH and the display's native audio format. Compliant with HDMI, HDCP 1.2, and DVI 1.0.

Key features

• Inserts TOSLINK or RCA audio into HDMI stream
• HDMI, HDCP 1.2 and DVI 1.0 compliant
• HDMI audio sampling rates up to 192kHz
• Supports High-Bit-Rate (HBR) audio
• Built-in audio EDID switching
• Max HDMI cable length 15m at 1080p 8-bit
• TMDS clock frequency up to 225MHz

Specifications

• Video input: HDMI
• Audio inputs: TOSLINK optical, stereo RCA
• Output: HDMI (audio + video)
• HDMI sampling rate: Up to 192kHz
• Optical sampling rate: Up to 48kHz
• HDCP: 1.2
• TMDS clock: 225MHz
