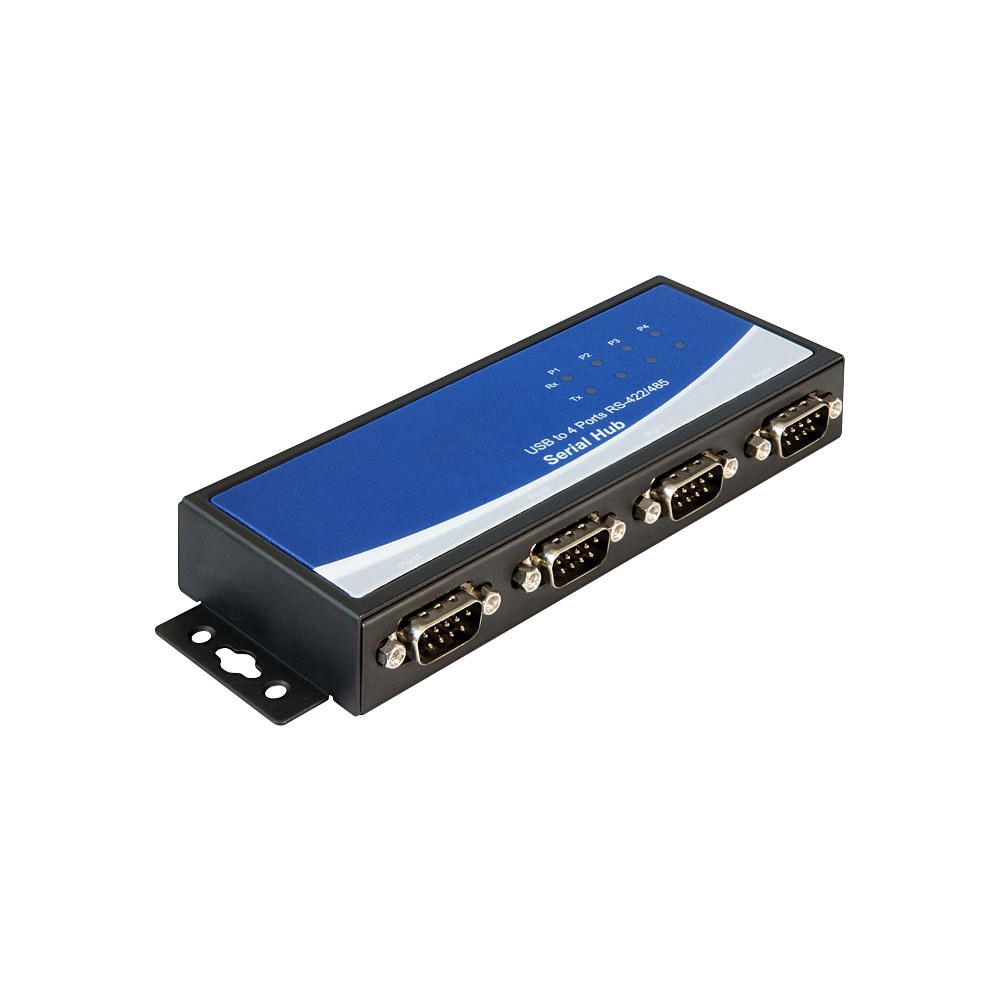

Delock 87587 USB2.0 to 4× SerialRS422/485

Delock 87587 — USB 2.0 to 4× RS422/485 serial converter with DIP-switch mode selection and ±15kV ESD protection for industrial applications.

The Delock 87587 adds four independent RS422 or RS485 serial ports to any USB 2.0 host using the proven FT4232HL chipset. Each port switches automatically between RS422 and RS485 modes, with DIP switches for per-port configuration and a jumper terminator on the internal pin header. Its wall-mountable housing and built-in ESD protection make it suitable for industrial and AV control installations.

Key Features

• 1× USB 2.0 Type-B Female to 4× RS422/485 DB9 Male
• Automatic recognition and switching between RS422 and RS485
• 4× DIP switches for per-port RS422/485 operation setting
• Data transfer rate up to 1Mbps
• ±15kV ESD protection on all signal pins
• LED indicators for TxD/RxD activity
• Wall-mounting integrated in housing

Specifications

• USB: 2.0 Type-B Female
• Serial Ports: 4× RS422/485 DB9 Male
• Chipset: FT4232HL, SP3078EE
• Max Data Rate: 1Mbps
• ESD Protection: ±15kV on all signal pins
• Power: 5V DC jack
