Delock USB 3.0Type-A Female to10-Pin

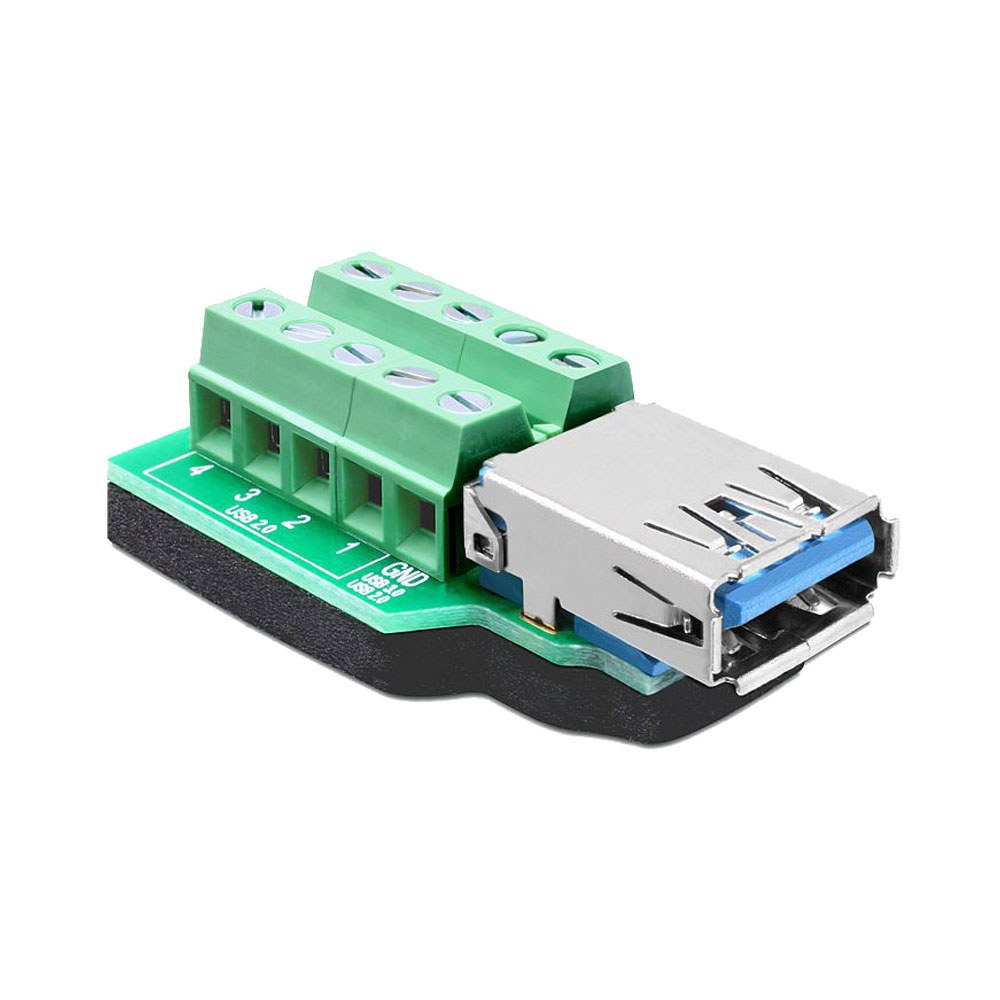

Delock 65370 — USB 3.0 Type-A female to 10-pin screw terminal block adapter, breaking out all USB 3.0 signal and power lines to a 3.81mm-pitch terminal block for custom or embedded wiring.

USB 3.0 carries ten lines (VBUS, D+, D-, SSTX+, SSTX-, GND, SSRX+, SSRX-, GND_DRAIN, and shield) which the 65370 routes directly to individually addressable screw terminals. This makes it useful in industrial automation, embedded systems development, and custom test fixtures where a standard USB cable would be impractical. An anti-slip isolating pad on the underside stabilises the adapter during wiring. Larger footprint than the 6-pin Mini/Micro-USB variants to accommodate the additional SuperSpeed lines.

Key features

• USB 3.0 Type-A female connector
• 10-pin screw terminal block breakout
• 3.81mm terminal pitch
• Anti-slip isolating pad on underside
• Exposes all USB 3.0 signal and power lines

Specifications

• Connector A: USB 3.0 Type-A female
• Connector B: 10-pin terminal block
• Terminal pitch: 3.81mm
• Dimensions (L × W × H): 39.0 × 23.0 × 13.7mm
• Part number: 65370
