Delock DisplayPort1.2 Female toFemale

Delock 85113 — DisplayPort 1.2 female to female panel-mount extension cable, supporting 4K 60Hz, gold-plated, 30 AWG, for building DisplayPort pass-through ports into equipment housings and custom panels.

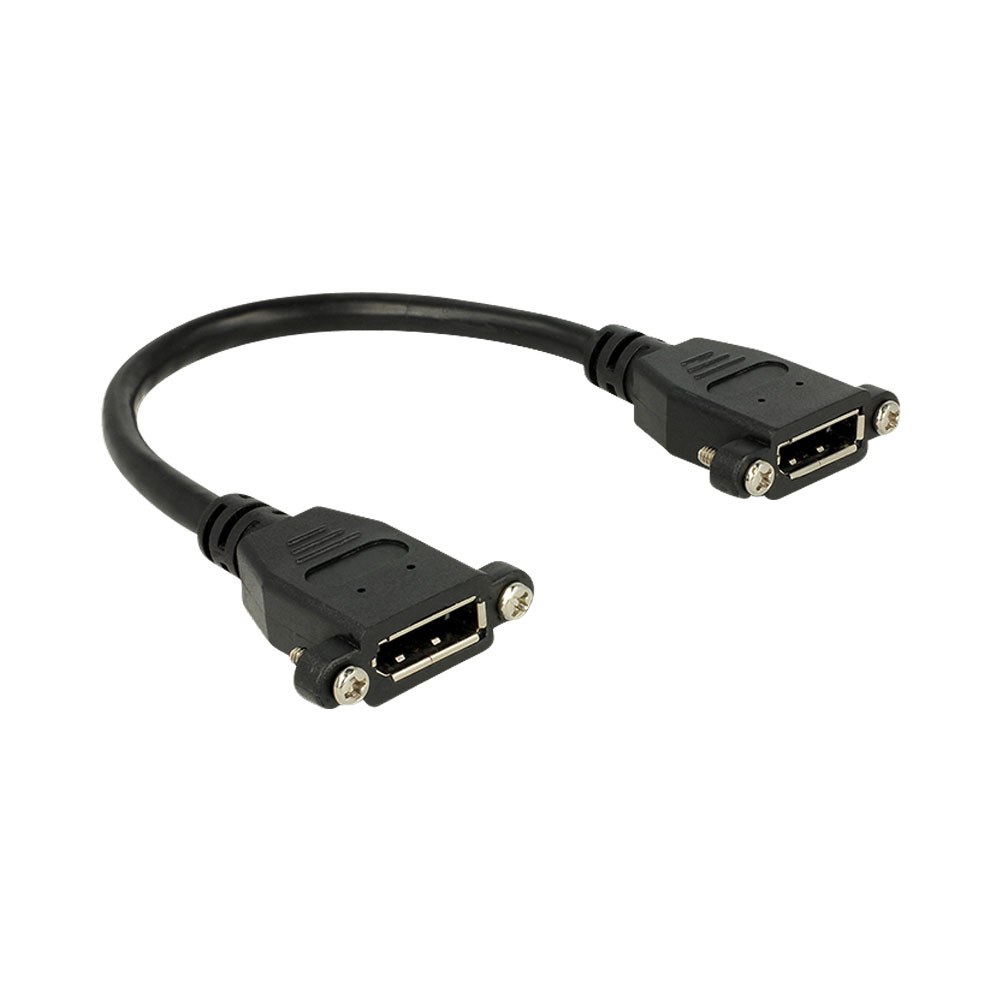

The 85113 provides a flush panel-mount DisplayPort female on one end and a standard DisplayPort female on the other, connected by a short 30 AWG cable. It is used to install a DisplayPort port in a custom enclosure, rack panel or desk surface — the panel-mount connector fastens with #4-40 UNC screws through an 18 × 7mm cutout. Pin 20 is connected (3.3V auxiliary power), enabling hot-plug detection and EDID communication. Supports the full DisplayPort 1.2 bandwidth of 21.6 Gb/s for resolutions up to 3840 × 2160 at 60Hz, plus audio transport.

Key features

• DisplayPort 1.2 female to panel-mount DisplayPort female
• Supports 4K (3840 × 2160) at 60Hz
• Up to 21.6 Gb/s data transfer rate
• Pin 20 connected — hot-plug detection and EDID support
• Gold-plated connectors
• Panel fastening: #4-40 UNC screws, 27mm pitch
• Transfers audio and video signals

Specifications

• Connector A: DisplayPort 20-pin female
• Connector B: DisplayPort 20-pin female, panel-mount
• Standard: DisplayPort 1.2
• Max resolution: 3840 × 2160 @ 60Hz
• Bandwidth: Up to 21.6 Gb/s
• Mounting hole: ~18 × 7mm, screw pitch ~27mm, #4-40 UNC
• Cable gauge: 30 AWG
• Cable diameter: ~6mm
• Contacts: Gold-plated
• Part number: 85113
