Delock USB 3.1 PDType-A Female to14-Pin

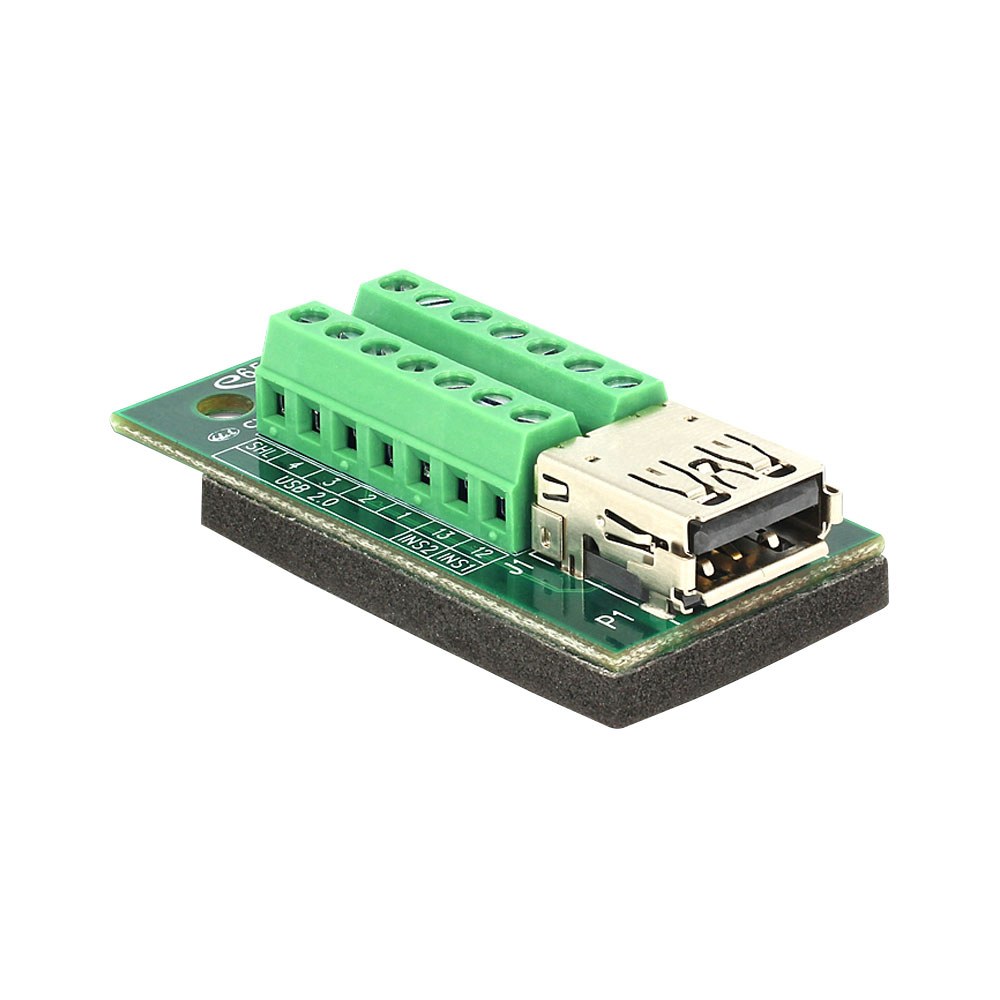

Delock 65562 — USB 3.0/3.1 Power Delivery Type-A female to 14-pin screw terminal block adapter, exposing all USB 3.1 signal, power and ground lines for custom or industrial wiring.

USB 3.1 carries fourteen lines — VBUS, D+, D-, SSTX+, SSTX-, SSRX+, SSRX-, multiple ground and drain connections — all broken out to individually addressable screw terminals at 3.81mm pitch. The PD (Power Delivery) capable Type-A socket supports higher current applications. An anti-slip isolating pad on the underside stabilises the adapter on workbenches and circuit boards. Larger footprint than the 10-pin USB 3.0 variant (65370) to accommodate the additional lines.

Key features

• USB 3.0/3.1 PD Type-A female connector
• 14-pin screw terminal block breakout
• 3.81mm terminal pitch
• Anti-slip isolating pad on underside
• Exposes all USB 3.1 signal, power and ground lines

Specifications

• Connector A: USB 3.0/3.1 PD Type-A female
• Connector B: 14-pin terminal block
• Terminal pitch: 3.81mm
• Dimensions (L × W × H): 53 × 30 × 14mm
• Part number: 65562
