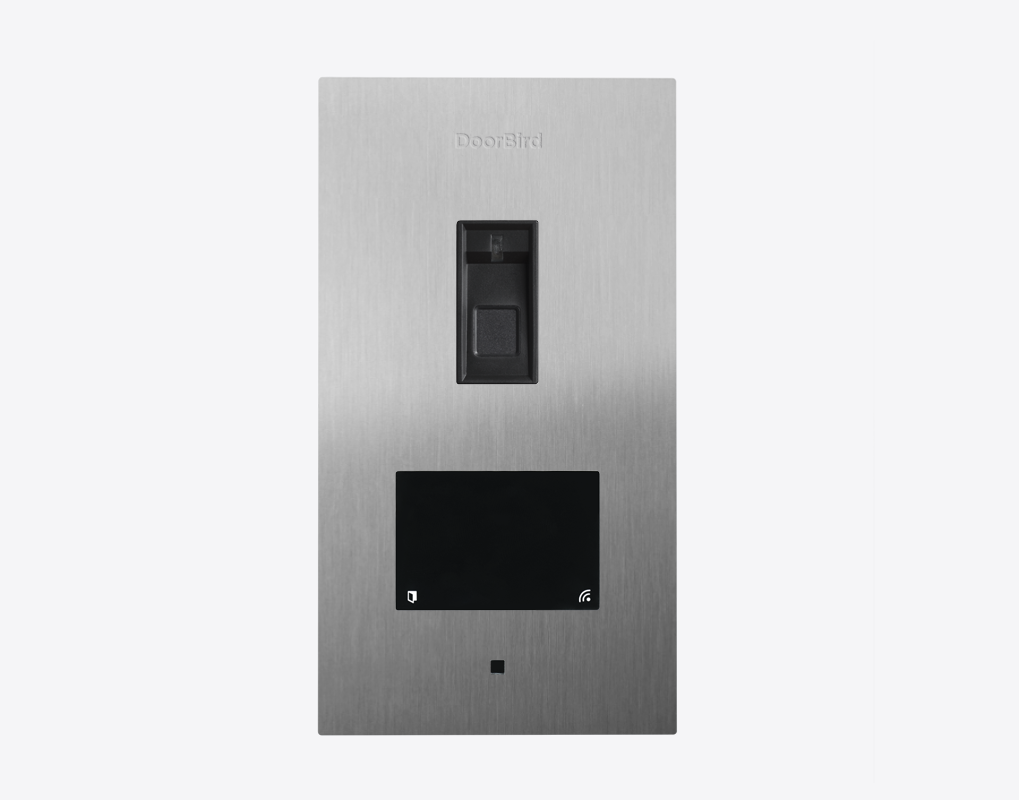

DoorBird A1122 - Flush-mount IP Access Control Device with Fingerprint Reader

The DoorBird A1122 is a compact, IP-based access control device designed for secure entry management in locations where IP video door stations are unsuitable. Featuring advanced fingerprint recognition, versatile connectivity, and robust security, it is ideal for back and side doors, garages, storage rooms, and more.

Key Features

• Stainless steel V2A, brushed finish
• Flush-mount housing included
• WiFi and LAN connection with Power over Ethernet (PoE) support
• Fingerprint sensor by Fingerprint Cards AB
• 125 KHz and 13.56 MHz RFID reader
• Two freely configurable bistable switching relays
• Integrated tamper sensor for real-time alarm notifications
• Wiegand interface for integration with existing access or alarm systems
• Supports elevator control and multi-door management with DoorBird I/O Door Controller A1081
• Remote configuration via free DoorBird app or web-based admin tool

Product Description

The DoorBird A1122 is a stand-alone IP access control device designed for secure access where installing an IP video door station is impractical. Its compact design allows easy flush-mount installation on door frames for back and side doors, garages, storage and packing rooms, bicycle and machine rooms, and underground garages.

The fingerprint reader includes a locking mechanism that temporarily disables the system after multiple unauthorised attempts, preventing manipulation. It can securely trigger a detached relay on a paired DoorBird I/O Door Controller A1081, enabling control of up to three additional gates, doors, or elevators remotely.

Connectivity options include WLAN and LAN with Power over Ethernet (PoE) support for simplified installation. The device operates locally even if the internet connection fails. Integrated software requires no additional hardware and supports HTTP(S) calls for integration with third-party home and building automation systems.

All settings, including schedules, access validities, and actions for fingerprints and RFID transponders, can be configured remotely via the DoorBird app or web dashboard (https://webadmin.doorbird.com).

Fingerprint Reader Features

• Touch sensor with RGB status LED
• Configurable via app or web dashboard
• 1,000 times more secure than a 4-digit PIN code
• Manipulation prevention system with event history and timestamps
• Eliminates risks of lost, stolen, or forgotten keys
• Unique fingerprint identification prevents unauthorised use of PIN codes or RFID key fobs
• Supports up to 50 fingerprint templates
• Personalised time frames and access actions

Specifications

• GTIN/EAN: 4260423872790
• Part Number (P/N): 423872790
• Material: Stainless steel V2A, brushed finish
• Network: WiFi / LAN (PoE capable)
• Fingerprint Sensor: Fingerprint Cards AB
• RFID Frequencies: 125 KHz and 13.56 MHz
• Relays: 2 bistable, freely configurable
• Interfaces: Wiegand output, HTTP(S) for third-party integration
• Power Supply: PoE or 15 VDC
