Generic PowerSolutionsEasyFiber

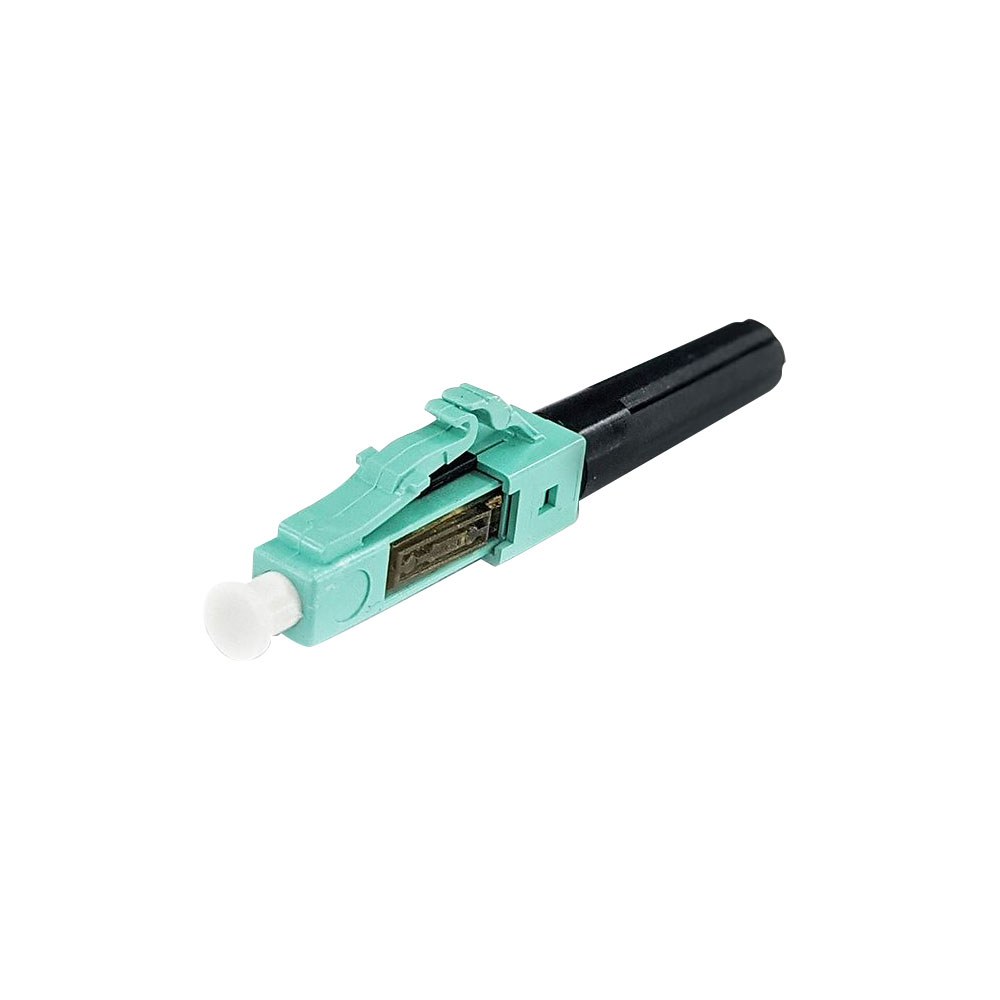

Generic Power Solutions EasyFiber EF-CON-MM-LC — LC simplex field-assembly fibre connector for 50/125µm OM3/OM4 multimode cable in aqua, requiring no epoxy, crimping, or polishing — and no proprietary tools.

The EasyFiber field-assembly connector uses a pre-polished ferrule and a built-in locking mechanism to terminate fibre optic cable on site without specialised equipment. A built-in verification window confirms proper strand insertion before locking, and a self-centering alignment groove guides the fibre into position. Compatible with 250µm, 900µm, and 2.0mm jacketed cable including distribution and zip-cord formats. Also works with OS1/OS2 single mode cable.

Key features

• LC type connector — simplex
• Pre-polished ferrule for UPC connections
• No epoxy, crimping, or polishing required
• No proprietary tools required
• Built-in verification window for strand insertion confirmation
• Self-centering alignment groove
• Compatible with OM2/OM3/OM4 multimode and OS1/OS2 single mode cable
• Suits 250µm, 900µm, and 2.0mm cable including distribution and zip-cord

Specifications

• Model: EF-CON-MM-LC
• Connector type: LC simplex
• Polishing: UPC (pre-polished)
• Fibre compatibility: OM2/OM3/OM4 multimode, OS1/OS2 single mode
• Cable sizes: 250µm, 900µm, 2.0mm
• Colour: Aqua
