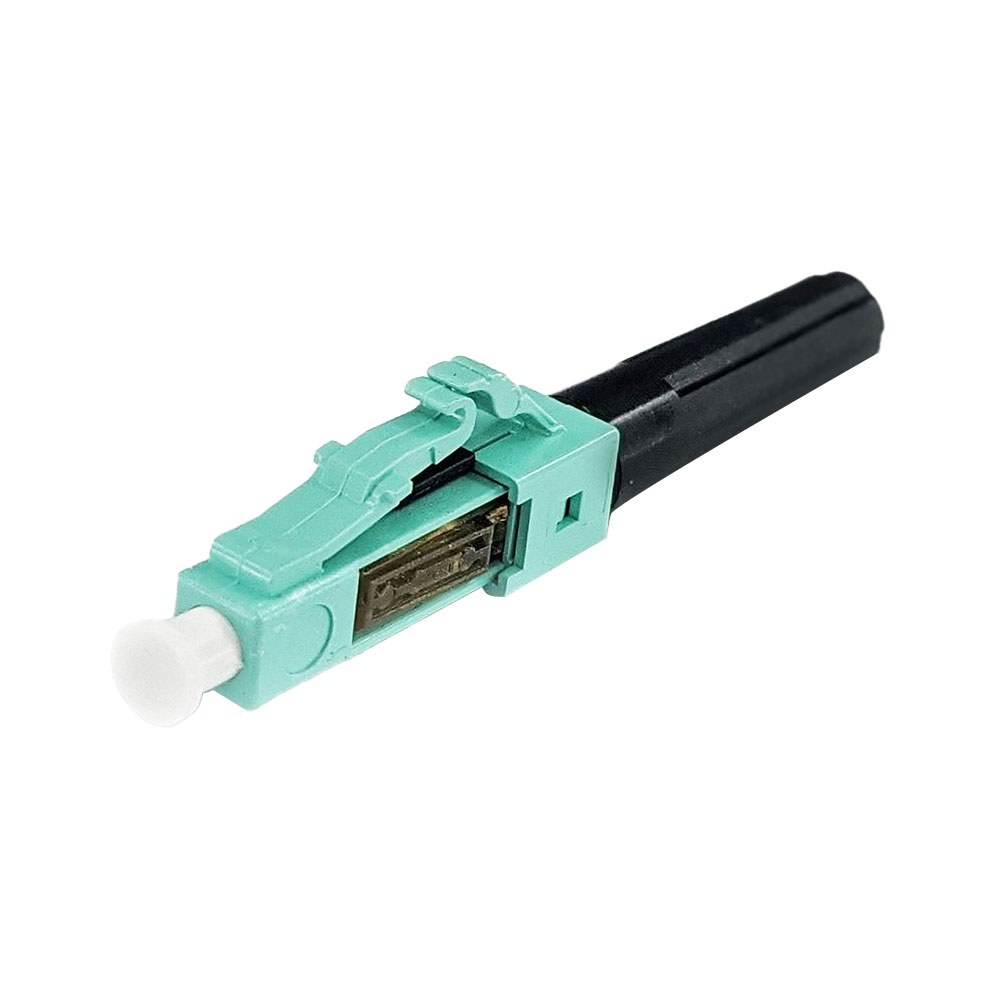

Generic Power Solutions EasyFiber EF-CONMM-LCZ — LC simplex field-assembly fibre connector for 50/125µm OM3/OM4 multimode zipcord cable in aqua, requiring no epoxy, crimping, or polishing — and no proprietary tools.

The EF-CONMM-LCZ is the zipcord-optimised variant of the EasyFiber LC simplex field-assembly connector, suited to duplex zip-cord cable formats common in patch lead fabrication. The pre-polished ferrule and built-in locking mechanism allow on-site termination without specialised equipment. A built-in verification window confirms strand insertion, and a self-centering groove guides the fibre into position. Also compatible with OS1/OS2 single mode cable and 250µm/900µm buffered fibre.

Key features

• LC type connector — simplex (zipcord variant)
• Pre-polished ferrule for UPC connections
• No epoxy, crimping, or polishing required
• No proprietary tools required
• Built-in verification window for strand insertion confirmation
• Self-centering alignment groove
• Compatible with OM2/OM3/OM4 multimode and OS1/OS2 single mode cable
• Suits 250µm, 900µm, and 2.0mm cable including zip-cord formats

Specifications

• Model: EF-CONMM-LCZ
• Connector type: LC simplex (zipcord)
• Polishing: UPC (pre-polished)
• Fibre compatibility: OM2/OM3/OM4 multimode, OS1/OS2 single mode
• Cable sizes: 250µm, 900µm, 2.0mm (zip-cord optimised)
• Colour: Aqua
