Generic PowerSolutionsEasyFiber

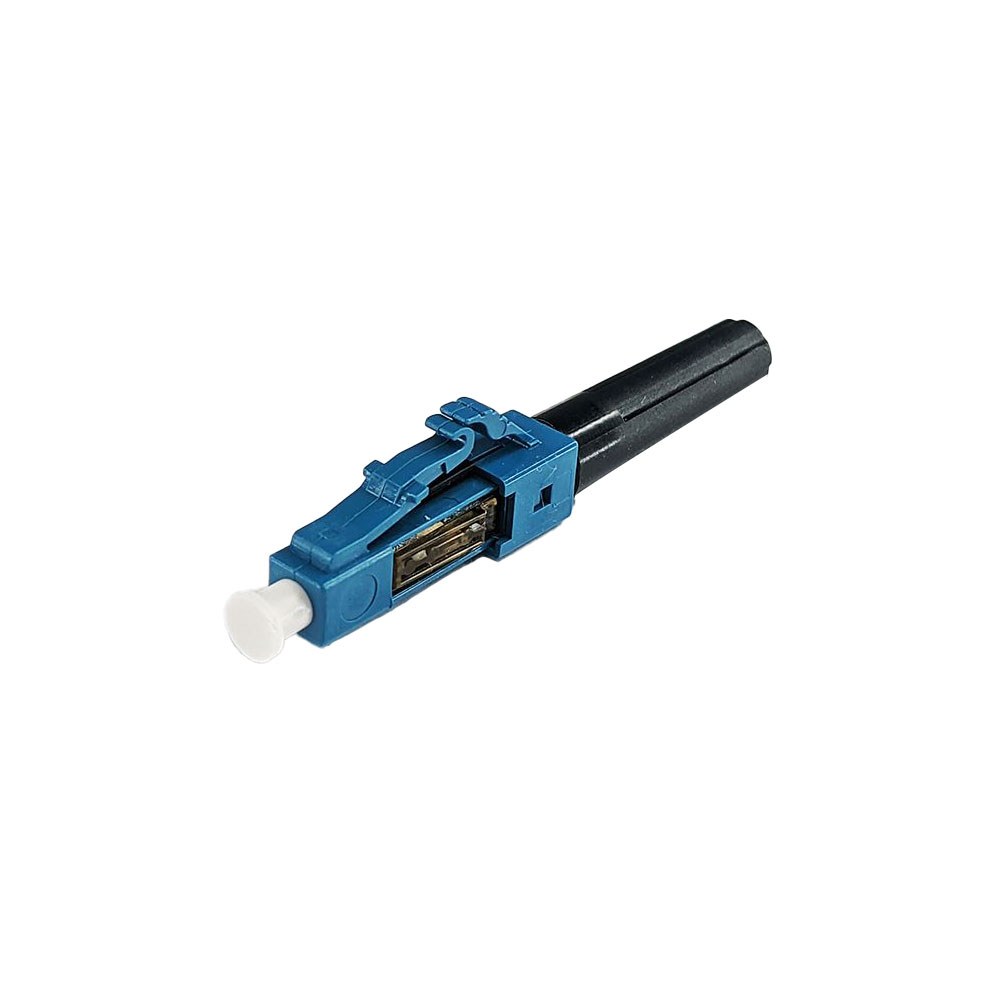

Generic Power Solutions EasyFiber EF-CON-SM-LCZ — LC simplex field-assembly fibre connector for OS1/OS2 single mode cable in blue, requiring no epoxy, crimping, or polishing — and no proprietary tools.

Blue is the standard colour coding for OS1/OS2 single mode UPC (Ultra Physical Contact) connections. The EF-CON-SM-LCZ terminates single mode fibre on site without any specialised equipment, using a pre-polished ferrule and a built-in click-lock mechanism. A verification window confirms strand insertion and a self-centering alignment groove guides the fibre into position. Compatible with a range of cable formats including 250µm, 900µm, and 2.0mm jacketed single mode and multimode cable.

Key features

• LC type connector — simplex (single mode)
• Pre-polished for UPC connections
• No epoxy, crimping, or polishing required
• No proprietary tools required
• Built-in verification window for strand insertion confirmation
• Self-centering alignment groove
• Compatible with OS1/OS2 single mode and OM2/OM3/OM4 multimode cable
• Suits 250µm, 900µm, and 2.0mm cable including distribution and zip-cord

Specifications

• Model: EF-CON-SM-LCZ
• Connector type: LC simplex
• Polishing: UPC (pre-polished)
• Primary fibre type: OS1/OS2 single mode
• Also compatible with: OM2/OM3/OM4 multimode
• Cable sizes: 250µm, 900µm, 2.0mm
• Colour: Blue (single mode UPC standard)
