Generic PowerSolutionsEasyFiber

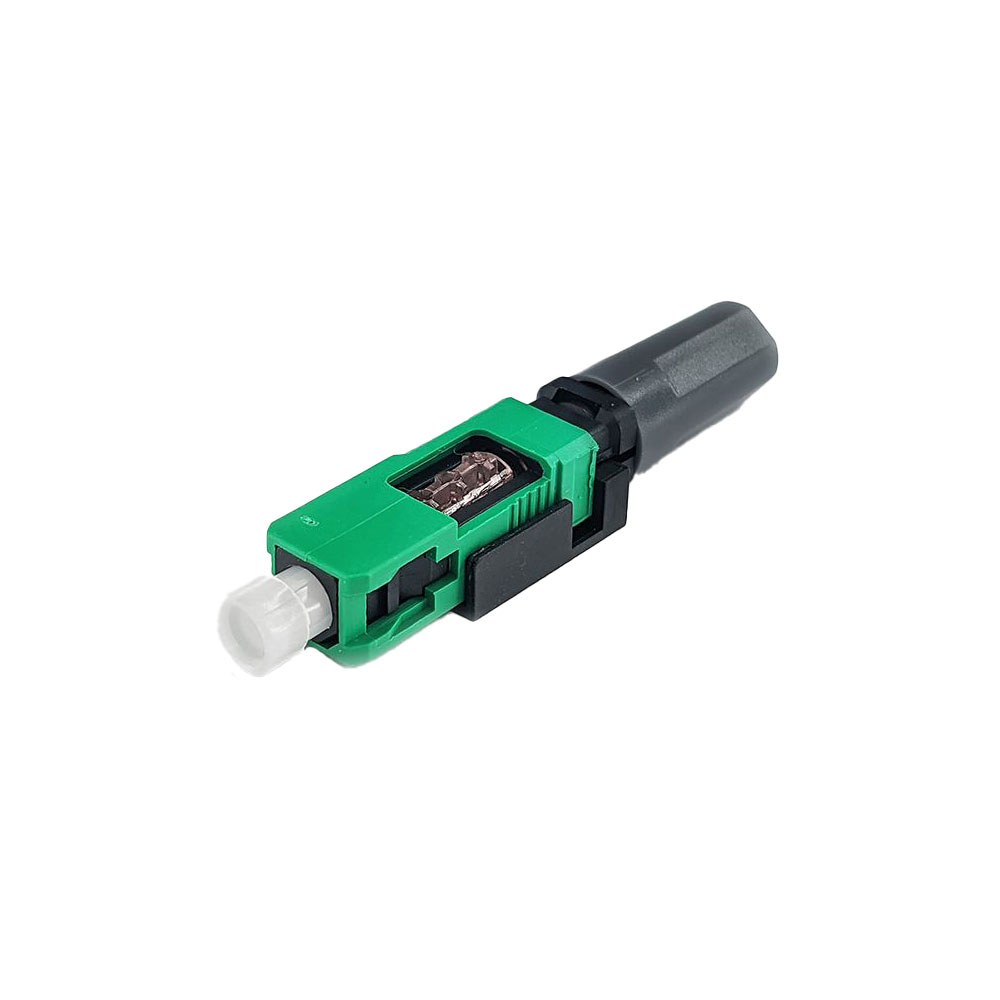

Generic Power Solutions EasyFiber EF-CON-SM-SCA — SC APC (angled physical contact) field-assembly fibre connector for OS2 single mode cable in green, requiring no epoxy, crimping, or polishing — and no proprietary tools.

Green SC connectors are the international standard colour for APC (8° angled) single mode connections. The APC polish reduces back-reflection to below −60dB, making these connectors essential for CATV, FTTx, and long-haul WDM applications where Rayleigh back-scatter degrades signal quality. Field-termination requires no specialised equipment — a pre-polished ferrule, built-in verification window, and self-centering groove enable fast, reliable on-site termination. Accommodates cable from 250µm up to 3.0mm.

Key features

• SC APC connector — angled physical contact (8°)
• Pre-polished for APC connections (back-reflection < −60dB)
• No epoxy, crimping, or polishing required
• No proprietary tools required
• Built-in verification window for strand insertion confirmation
• Self-centering alignment groove
• Compatible with OS1/OS2 single mode and OM2/OM3/OM4 multimode cable
• Suits 250µm, 900µm, 2.0mm, and 3.0mm cable

Specifications

• Model: EF-CON-SM-SCA
• Connector type: SC APC simplex
• Polish angle: 8° APC
• Back-reflection: < −60dB
• Primary fibre type: OS1/OS2 single mode
• Cable sizes: 250µm, 900µm, 2.0mm, 3.0mm
• Colour: Green (SC APC standard)

Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
