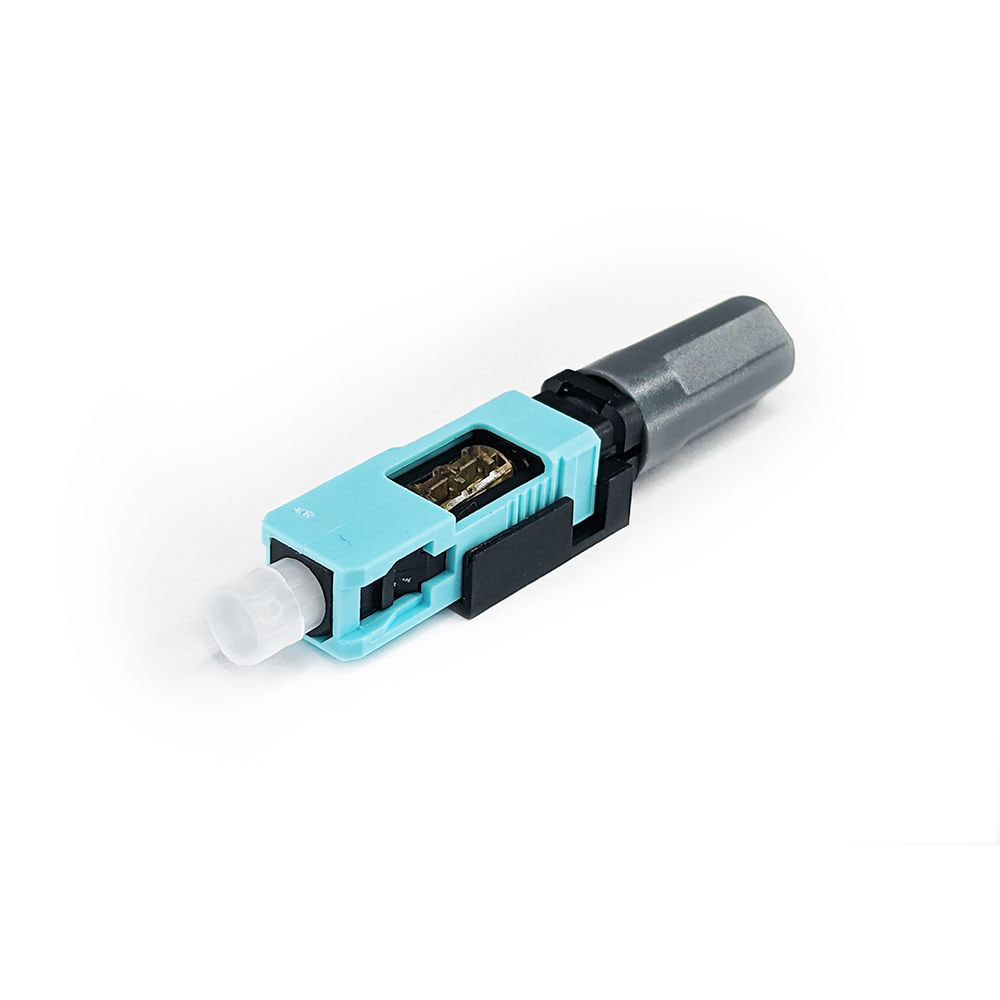

Generic Power Solutions EasyFiber EF-CON-MM-SC — SC simplex field-assembly fibre connector for OM3/OM4 multimode (and OS1/OS2 single mode) cable in aqua, requiring no epoxy, crimping, or polishing — and no proprietary tools.

The SC simplex EasyFiber connector is field-terminated without specialised tools. It is pre-polished for both UPC (standard) and APC (angled) connections, accommodating both standard and angled-polish applications from a single connector body. Compatible with a wide range of cable sizes from 250µm buffered fibre up to 3.0mm jacketed cable including distribution and zipcord formats. A built-in verification window and self-centering groove make termination fast and reliable on site.

Key features

• SC type connector — simplex
• Pre-polished for UPC and APC connections
• No epoxy, crimping, or polishing required
• No proprietary tools required
• Built-in verification window for strand insertion confirmation
• Self-centering alignment groove
• Compatible with OM2/OM3/OM4 multimode and OS1/OS2 single mode cable
• Suits 250µm, 900µm, 2.0mm, and 3.0mm cable including distribution and zip-cord

Specifications

• Model: EF-CON-MM-SC
• Connector type: SC simplex
• Polishing: UPC and APC (pre-polished)
• Fibre compatibility: OM2/OM3/OM4 multimode, OS1/OS2 single mode
• Cable sizes: 250µm, 900µm, 2.0mm, 3.0mm
• Colour: Aqua

Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
