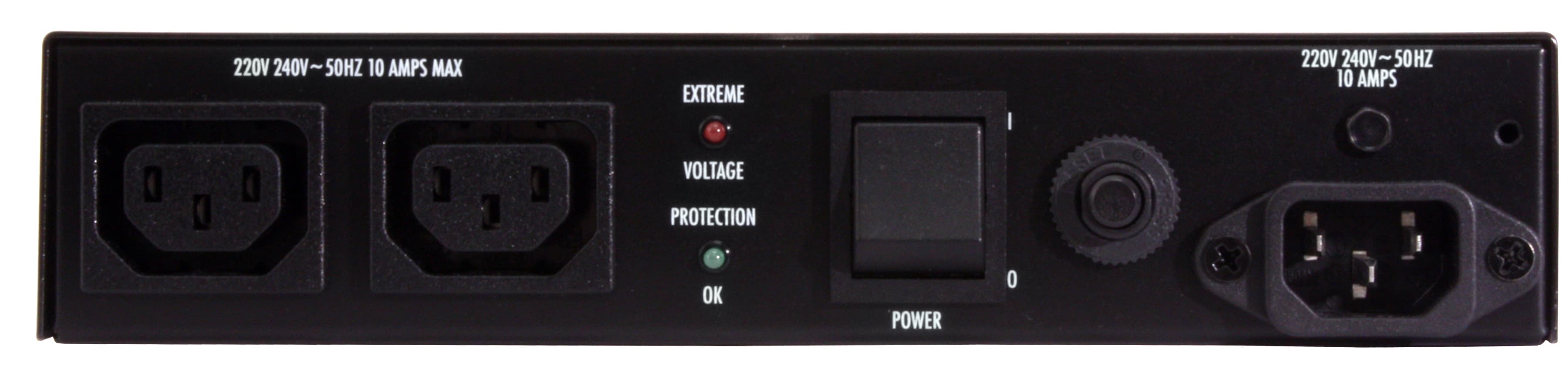

Furman AC210-A-ECompact PowerConditioner

Furman AC210-A-E - Compact Power Conditioner with Auto-Resetting Voltage Protection

The Furman AC210-A-E is a compact, high-performance power conditioner featuring advanced Series Multi-Stage Protection (SMP) technology. Designed to safeguard your audio and video equipment from voltage spikes and electrical noise, this unit ensures clean, reliable power for superior performance and longevity.

Key Features

• Exclusive Furman SMP Technology delivers the highest level of surge and spike protection available
• Linear Filtering Technology (LiFT) provides clean AC power for unmatched audio and video clarity
• Auto-reset Extreme Voltage Shutdown (EVS) circuitry detects dangerous voltage irregularities and safely powers down the unit and connected equipment
• LED indicators display power quality and operational status
• 10 amp rating with built-in circuit breaker for enhanced protection
• Zero ground contamination circuitry protects sensitive video circuits
• Compact chassis design (1.75" H x 5" W x 8.5" D) ideal for mounting behind flat-screen TVs or in remote locations

Product Overview

Furman’s Series Multi-Stage Protection (SMP) circuit combines Linear Filter Technology (LiFT) and Extreme Voltage Shutdown (EVS) to provide the world’s most advanced transient voltage surge suppression. Unlike traditional surge suppressors that sacrifice components after multiple voltage spikes, SMP safely absorbs, clamps, and dissipates damaging transients without the need for repairs or downtime.

The SMP technology offers an unparalleled clamping voltage of 376VAC peak and 275VAC RMS, even when subjected to multiple 6000VAC - 3000 Amp surges, exceeding professional standards. LiFT ensures linear AC filtering without resonant peaking or ground leakage, preventing added noise and protecting digital equipment from data loss or damage.

EVS circuitry protects against accidental extreme voltage connections by shutting off power until conditions return to safe levels. The AC210-A-E’s compact and lightweight design makes it perfect for discreet installation in home theatre setups.

Specifications

AC Current Capacity	Input - 10 Amp capacity required Output - 10 Amps RMS (both outlets combined)
Linear Noise Attenuation	> 40 dB @ 100 kHz > 50 dB @ 500 kHz (Linear attenuation curve from 0.05 to 100 ohms line impedance)
Transient Voltage Surge Suppression	230 VAC - Series Multi-Stage Protection Non-sacrificial with zero ground contamination 376V peak clamping @ 6000V 3000A input Extreme Voltage Shutdown (>135 VAC)
Extreme Voltage Shutdown	275 VAC (Auto-Reset)
Dimensions	1.75" H x 5" W x 8.5" D
Weight	3 lbs.
Safety Agency Listing	CE
