Goldtool MultiRemote CableTester

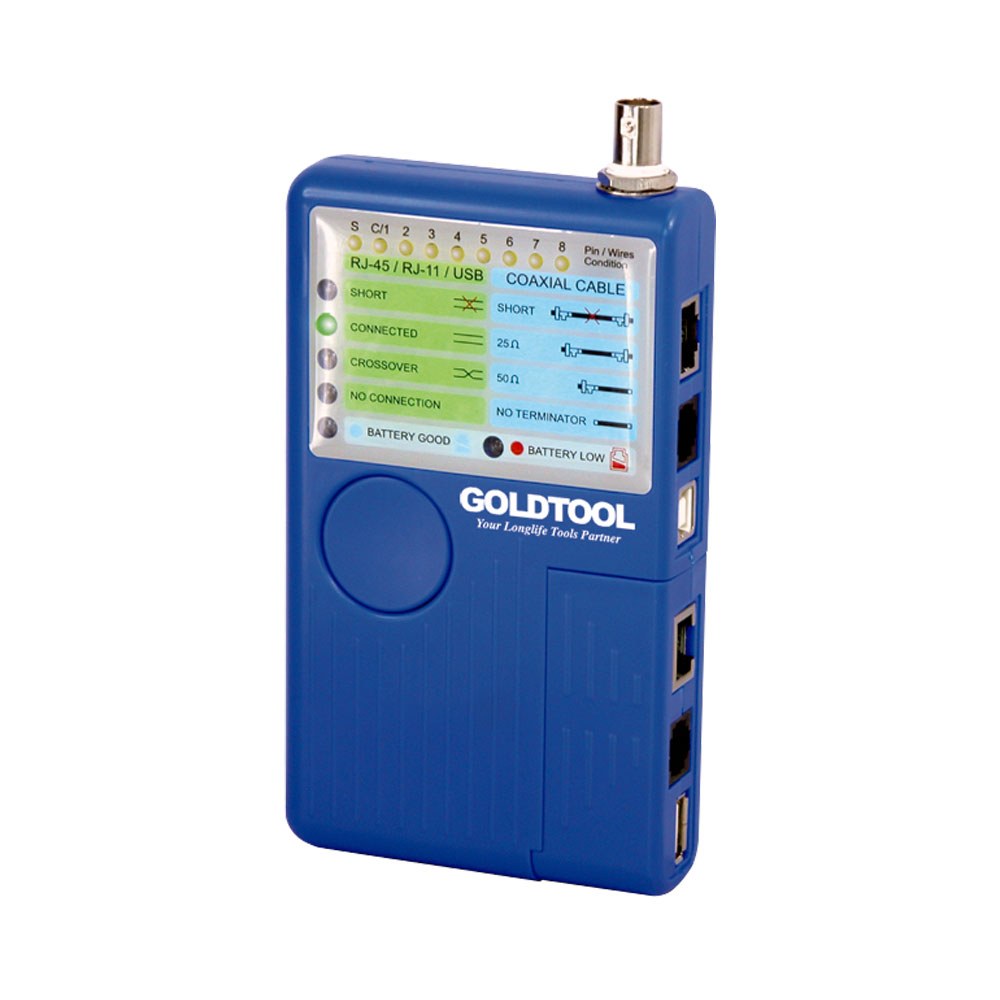

Goldtool TCT-180 — multi remote cable tester for RJ-45, RJ-11 and BNC coax cables, with LED-based fault display and support for cables up to 180m.

The TCT-180 tests open and short circuits, displays connected wire pairs, indicates missing terminators, and detects wrong or non-parallel wiring connections. It also performs Ethernet 10base-2 terminator value detection on BNC coax. The LED display provides clear per-pair status at a glance, making it quick to locate faults in structured cabling, telephone wiring and coax runs. Powered by a single 9V alkaline battery.

Key features

• Tests RJ-45, RJ-11 and BNC coax cables
• Open and short circuit detection
• Wrong connection / non-parallel wiring display
• No connection / no terminator indication
• Ethernet 10base-2 terminator value detection
• Easy-to-read LED display per wire pair
• Maximum cable length: 180m
• FCC Class B and CE Class B certified

Specifications

• Cable types: RJ-45, RJ-11, BNC coax
• Max cable length: 180m
• Power: 9V alkaline battery
• Certifications: FCC Class B, CE Class B
