( 01 / 01 )HanaHANA-EH

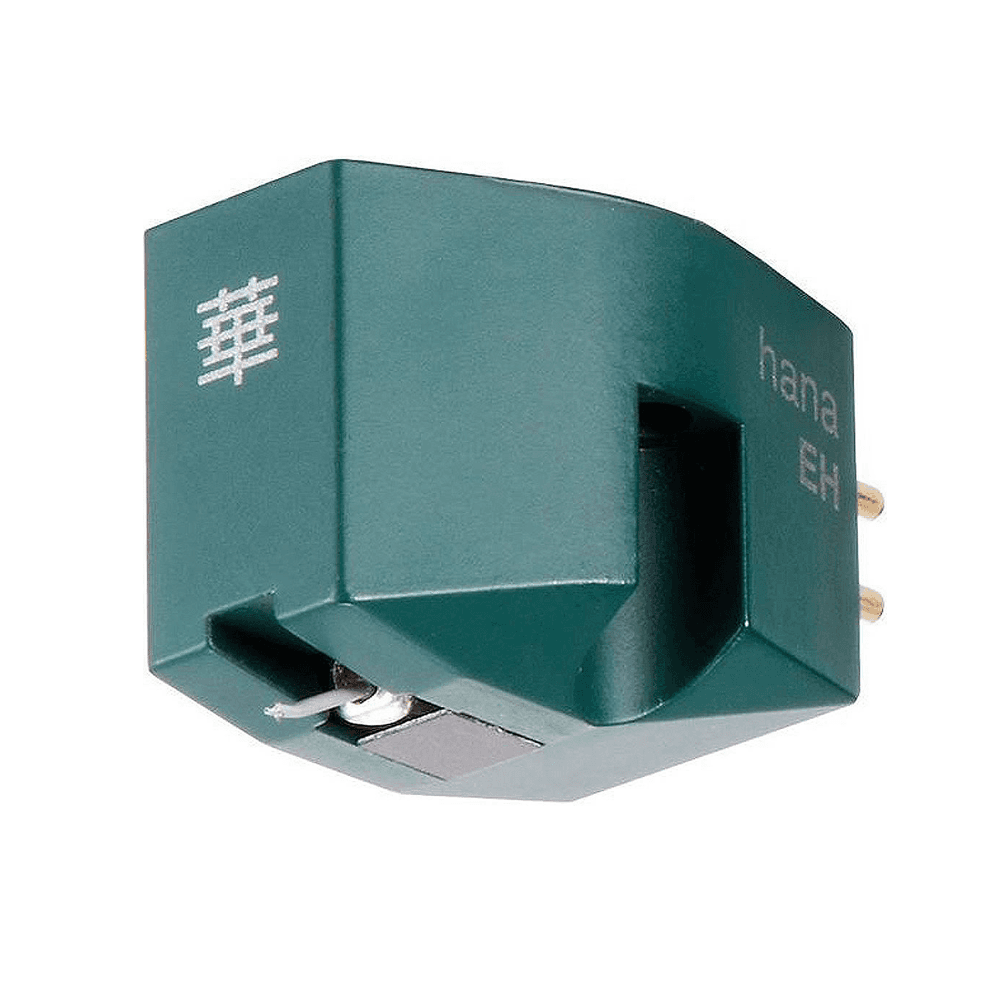

Hana EH CartridgeMC Moving CoilCartridge
R 8 990
AvailableQuantity
1
R 8 990
12 monthly paymentsfrom R 749 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byMonday, 28 September
Estimated from today, excluding weekends.Hana EH Cartridge - MC Moving Coil Cartridge
The Hana EH Moving Coil (MC) cartridge delivers brilliant and gorgeous sound with high rigidity aluminium cantilevers, Alnico 9 magnets, and cross-shaped armatures. Designed with an elliptical stylus tip, it offers exceptional audio performance for vinyl enthusiasts.
Key Features
- Elliptical nude synthetic stylus for precise tracking
- High rigidity aluminium cantilever
- Alnico 9 magnets and cross-shaped armatures for superior sound quality
- Output level: 2mV/1kHz (EH model)
- Vertical tracking force: 2g
- Frequency response: 15 - 25,000 Hz
- Channel separation: 22dB/1kHz
- Lightweight design at 5g with moss green body colour
Specifications
- Stylus: Elliptical nude synthetic
- Cantilever: Aluminium
- Output level: 2mV/1kHz (EH) or 0.5mV/1kHz (EL)
- Output balance: <2dB/1kHz
- Vertical tracking force: 2g
- Trackability: 60μm/2g
- Channel separation: 22dB/1kHz
- Frequency response: 15 - 25,000 Hz
- Impedance: 130Ω/1kHz (EH) or 30Ω/1kHz (EL)
- Suggested load impedance: 47kΩ (EH) or >400Ω (EL)
- Cartridge weight: 5g
- Body colour: Moss green
