( 01 / 01 )HanaHANA-ML
Hana ML CartridgeMC Moving CoilCartridge
Contact for availability

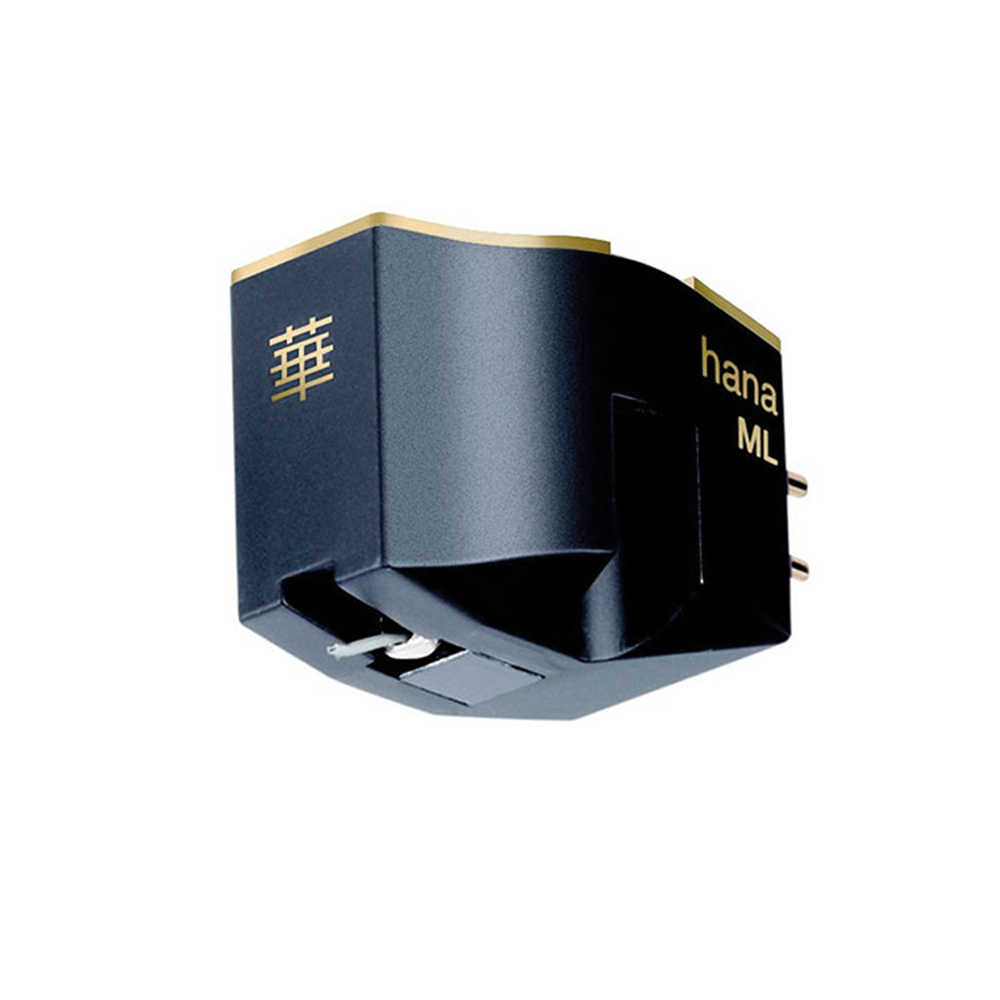

Sold outHana ML Cartridge - MC Moving Coil Cartridge
The Hana ML is a premium low output moving coil (MC) cartridge featuring a microline nude diamond stylus tip. It delivers exceptional sound quality and precise, musical playback, making it ideal for audiophiles seeking high-fidelity vinyl reproduction.
Key Features
- Low output moving coil (MC) cartridge
- Microline nude diamond stylus for detailed sound reproduction
- Wide frequency response from 12 Hz to 45,000 Hz
- Output voltage of 0.4 mV at 1 kHz
- Excellent channel separation of 30 dB at 1 kHz
- Low output balance variation < 1 dB at 1 kHz
- Tracking force of 2 grams for optimal record contact
- Aluminium alloy cantilever for durability and performance
- Lightweight design at 9.5 grams
Specifications
- Type: Low output moving coil (MC) cartridge
- Frequency response: 12 to 45,000 Hz
- Output voltage: 0.4 mV (1 kHz)
- Channel separation: 30 dB (1 kHz)
- Output balance: < 1 dB (1 kHz)
- Tracking force: 2 g
- Coil impedance: 8 ohms
- Load resistance: > 100 ohms
- Compliance: 10 x 10-6 cm/dyne
- Stylus: Nude microline
- Cantilever: Aluminium alloy
- Weight: 9.5 g
