CYP CLUX-11CD HDMIto TOSLINK andAnalogue

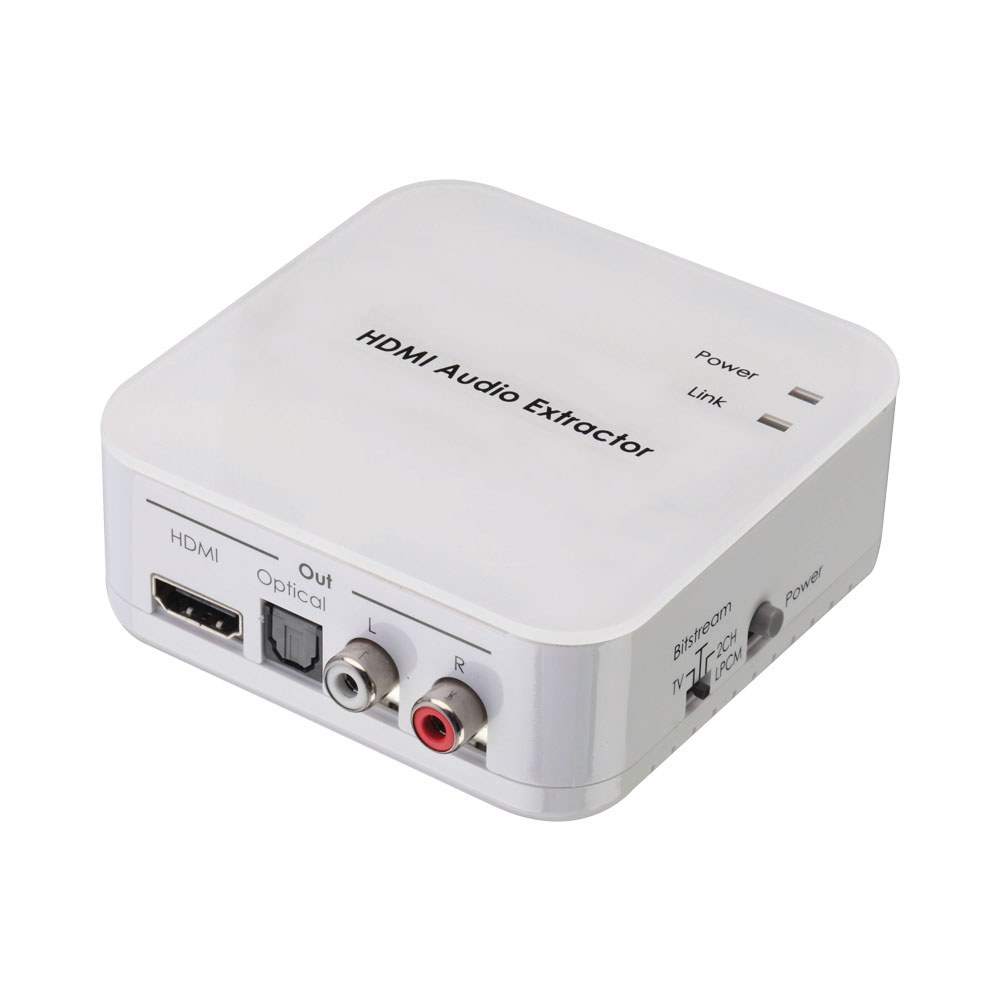

CYP CLUX-11CD HDMI to TOSLINK and Analogue Audio Extractor — extracts embedded audio from an HDMI source and outputs it as TOSLINK optical or stereo analogue, while passing HDMI through to the display.

The CLUX-11CD splits the audio from an HDMI source and delivers it simultaneously as a TOSLINK optical signal and a stereo analogue output, making it ideal for connecting legacy audio systems or headphone amplifiers to modern HDMI sources. Supports sampling rates up to 192kHz and High-Bit-Rate audio. Compliant with HDMI, HDCP 1.2, and DVI 1.0.

Key features

• Extracts audio from HDMI to TOSLINK and stereo analogue simultaneously
• HDMI pass-through to display
• HDMI, HDCP 1.2 and DVI 1.0 compliant
• HDMI audio sampling rates up to 192kHz
• Supports High-Bit-Rate (HBR) audio
• Built-in Audio EDID switching
• Max HDMI cable length 15m at 1080p 8-bit

Specifications

• Input: HDMI
• Audio outputs: TOSLINK optical, stereo analogue
• HDMI sampling rate: Up to 192kHz
• Optical sampling rate: Up to 48kHz
• HDCP: 1.2
• TMDS clock: 225MHz
