( 01 / 01 )Imix HT40 DP44-S3Diaphragm forHD44-S3

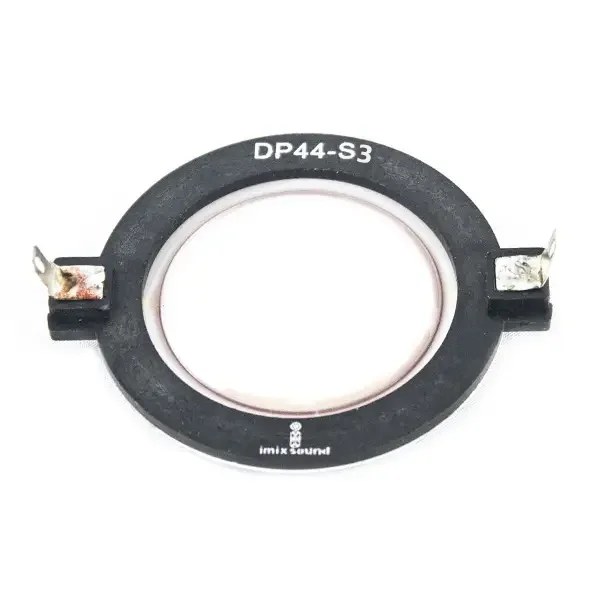

Imix - HT40 DP44-S3 Diaphragm for HD44-S3 - a genuine replacement diaphragm for the Imix HD44-S3 compression driver, restoring full HF output when the original diaphragm is damaged or worn.
The Imix HT40 DP44-S3 is the replacement diaphragm assembly for the Imix HD44-S3 60W compression driver. The diaphragm is the primary vibrating element inside a compression driver — it converts the electrical signal into sound. When a compression driver produces distorted or reduced HF output, or fails entirely, replacing the diaphragm is the standard repair and is significantly more cost-effective than replacing the entire driver unit. This diaphragm is specifically engineered for the HD44-S3 driver and is not interchangeable with other models. Fits directly without modification.
Key features
- Genuine replacement diaphragm for the Imix HD44-S3 compression driver
- Restores full HF output on a failed or distorted driver
- Cost-effective alternative to replacing the complete driver unit
- Direct fit — no modification required
Specifications
- Model: DP44-S3
- Compatible driver: Imix HD44-S3
- Type: Replacement compression driver diaphragm
- Application: Compression driver repair, PA speaker maintenance
Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
( Specifications )
| Impedance | 8 ohms |
| Frequency Response | 20 Hz - 20 kHz |
| Application | Sound Transmission |
| Assembly | Ready to Use |
| Brand | Imix |
| Color | Black |
| Color Variation | Minimal |
| Compatibility Use | PA Systems |
| Compatible Model | HD44-S3 |
| Country of Origin | USA |
| Customizable | No |
| Diameter | 40 mm |
| Diameter Tolerance | ±0.5 mm |
| Driver Type | Dynamic |
