( 01 / 01 )Imix SCM5-BProfessional5-Inch

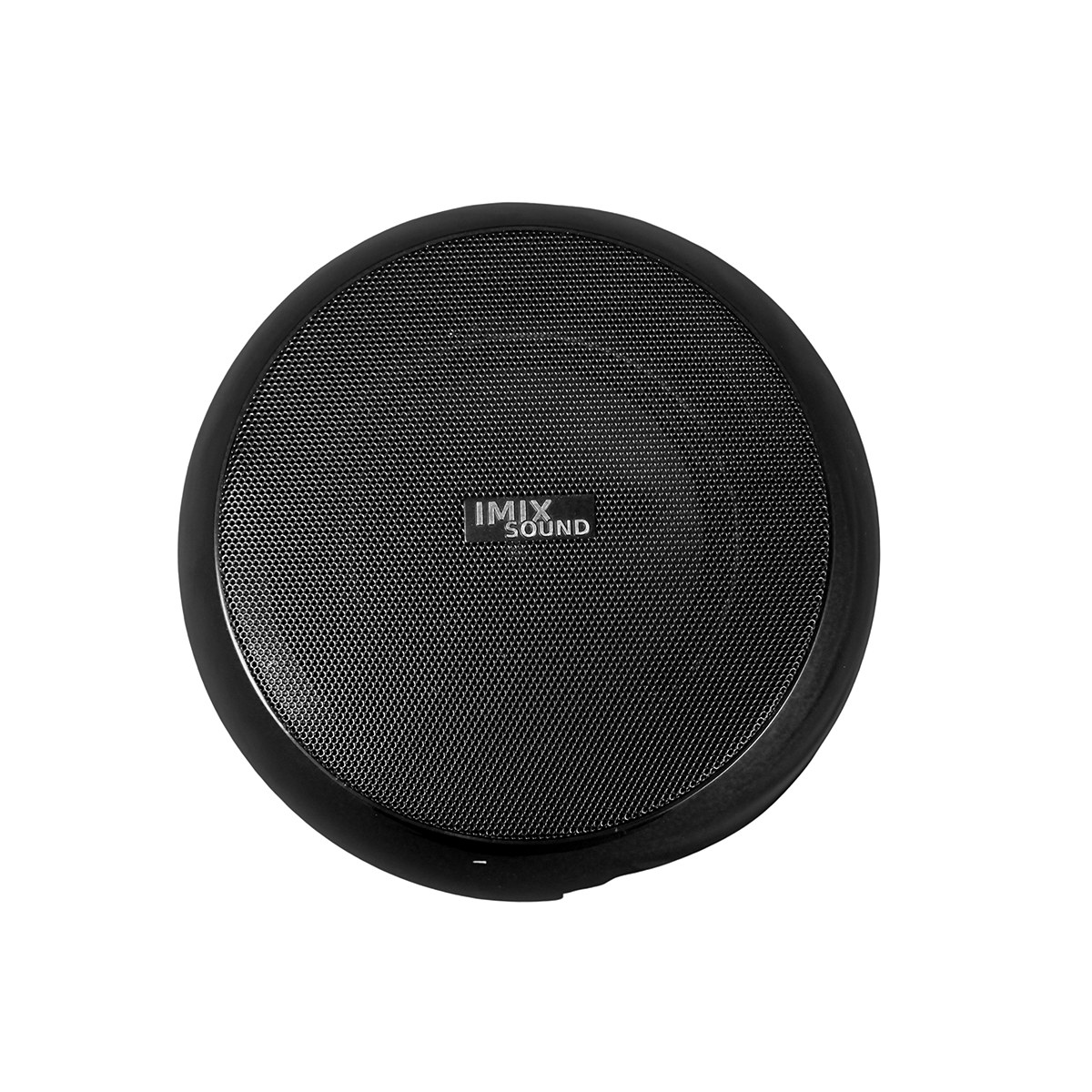

Imix - SCM5-B Professional 5-Inch Surface-Mount Ceiling Speaker (70-100V) - a compact 5-inch surface-mount ceiling speaker with 70V/100V line compatibility for commercial background music and paging in commercial and hospitality environments.
The Imix SCM5-B is a professional 5-inch surface-mount ceiling speaker designed for commercial distributed audio installations using 70V or 100V constant-voltage line systems. Unlike flush in-ceiling speakers that require ceiling void access, the surface-mount design allows installation on solid ceilings, concrete soffits, or any surface where in-ceiling cutting is not practical. The 70-100V line compatibility enables multiple units to be connected across a single amplifier output, distributing audio evenly across large spaces without significant cable loss. Suited to AV integrators, electrical contractors, and facilities managers specifying commercial background music and paging for retail, hospitality, offices, and public spaces where flush mounting is not available.
Surface-mount design for solid ceilings and soffits where flush in-ceiling mounting is impractical
70V/100V constant-voltage line compatible for commercial distributed audio systems
5-inch driver for clear, full-range audio in background music and paging applications
( Specifications )
| Impedance | Multiple options |
| Frequency Range | 80 Hz - 20 kHz |
| Frequency response | Up to 20 kHz |
| Application | Commercial Use |
| Application Area | Auditorium |
| Audio Input | Line level |
| Brand | Imix |
| Cabinet Type | Sealed |
| Color | White |
| Compatible Accessories | Wiring kits |
| Connector Type | Spring clip |
| Crossover frequency | Not specified |
| Customization Options | Available |
| Dimensions | 6.3" diameter |
