JBL CSS8004 8-InchCommercial SeriesCeiling

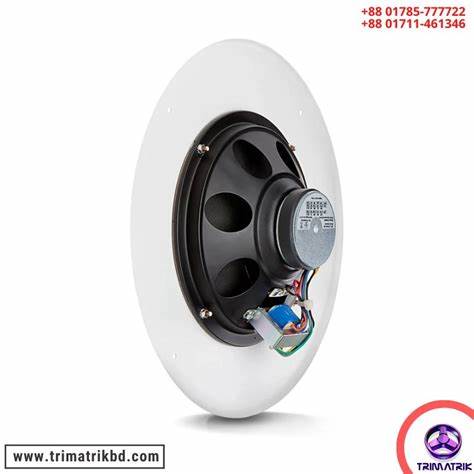

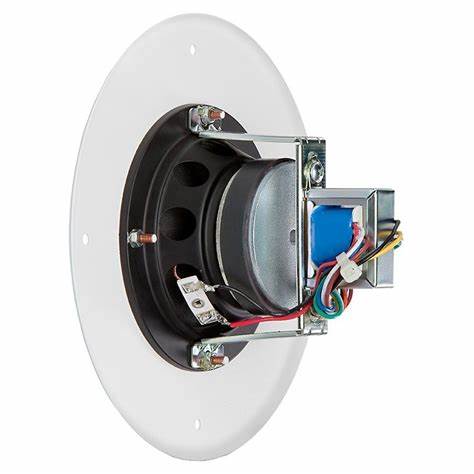

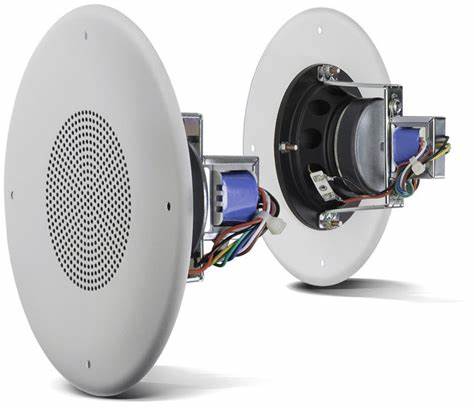

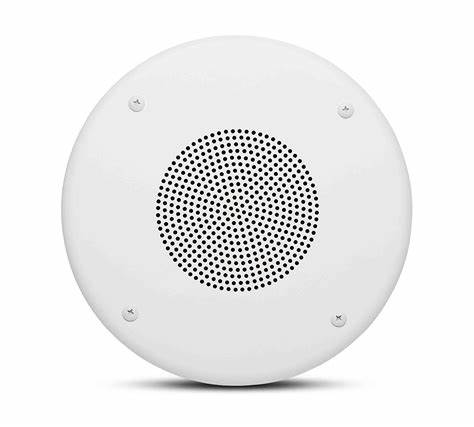

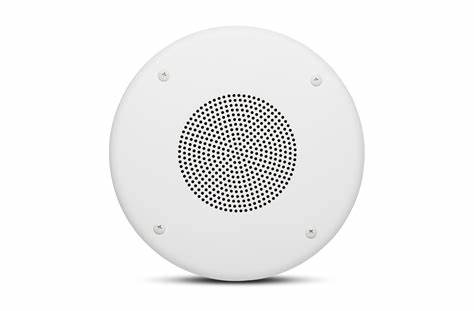

JBL CSS8004 8-Inch Commercial Series Ceiling Speaker

The JBL CSS8004 is a high-performance 8-inch ceiling speaker designed for commercial audio applications. It delivers clear, balanced sound ideal for background music, paging, and public address systems in restaurants, retail stores, hotels, offices, and educational facilities.

Key Features

• 8-inch high-sensitivity polypropylene woofer for excellent sound clarity
• 0.75-inch high-quality tweeter for balanced frequency response
• Wide 120-degree conical coverage angle for broad sound distribution
• Multi-tap transformer with 15W, 30W, and 60W taps at 100V/70V for flexible power handling
• Formed steel backcan enhances sound isolation and durability
• White finish and low-profile grille blend seamlessly into most interiors
• Includes tile rails and C-ring for easy installation in new or retrofit ceilings
• Certified and built for reliable performance in commercial environments

Specifications

• Woofer size: 8 inches (polypropylene)
• Tweeter size: 0.75 inches
• Coverage angle: 120 degrees conical
• Power taps: 15W, 30W, 60W at 100V/70V
• Transformer: Integrated multi-tap
• Backcan: Formed steel for sound isolation
• Finish: White with low-profile grille

What's in the Box

• JBL CSS8004 Ceiling Speaker
• Tile rails
• C-ring mounting bracket
