( 01 / 01 )JBLNCSA2120R-U-EU · NCSA2120R-U-EU
JBL CSA2120 2 x100W CommercialSeries
R 17 990
Limited availabilityQuantity
1
R 17 990
12 monthly paymentsfrom R 1 499 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byThursday, 17 September

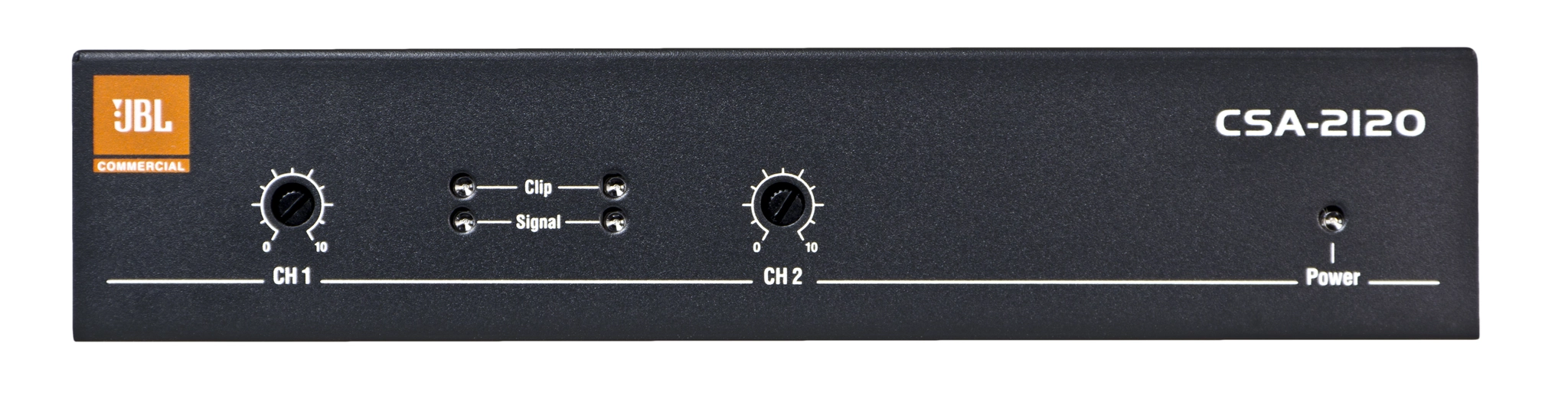

Estimated from today, excluding weekends.JBL CSA2120 - 2 x 100W Commercial Series Amplifier
The JBL NCSA2120R-U-EU Commercial Series Amplifier delivers reliable, high-performance audio for commercial environments such as restaurants, retail stores, conference rooms, and hospitality venues. With 120 watts per channel, it drives multiple loudspeakers with clear, distortion-free sound.
Key Features
- 120W power output per channel (2 channels)
- Supports low impedance and 70V/100V distributed audio systems
- Robust design with sturdy connectors for easy integration
- Front panel controls and remote volume control compatibility
- Multiple input options including RCA and Euroblock connectors
- Energy-saving auto-standby mode for reduced power consumption
- NAB certified for audio clarity and reliability
- Quiet operation in a compact 1U rack-mountable chassis
- Backed by JBL’s renowned durability and audio engineering
Specifications
- Model Number: NCSA2120R-U-EU
- Power Output: 2 x 120W
- Channels: 2
- Impedance Support: Low impedance, 70V/100V distributed systems
- Inputs: RCA, Euroblock connectors
- Mounting: 1U rack-mountable chassis
( Specifications )
| Frequency Response | 20 Hz – 20 kHz (+0.5 dB, −1 dB) |
| Signal-to-Noise Ratio | >100 dB, A-weighted |
| Amplifier Channels | 2 |
| amplifier type | Class D |
| Brand | JBL |
| Bridge Mono Output Power (8 Ohms) | 220 W |
| Certifications | CE, RoHS, CB |
| Chassis Material | Steel |
| Cooling Method | Convection (fanless) |
| Country of Origin | China |
| Damping Factor | >100 |
| Depth | 355 mm |
| DSP Processing | Yes |
| Front Panel Controls | Power, Level (per channel), Channel Select |
